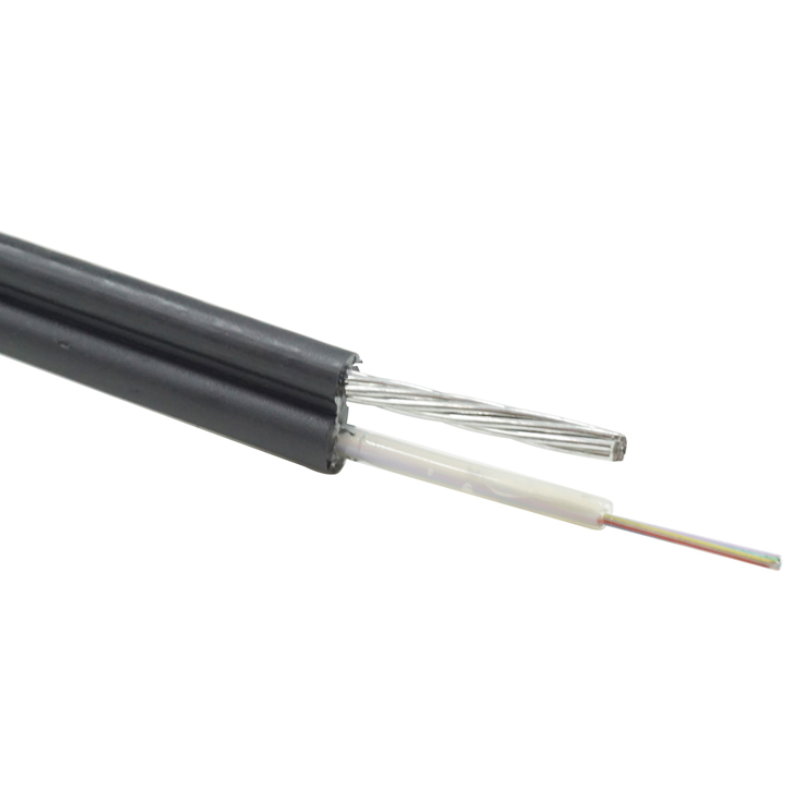

Factory Price Self-supporting Outdoor Amoured Aerial Figure 8 With
Messenger Fiber Optic Cable
Outdoor Fiber Optical Cable adopted to Outdoor distribution.
Outdoor Fiber Optical Cable is suitable for aerial installation
Long distance and local area network communication.
Characteristics:Stainless steel or gaivanized steel self-supporting.
Excellet mechanical and environmental performance.
Optical Characteristics
| Items | Unit | Specification |
| G652D |
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 |
| Cladding Diameter | um | 124.8±0.7 |
| Cladding Non-Circularity | % | ≤0.7 |
| Core-Cladding Concentricity Error | um | ≤0.5 |
| Coating Diameter | um | 245±5 |
| Coating Non-Circularity | % | ≤6.0 |
| Cladding-Coating Concentricity Error | um | ≤12 |
| Cable Cutoff Wavelength | nm | acc≤1260 |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22
|
Technical Parameters
Fiber
Count | Cable
Diameter(mm) | Cable Weight
kg/km) | Tensile Strength
Long/Short
Term (N) | Crush Resistance
Long/Short
Term (N/100mm) | Bending Radius Static/Dynamic
mm) |
| 2~12 | 7.0mm*14.5(+/-0.2mm) | 105 | 4000/5000 | 1000/3000 | 10D/20D |
| 14~24 | 7.0mm*14.5(+/-0.2mm) | 115 | 4000/5000 | 1000/3000 | 10D/20D |
There are twelve fiber color code.They are A grade fiber.
All products will have been strictly quality checked in house
before packing.
All products will be well packed before shipment.
We are the factory, having quality control.
We privide you factory price.You can save costs, having good
quality.
Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's
requirements are also welcomed
We go to exhibitions. We have rich foreign trade experience, you
can save purchasing time.
Don't hesitate to contact me. Whatsapp:+86 18122383351
FQA
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
A:The MOQ of Fiber Optic cable is 1km.
3.Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our
customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It
depends on the order quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before
shipment.
