Central Loose Tube Single Mode Gyxtc8y 4 Core Fiber Cable

Ask Lasest Price
Brand Name :	Jiqian
Model Number :	GYXTC8Y
Certification :	CE/ISO9001
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	60000KM/month
Delivery Time :	3-5 days, it depends on your quantity

Add to Cart

Product Details
Company Profile

Central Loose Tube Single Mode Gyxtc8y 4 Core Fiber Cable

Aerial Central Loose Tube Single Mode 4 Core Fiber Optical Cable Gyxtc8y

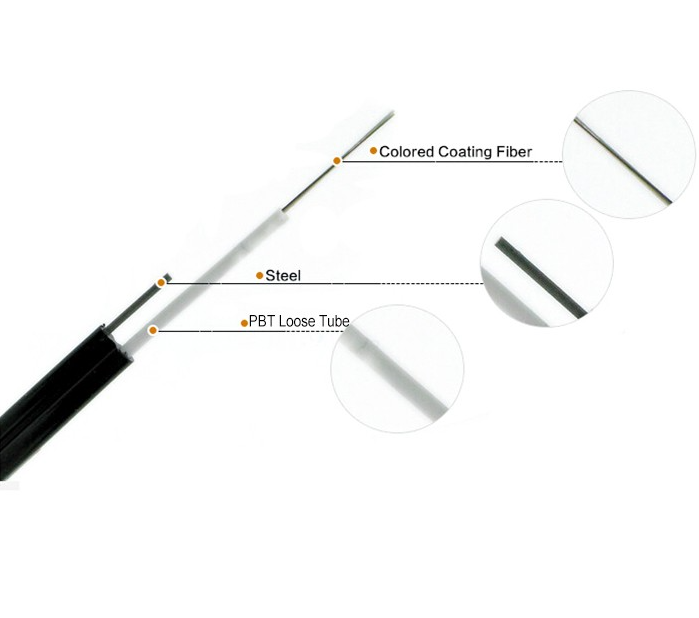

Strcture
GYXTC8Y fiber optic cable is a metal reinforcing member,loose
jacket, central loose tuue type,steel-polyethylene bonded
jacket,8-shaped self-supporting outdoor optical communicationcable.
Applications:

Technical Parameters

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter/pad diameter (mm)	Nominal Thickness of outer jacket (mm)	Cable diameter/ Height (mm)	Cable weight (kg/km)
4	1+5	4	1.8±0.1	1.4/1.4	1.6	9.0*14.5	155
6	1+5	6	1.9±0.1	1.4/1.4	1.6	9.0*14.5	155
8	1+5	8	1.9±0.1	1.4/1.4	1.6	9.0*14.5	155
12	1+5	6	1.9±0.1	1.4/1.4	1.6	9.0*14.5	155
24	1+5	6	1.9±0.1	1.4/1.4	1.6	9.0*14.5	155
36	1+6	12	1.9±0.1	1.6/1.6	1.6	9.6*15.2	168
48	1+5	12	2.2±0.1	1.6/1.6	1.6	9.6*15.2	168
72	1+6	12	2.2±0.1	2.0/2.0	1.6	10.8*16.3	190
96	1+8	12	2.2±0.1	1.6/3.5	1.6	12*17.5	205
144	1+12	12	2.2±0.1	2.0/6.4	1.8	15.8*21.3	320

Packaging Details
1.Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed;
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet, then sealed by strong wooden battens.

Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL
,UPS,TNT.....)
