Aerial Single Mode G652D 8 Core GYFXTY Fiber Optic Cable

Ask Lasest Price
Brand Name :	JQ/OEM
Model Number :	GYFXTY-6B1.3
Certification :	ISO9001 ROHS CE-EMC FCC SDOC
Payment Terms :	L/C, T/T
Supply Ability :	4500KM Per Month
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

Aerial Single Mode G652D 8 Core GYFXTY Fiber Optic Cable

Aerial Single Mode G652D 6Core 8 Core Fiber Optic Cable GYFXTY

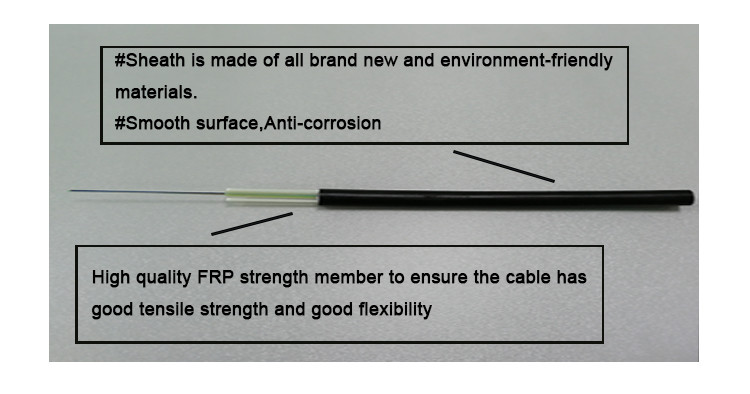

Two parallel FRP are placed at the two sides. The cable is completed with a polyethylene (PE) sheath.

Aerial Single Mode G652D 8 Core GYFXTY Fiber Optic Cable

Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation(+20C)	@850nm			≤3.0dB/km	≤3.0dB/km
	@1300nm			≤1.0dB/km	≤1.0dB/km
	@1310nm	≤036dB/km	≤0.40dB/km
	@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth(ClassA)	@850nm			≤2500MHz-km	≥2200MHz.km
Bandwidth(ClassA)	@1300nm			≤1000MHz.km	≥2600MHz-km
Numerical Aperture				0.200±0.015NA	0.275±0.15NA
CableCut-off Wavelength		≤1260m	≤1480nm

Structure and Technical Specification OF GYFXTY

Technical data

Fiber

count

Cable

diameter(mm)

Nominal

weight(KGS)

AllowableTensileLoad(mm)

Allowable Crush Resistance(N/100m)

Short term

Long term

Short term

Long term

2-12

8.0

800N

400N

1000N/100m

300N/100m

Package

Packed in enclosed fumigated wooden drum,1/2/3/4/5km per drum ,customer's requirements are also welcomed;

Shipping way

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

Aerial Single Mode G652D 8 Core GYFXTY Fiber Optic Cable
