Uniloose Tube Steel Tape Armored Gyxtw Cable PE Jacket

Product Categories

Guangzhou Jiqian Fiber Optic Cable Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Ask Lasest Price
Brand Name :	Jiqian/OEM
Model Number :	GYXTW
Certification :	CE/ISO9001
Price :
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	80000 kilometers per month
Delivery Time :	2-4days

Add to Cart

outdoor single mode unitube G652D 4 6 8 12 16 24 core armoured fiber optical cable with steel wire fibra optic gyxtw

Cable structure and parameter

Fiber count	Outer diameter	Steel wire diameter	Min.Bending Radius (Dynamic/Static)	Max.Crush Resistance	Weight (approx.)
Fiber count	mm	mm	D	N/100mm²	kg/km
2,4,6,8	8.3	1.0	20/10	3000	66
10,12	9.0	1.0	20/10	3000	82

Fiber parameter

Item		Unit	Specification
Fiber Type			G.652D
Mode field diameter	1310nm	mm	9.2±0.4
Mode field diameter	1550nm	mm	10.4±0.8
Cladding diameter		mm	125.0±1
Cladding non-circularity		%	≤1.0
Core/cladding concentricity error		mm	≤0.5
Coating diameter		mm	245±5
Coating non-Circularity		%	≤6.0
Coating/cladding concentricity error		mm	≤12.0
Cable cut-off wavelength		nm	≤1260
Attenuation Coefficient	1310nm	dB/km	≤0.36
Attenuation Coefficient	1550nm	dB/km	≤0.22
Proof stress level		kpsi	≥100

Cable bending radius: 10 x cable diameter (static)

20 x cable diameter (dynamic)

Application temperature range

Operating temperature range	-40℃ to +60℃
Storage / Transport temperature range	-40℃ to +60℃
Installation temperature range	-20℃ to +60℃

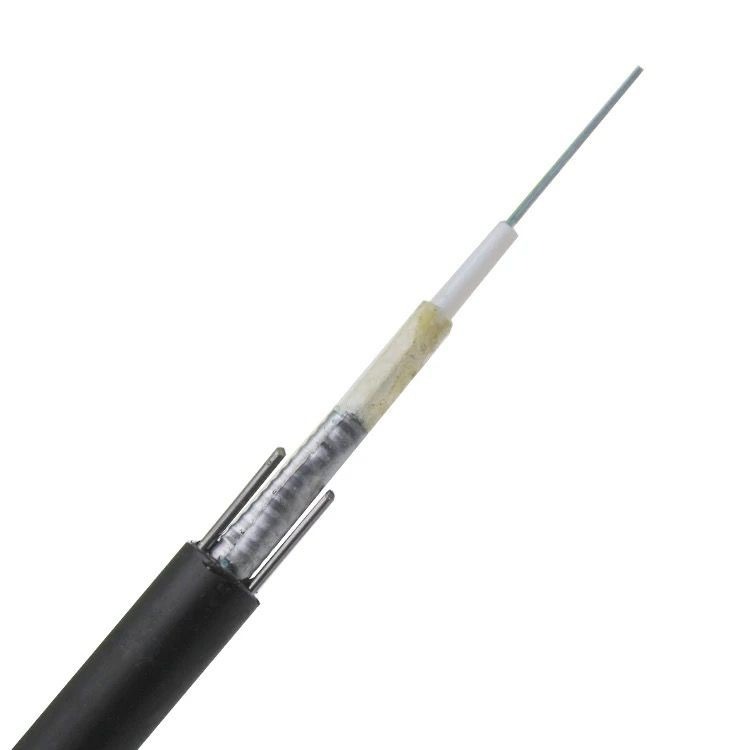

Uniloose Tube Steel Tape Armored Gyxtw Cable PE Jacket

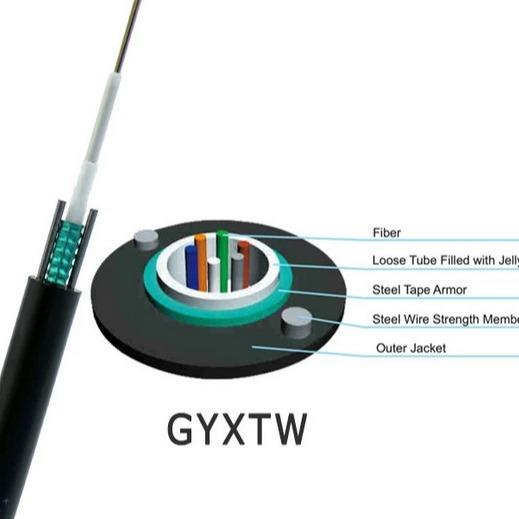

Cable Structure
