Cable de fibra optica auto apoyado ADSS 8 12 24 48 hilos 1km precio
optical cable

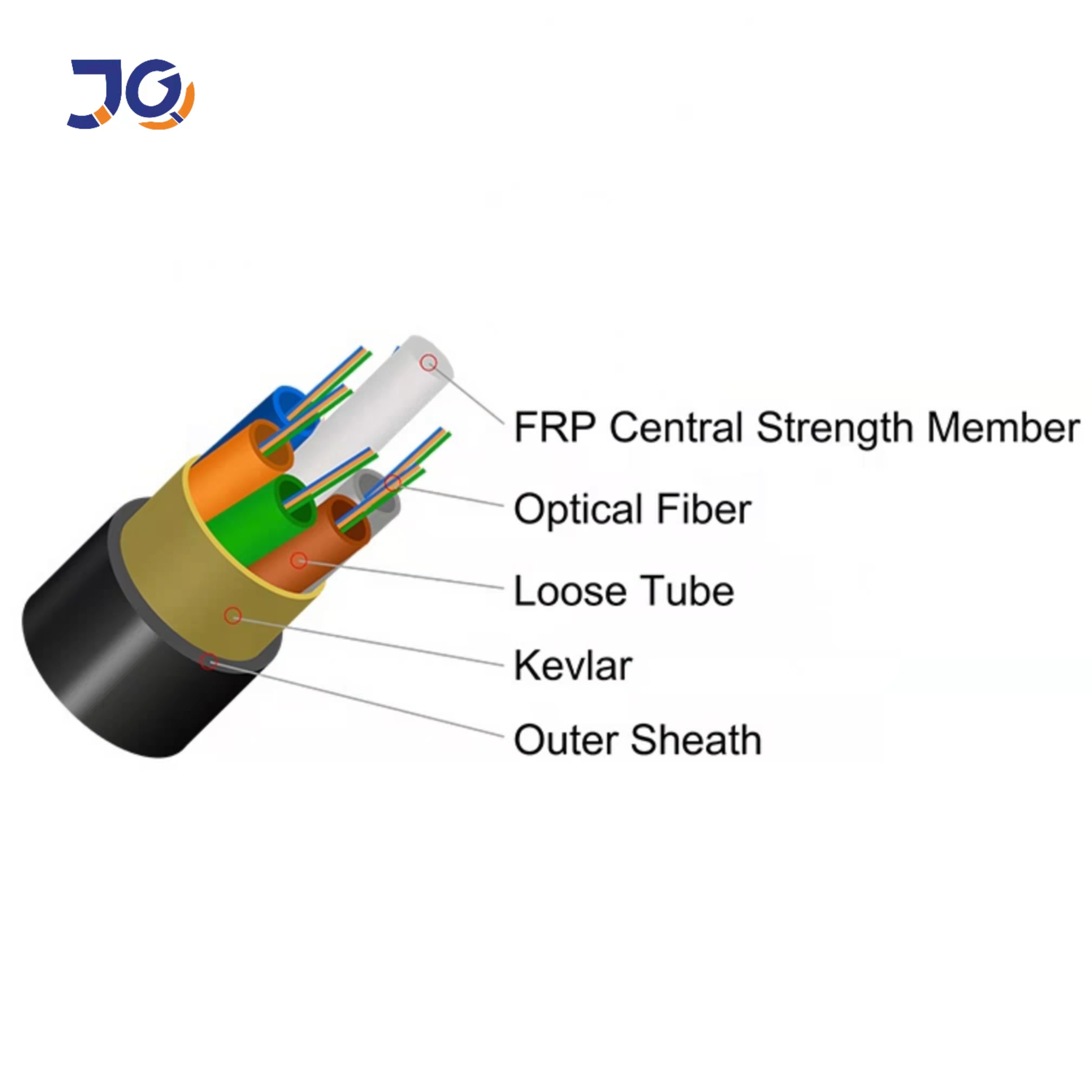

Double Layer Aerial ADSS Cable is used for communication cable of
overhead high-voltage electricity transmission system,it also can
be used as communication cable at the areas where lighting is
frequent or distance is big.
Technical Parameter:
| Span(meter) | Weight(KG/KM) | Diameter(mm) | Initial Tension(N) Upload Load |
| 8 Fibers |
| 100 | 132 | 12.2 | 6000 | 6280 |
| 200 | 134 | 12.4 | 6900 | 7102 |
| 300 | 138 | 12.6 | 8200 | 8452 |
| 400 | 144 | 13.0 | 11500 | 12020 |
| 500 | 148 | 13.3 | 12200 | 12400 |
| 600 | 162 | 13.6 | 17500 | 17852 |
| 700 | 173 | 13.9 | 21600 | 22200 |
| 800 | 178 | 14.2 | 24200 | 24320 |
| 12 Fibers |
| 100 | 132 | 12.2 | 6000 | 6280 |
| 200 | 134 | 12.4 | 6900 | 7102 |
| 300 | 138 | 12.6 | 8200 | 8452 |
| 400 | 144 | 13.0 | 11500 | 12020 |
| 500 | 148 | 13.3 | 12200 | 12400 |
| 600 | 162 | 13.6 | 17500 | 17852 |
| 700 | 173 | 13.9 | 21600 | 22200 |
| 800 | 178 | 14.2 | 24200 | 24320
|
Optical Characteristics:
| G.652D | 50/125μm | 62.5/125μm |
| Attenuation (+20℃) | @850nm | | ≤3.0 dB/km | ≤3.0 dB/km |
| @1300nm | | ≤1.0 dB/km | ≤1.0 dB/km |
| @1310nm | ≤0.36 dB/km | | |
| @1550nm | ≤0.22 dB/km | | |
| Bandwidth (Class A) | @850nm | | ≥500 MHz·km | ≥200 MHz·km |
| @1300nm | | ≥1000 MHz·km | ≥600 MHz·km |
| Numerical Aperture | | 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelength λcc | ≤1260nm | |
|
Product Application:
1.Application:Long hual mcommunication or inter-office
communication
2.Installation:Self- supporting aerial
3.Track-resistant &jacket available: For 10KV and 35KV power
lines can use polyethylene(PE), for 110KN and 220KN power line,
must by the resistance to corrosion(AT) outer sheath.Cable de fibra
optica auto apoyado ADSS 8 12 24 48 hilos 1km precio optical cable
Feature :
1:Optimum cable structure, high fibre density.
2:Accurate fibre length balance, ensure stable performance.
3:No gel in cable core for water blocking, low carbon and
environmental.
4:Structure Innovation in sheath, enhancing the blowing
performance.
Our factory :Packaging Details:wooden drum, standard safe package
or according to customer's request.
Delivery Time:3-6 days after payment confirmed(depend on the
quantity)
