12 24 48 Core Loose Tube Stranded Outdoor GYTA Armoured Optical
Fiber Communication Cable
Product Description
GYTA Armored Loose Tube Single Jacket/Single Armor fiber optic
cables are designed to provide high fiber counts with the
flexibility and versatility required for today's most demanding
installations, including duct and underground conduit.

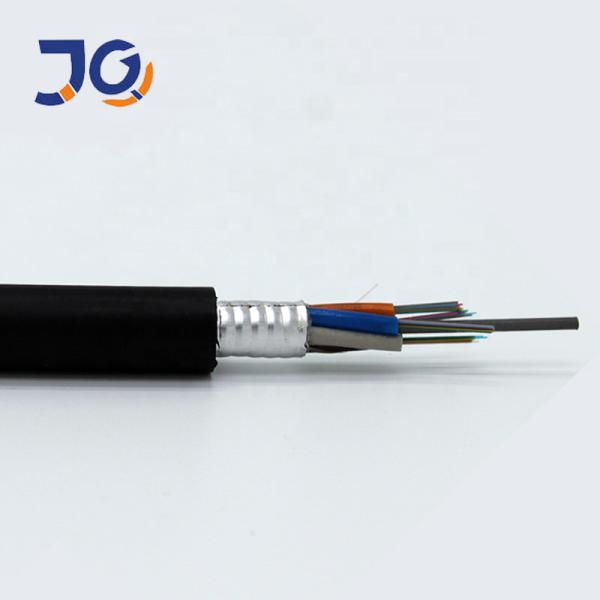

Product Construction:
1. Fiber: 2-288 fiber Multi-loose tube gel-filled
2. Central Strength Member: Fiberglass reinforced Platic (FRP) or steel wire.
3. Armor: Aluminum Tape Armor
4. Outer Jacket: Black UV Polyethylene(PE)
Features:
•Up to 288 fibers.
•Loose tube gel-filled construction for superior fiber protection.
•Aluminum tape armor to protect cable from mechanical damage.
•UV and waterproof design.
Application:
•Interbuilding voice or data communication backbone.
•Installed in duct, underground conduit.
Optical Characteristics:
| Fiber Type | G.652 | G.655 | 50/125^m | 62.5/125^m |
Attenuation
(+20X) | 850 nm | | | <3.0 dB/km | <3.3 dB/km |
| 1300 nm | | | <1.0 dB/km | <1.0 dB/km |
| 1310 nm | <0.36 dB/km | <0.40 dB/km | | |
| 1550 nm | <0.22 dB/km | <0.23 dB/km | | |
| Bandwidth | 850 nm | | | >500 MHz-km | >200 Mhz-km |
| 1300 nm | | | >500 MHz-km | >500 Mhz-km |
| Numerical Aperture | | | 0.200±0.015 NA | 0.275±0.015 NA |
| Cable Cut-off Wavelength cc | <1260 nm | <1450 nm | | |
Structure and Technical Specifications
Fiber
Count | Nominal
Diameter
(mm) | Nominal
Weight
(kg/km) | Max Fiber
Per Tube | Max No. of(Tubes+ fillers) | Allowable Tensile
Load(N) | Allowable Crush
Resistance(N/100mm) |
| Short Term | Long Term | Short Term | Long Term |
| 2~36 | 10.3 | 109 | 6 | 6 | 1500 | 600 | 1000 | 300 |
| 38~72 | 11.5 | 145 | 12 | 6 | 1500 | 600 | 1000 | 300 |
| 74~96 | 13.5 | 175 | 12 | 8 | 1500 | 600 | 1000 | 300 |
| 98~120 | 14.8 | 209 | 12 | 10 | 1700 | 600 | 1000 | 300 |
| 122~144 | 16.6 | 249 | 12 | 12 | 2000 | 600 | 1000 | 300 |
| 146~216 | 16.7 | 254 | 12 | 18(2 layers) | 2000 | 600 | 1000 | 300 |
| 218~288 | 19.0 | 325 | 12 | 24(2 layers) | 2500 | 600 | 1000 | 300 |
Note : This datasheet can only be a reference, but not a supplement
to the contract. Please contact our sales people for more detailed
information.
There are twelve fiber color code.They are A grade fiber.
Company Picture
We are the factory, having quality control.
We privide you factory price.You can save costs, having good
quality.
Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's
requirements are also welcomed
We go to exhibitions. We have rich foreign trade experience, you
can save purchasing time.
Don't hesitate to contact me. Whatsapp:+86 18122383351
FQA
Q1.Are you the real manufacturer?
We are the real manufacturer with 10 year’s history.
Q2.What’s the MOQ?
The MOQ of Fiber Optic cable is 1km.
Q3.What’s delivery time?
The general delivery time is 5-7 days after order confirmed. It
depends on the order quantity.
Q4.How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways
not on the end.
Q5. Can you supply customized products and logo?
Yes. We supply OEM service.
Q6.What’s your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70%
before shipment.
