48 Core Single Mode Duct GYFTY Fiber Optic Cable Black Color

Ask Lasest Price
Brand Name :	Jiqian
Model Number :	GYFTY
Certification :	CE/ISO9001
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	60000KM/month
Delivery Time :	3-5 days, it depends on your quantity

Add to Cart

Product Details
Company Profile

48 Core Single Mode Duct GYFTY Fiber Optic Cable Black Color

48 96 Core Single Mode Duct Best Fiber Optic Cable Gyfty

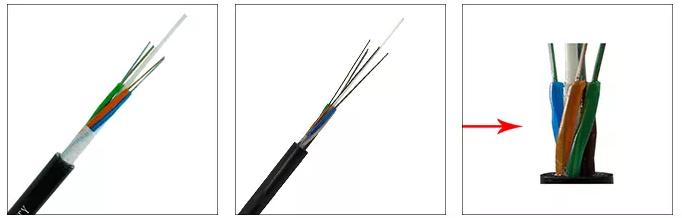

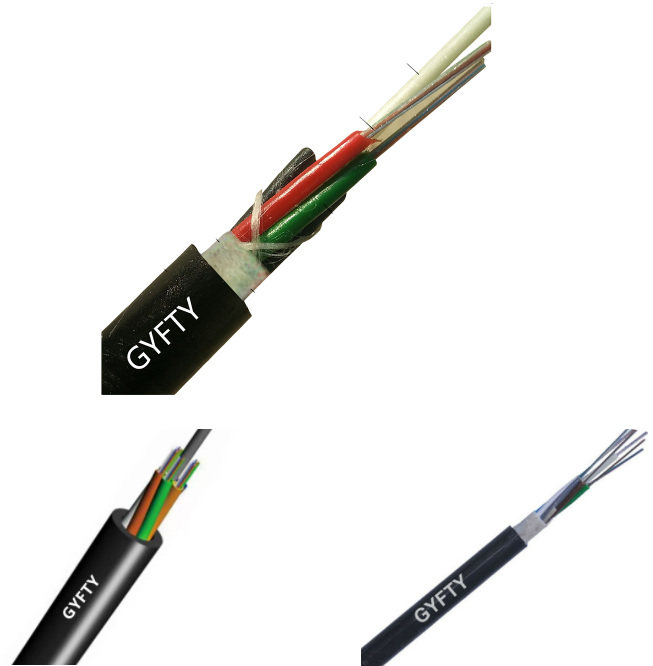

Product Show

Product Details

Product Feature

Dimensions of Cable Constructions

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter/pad diameter (mm)	Nominal Thickness of outer jacket (mm)	Cable diameter/ Height (mm)	Cable weight (kg/km)
4	1+5	4	1.8±0.1	1.4/1.4	1.6	8.8±0.2	62
6	1+5	6	1.9±0.1	1.4/1.4	1.6	8.8±0.2	62
8	1+5	8	1.9±0.1	1.4/1.4	1.6	8.8±0.2	62
12	1+5	6	1.9±0.1	1.4/1.4	1.6	9.0±0.2	65
24	1+5	6	1.9±0.3	1.4/1.4	1.6	9.2±0.2	68
36	1+6	12	2.2±0.1	1.6/1.6	1.6	9.2±0.2	68
48	1+5	12	2.2±0.1	1.6/1.6	1.6	9.2±0.2	68
72	1+6	12	2.2±0.1	2.0/2.0	1.6	10.6	80
96	1+8	12	2.2±0.1	2.2/3.5	1.6	12.0	103
144	1+12	12	2.2±0.1	2.2/6.4	1.8	15.0	180

Packaging Details
1.Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's
requirements are also welcomed;
2.Inner packed in fumigated wooden drum, and outer covered by
polyethelene sheet, then sealed by strong wooden battens.

Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL
,UPS,TNT.....)

Factory Show

We still have more. Please feel free to contact me. Whatsapp: +86 18122383351

Product Tags:

48 Core GYFTY fiber optic cable

Single Mode GYFTY fiber optic cable

GYFTY Duct fiber cable

48 Core Single Mode Duct GYFTY Fiber Optic Cable Black Color
