    Electrical GYTC8S 96 Core Figure 8 Fiber Optic Cable

    Ask Lasest Price
    Brand Name : Jiqian
    Model Number : GYTC8S
    Certification : ISO 9001/CE/FCC/ROHS
    Payment Terms : L/C, T/T, Western Union,Alipay
    Supply Ability : 4500 per month
    Delivery Time : 3-5 days
    • Product Details
    • Company Profile

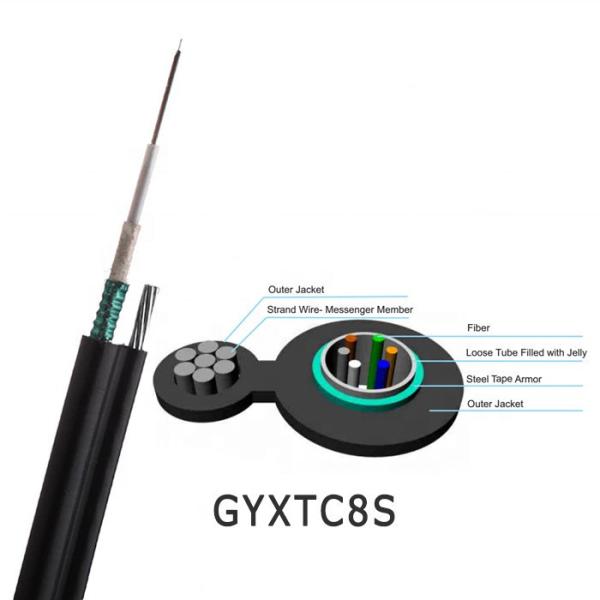

    Electrical GYTC8S 96 Core Figure 8 Fiber Optic Cable


    Fiber Optic Cable GYTC8S Fiber Optic 96 Core Outdoor Fiber Cable







    Fiber Optic G652D

    ParameterSpecification
    MFD (1310nm)9.2±0.4 um
    MFD (1550nm)10.4±0.8 um
    Cladding diameter125±1.0um
    Fiber diameter235~255um, with UV coating, and colored to : 250±15um
    Core/cladding concentricity error≤ 0.5um
    Coating/cladding concentricity error≤ 12.0um
    Cladding non circularity≤ 1.0%
    Cut off wavelengthλcc ≤1260nm

    Attenuation coefficient


    1310nm: 0.35dB/km max after cabling 1550nm: 0.21dB/km max after cabling


    Bending-loss performance of optical fiber @1310nm&1550nm


    ≤0.05dB (100 turns around a mandrel of 50mm diameter)

    Polarization mode dispersion maximum individual fibre

    ≤0.2ps/√km

    Polarization mode dispersion link value≤0.1ps/√km
    Zero-dispersion wavelength1300~1324nm
    Zero-dispersion slope≤0.092ps/nm2·km

    Cable performance:


    ItemParameters
    Fiber Count12
    Colored coated fiberDimension250µm±15µm
    ColorBlue,Orange,Green/Brown
    Loose tubeDimension2.0mm±0.1mm
    MaterialPBT
    ColorBlue,Orange,Green
    FillerMaterialPE
    ColorWhite
    Central Strength MemberDimension1.5mm
    MaterialFRP
    ArmouredMaterialCorrugated steel tape
    Inner JacketPE
    Messenger Stranded steel wireDimension3.0mm(7*1.0mm)
    Outer jacketMaterialPE
    ColorBlack
    Certification:
    FAQ:


    1,Q:Are you a factory or trade company?
    A:We are a factory



    2,Q:What is the MOQ?


    A:The MOQ of Fiber Optic cable is 1km.



    3.Q:Which brand of fiber do you use?


    A:YOFC,Fiberhome,etc






    4,Q:Can you accept small order?
    A:Yes, small order is available .We support new project of our customers as we know business is always from small order.



    5,Q:What’s delivery time?
    A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.



    6.Can you supply customized products and logo?


    A:Yes. We supply OEM service.






    7.What’s your payment terms?


    A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
