100m Adss Ofc Cable AT Jacket Loose Tube Stranded

Ask Lasest Price
Brand Name :	JQ/OEM
Model Number :	ADSS-12B1.3
Certification :	ISO9001 ROHS CE-EMC FCC SDOC
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	4500KM Per Month
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

100m Adss Ofc Cable AT Jacket Loose Tube Stranded

Fibra Optica De 6 Hilos CABLE ADSS 6 12 Y 24 Hilos Fiber Optic Cable 100m

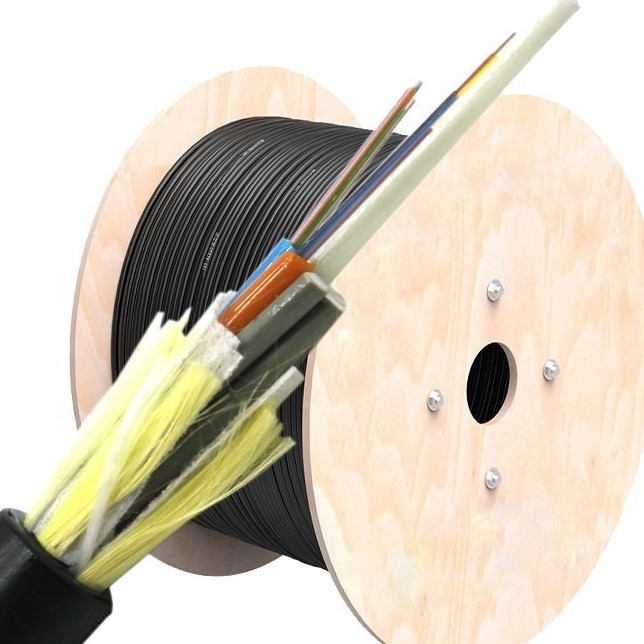

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes arefilled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

100m Adss Ofc Cable AT Jacket Loose Tube Stranded

Application

Suitable for Aerial Laying method

Storage / Operating Temperature: -40℃~+70℃

Optical Characteristics

Items		Unit	Specification
Items		Unit	G652D
Mode Field Diameter	1310nm	um	9.2±0.4
Mode Field Diameter	1550nm	um	10.4±0.5
Cladding Diameter		um	124.8±0.7
Cladding Non-Circularity		%	≤0.7
Core-Cladding Concentricity Error		um	≤0.5
Coating Diameter		um	245±5
Coating Non-Circularity		%	≤6.0
Cladding-Coating Concentricity Error		um	≤12
Cable Cutoff Wavelength		nm	acc≤1260
Attenuation(max.)	1310nm	dB/km	≤0.36
Attenuation(max.)	1550nm	dBkm	≤0.22

4-144 core ADSS Fiber Optic Cable

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter /pad diameter(mm)	Nominal Thickness of outer jacket(mm)	Cable diameter (mm)	Cable Weight (kg/km)
4	1+6	4	2.0±0.1	2.3/2.3	1.7	10.5±0.5	81
6	1+6	6	2.0±0.1	2.3/2.3	1.7	10.5±0.5	81
8	1+6	4	2.0±0.1	2.3/2.3	1.7	10.5±0.5	82
12	1+6	6	2.0±0.1	2.3/2.3	1.7	10.5±0.5	82
24	1+6	6	2.0±0.1	2.3/2.3	1.7	10.5±0.5	83
36	1+6	6	2.0±0.1	2.3/2.3	1.7	10.5±0.5	84
48	1+6	12	2.2±0.1	2.6/2.6	1.7	11.1±0.5	93
72	1+6	12	2.2±0.1	2.6/2.6	1.7	11.1±0.5	95
96	1+8	12	2.2±0.1	3.0/3.9	1.7	12.5±0.5	122
144	1+12	12	2.2±0.1	3.5/6.4	1.7	15.5±0.5	185

Package Detail

Export Wooden drum,Normal shipping length of the cable will be 2km or 3km.

Mark:Usually we only attach the test report on the packaging, but your request is available too.

For example:

A.Company Name
B.Gross/Net Weight
C.Fiber Type
D.Cable Length

100m Adss Ofc Cable AT Jacket Loose Tube Stranded
