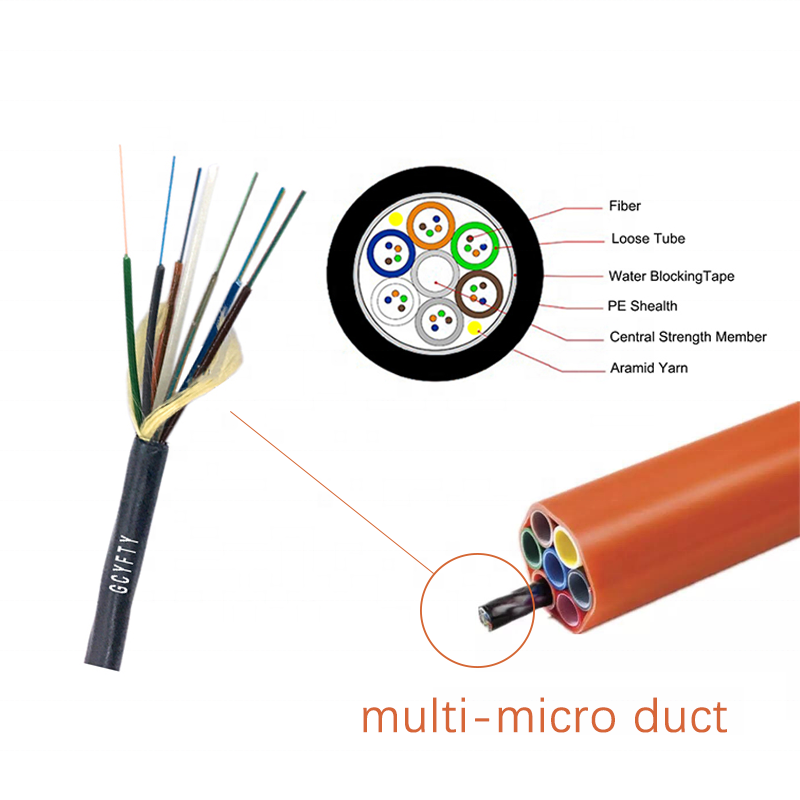

Outdoor 2 4 6 12 24 48 60 72 96 144 Core Single Mode GCYFTY Air Blown Micro Fiber Optic Cable

Air Blown Mini Cable (MINI) is small size, light weight, enhanced surface outer sheath fiber unit designed for blowing into micro tube bundles by air flow.

The outer thermoplastic layer provides a high level of protection and excellent installation properties.

It is usually applied in FTTX.

manufactures a wide range of cables from 2–144fibers with a variety of designs to meet the demands of most installation conditions.

Only the highest quality materials are used in our fiber optic cables to ensure that the cable strength and optical integrity are not compromised.

Rugged jacket materials and the addition of armor provide the right level of protection.

Features:
1.Using centre tube design less than 24f to get more compact structure
2.Small outer diameter, light weight , low friction sheath material
3.Accurate excess fibre length control to get stable cable performance
4.Stable temperature cycling performance by special process control
5.High speed, long distance air-blowing , efficient installation
6.Optional LSZH outer sheathing, applicable for access to indoor
7.Optional 200μm mini optical fibre to get smaller outer diameter

Fiber and Loose Tube Color Code

Packaging Details

1.Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed;
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet, then sealed by strong wooden battens.

 Guangzhou jiqian fiber optic cable Co., Ltd (Guangzhou haiso fiber optic cable co.,ltd) is a fiber optic communication Manufacturer that started in 2011 is located at Guangzhou city ,and provides a professional fiber optic cable design and after-sales service for all over the world.

Our team full of spirituality and vitality, bloody and soulful!! For the cutsomer to the colleague must be the customer's service!!

All of our encounters are sincere links heart to heart!

Our advantage, with a history of over 10years, 5years export experience, ship to more than 30countries, more than 40 employees.

Choosing JQ is not only our success,but also yours!!!
