Product Description
Outdoor duct armoured steel tape single mode 12 24 48 96 core G652D
Fiber Optic Cable anti rodent cable GYTA
The fibers, 250µm, are positioned in a loose tube made of a high
modulus plastic. The tubes are filled with a water-resistant
filling compound. A steel wire, sometimes sheathed with
polyethylene (PE) for cable with high fiber count, locates in the
center of core as a metallic strength member. Tubes (and fillers)
are stranded around the strength member into a compact and circular
cable core.

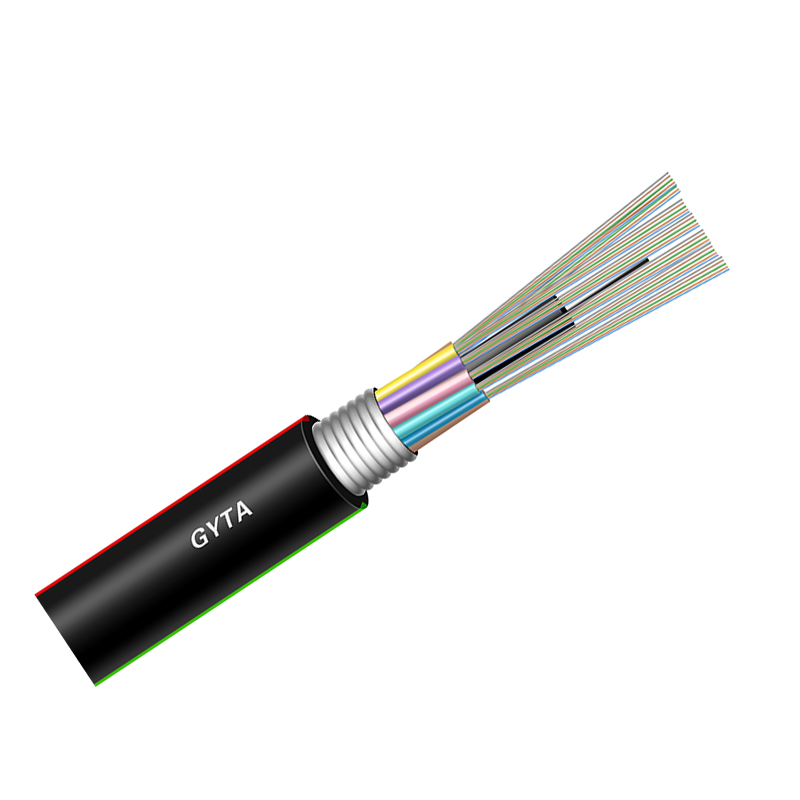

Cable Structure
Features:
Up to 288 fibers
Loose tube gel-filled construction for superior fiber protection.
Corrugated steel tape armor to protect cable from mechanical
damage.
UV and waterproof design.
Fiber parameter
| Item | Unit | Specification |
| Fiber Type | G.652D |
Mode field diameter | 1310nm | mm | 9.2±0.4 |
| 1550nm | mm | 10.4±0.8 |
| Cladding diameter | mm | 125.0±1 |
| Cladding non-circularity | % | ≤1.0 |
| Core/cladding concentricity error | mm | ≤0.5 |
| Coating diameter | mm | 245±5 |
| Coating non-Circularity | % | ≤6.0 |
| Coating/cladding concentricity error | mm | ≤12.0 |
| Cable cut-off wavelength | nm | ≤1260 |
Attenuation Coefficient | 1310nm | dB/km | ≤0.36 |
| 1550nm | dB/km | ≤0.22 |
| Proof stress level | kpsi | ≥100 |
Dimensions of Cable Constructions
Fiber count |
Structure |
Fibers per tube |
Loose tube diameter (mm) |
CSM diameter/pad diameter (mm) | Nominal Thickness of outer jacket (mm) |
Cable diameter/ Height (mm) |
Cable weight (kg/km) |
| 4 | 1+5 | 4 | 1.8±0.1 | 1.4/1.4 | 1.4 | 8.5±0.3 | 75 |
| 6 | 1+5 | 6 | 1.85±0.1 | 1.4/1.4 | 1.4 | 8.5±0.3 | 75 |
| 8 | 1+5 | 8 | 1.9±0.1 | 1.4/1.4 | 1.4 | 8.5±0.3 | 75 |
| 12 | 1+5 | 6 | 1.85±0.1 | 1.4/1.4 | 1.4 | 8.5±0.3 | 75 |
| 24 | 1+5 | 6 | 1.85±0.1 | 1.4/1.4 | 1.4 | 8.5±0.3 | 75 |
| 36 | 1+6 | 12 | 1.95±0.1 | 1.5/1.5 | 1.6 | 8.8±0.3 | 85 |
| 48 | 1+5 | 12 | 1.95±0.1 | 1.5/1.5 | 1.6 | 9.3±0.3 | 90 |
| 60 | 1+5 | 12 | 1.95±0.1 | 1.6/1.6 | 1.6 | 9.3±0.3 | 90 |
| 72 | 1+6 | 12 | 1.95±0.1 | 2.0/2.0 | 1.6 | 9.6±0.3 | 95 |
| 96 | 1+8 | 12 | 1.95±0.1 | 1.4/3.2 | 1.6 | 11.5±0.3 | 120 |
| 144 | 1+12 | 12 | 1.95±0.1 | 2.0/5.7 | 1.8 | 14.2±0.3 | 185 |
| 216 | 1+6+12 | 12 | 1.95±0.1 | 2.0/2.0 | 1.8 | 14.5±0.3 | 200 |
| 288 | 1+9+15 | 12 | 1.95±0.1 | 2.0/3.7 | 1.8 | 16.2±0.3 | 240 |
We produce and test cable comply with following standard:
| Mechanical Performance |
| Max Tension Performance | IEC 60794–1-2-E |
| Max. Operation Tension | IEC 60794–1-2-E1 |
| Crush Test | IEC 6079 –1-2-E3 |
| Impact Test | IEC 60794–1-2-E4 |
| Repeated Bending | IEC 60794–1-2-E6 |
| Torsion Test | IEC 60794–1-2-E7 |
| Cable bend | IEC 60794–1-2-E11A |
| Attenuation Coefficient | ITU-T G.652 |
| Structural Test | IEC-60793-1-20 |
| Environmental Performance |
| Temperature Cycling | IEC 60794–1-2-F1 |
| Water Penetration | IEC 60794–1–2-F5B |
| Filing Compound Flow | IEC 60794-1-E14 |
