Aerial Single Mode Armored Loose Tube Cable GYXTW 4 6 8 12 Core
Fiber Optic Cable

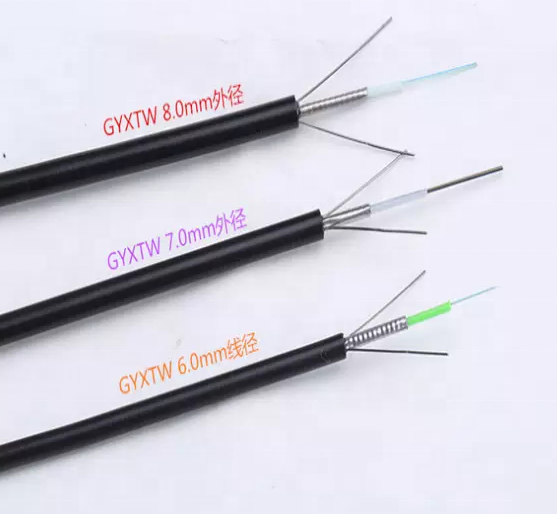

The structure of GYXTW cable is 250µm optical fiber ribbon is
inserted into a loose tube of high modulus material.
The loose tube is filled with gel filling compound.
The loose tube is covered by a PSP longitudinal.
Water-blocking material is added between the metallic strength
member and loose tube to ensure the compactness of optical cable
and longitudinal water seepage of optical cable.
Two parallel steel wires are placed on both sides,and then the
cable is completed with PE outer sheath.
Dimensions of Cable Constructions
| Fiber count | Structure | Fibers per tube | Loose tube diameter (mm) | CSM diameter/pad diameter (mm) | Nominal Thickness of outer jacket (mm) | Cable diameter/ Height (mm) | Cable weight (kg/km) |
| 2 | 1 | 2 | 1.7±0.1 | 1.0/1.0 | 1.6 | 8.0±0.2 | 57 |
| 4 | 1 | 4 | 1.85±0.1 | 1.0/1.0 | 1.6 | 80±0.2 | 58 |
| 6 | 1 | 6 | 1.9±0.1 | 1.0/1.0 | 1.6 | 8.0±0.2 | 58 |
| 8 | 1 | 8 | 2.0±0.1 | 1.0/1.0 | 1.6 | 8.0±0.2 | 60 |
| 12 | 1 | 12 | 2.2±0.1 | 1.0/1.0 | 1.6 | 8.0±0.2 | 60 |
Cable Performance
| Item | Parameters |
| Fiber Count | 12 |
| Colored coated fiber | Dimension | 250µm±15µm |
| Color | Blue,Orange,Green,Brown,Gray,White,Red,Black,Yellow,Purple,Pink,Aqua |
| Loose tube | Dimension | 2.2mm±0.1mm |
| Material | PBT |
| Color | nature |
| Filler | Material | none |
| Color | none |
| Strength Member | Dimension | 0.7mm±0.05mm |
| Material | Phosphating steel wire |
| Armoured | Material | Plastic coated steel strip |
| Outer jacket | Material | PE |
| Color | Black |
Factory
We are the factory, having quality control.
We privide you factory price.You can save costs, having good
quality.
Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's
requirements are also welcomed
We go to exhibitions. We have rich foreign trade experience, you
can save purchasing time.
Don't hesitate to contact me. Whatsapp:+86 18122383351
FQA
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
A:The MOQ of Fiber Optic cable is 1km.
3.Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our
customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It
depends on the order quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before
shipment.
