Outdoor aerial self supporting 24core 48core g652d g657a fiber
optical figure8 cable gytc8s gyxtc8s gytc8a ftth flat drop cable
Tchnical parameters
| Performance | Long-term | Short-term |
| Max.Tension(N) | 2500 | 4800 |
| Max.Crushing(N/100mm²) | 1000 | 1000 |
| Resistance(N/100mm2) | 20D(Dynamic) | 10D(static) |
| Storage and operating temperature | -20℃ to +70℃ |
Optical Characteristics:
| G.652D | 50/125μm | 62.5/125μm |
| Attenuation (+20℃) | @850nm | | ≤3.0 dB/km | ≤3.2 dB/km |
| @1300nm | | ≤1.0 dB/km | ≤1.2 dB/km |
| @1310nm | ≤0.36 dB/km | | |
| @1550nm | ≤0.22 dB/km | | |
| Bandwidth (Class A) | @850nm | | ≥500 MHz·km | ≥200 MHz·km |
| @1300nm | | ≥1000 MHz·km | ≥600 MHz·km |
| Numerical Aperture | | 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelength λcc | ≤1260nm | | |
Cable Specification:
Item Name:gytc8s cable
Optical Mode:Singlemode/Multimode
Fiber Diameters:G652, G655, 50/125μm, 62.5/125μm
Total Fiber Count:2-144
Bend Radius(Static/Dynamic):10D/20D
Working Life:More than 25 years
Application:Aerial self-supporting,Local network,Local network,Long
distance network communication.
Characteristics
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of
fiber
· Crush resistance and flexibility

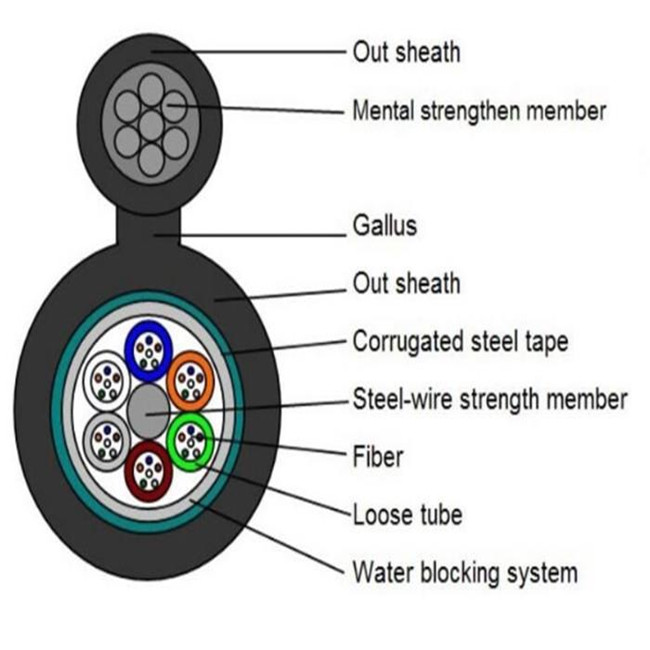

Structure:
Figure 8 non armoured fiber cable consists of :
1.Stranded loose tube
2.Steel wire strength member
3.Core filler compound
4.Fillers
5.Phosphating or Galvanized steel wire
6.PE sheath
Standards and Certificate:
Fiber optical cable complies with Standard YD/T 769-2003,IEC60794-1
Certificate:CE ROHS ISO9001
Cable Structure
FAQ
1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are
specialized in research,development and production for fiber optic cable. Our factory is in Guangzhou city,welcome to
visit us!
2.About the quality?
We will delivery before tested every fibers when finished
production.
3.Can you accept small order?
Yes, small order is available. We support new project of our
customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order
quantity.
But pls be assured that we will arrange your goods asap after your
payment .
5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the
product. Any idea from you is available.
