Aramid YARN Strength Member ADSS 80m 100m 120m Span Optical Fiber Cable

Ask Lasest Price
Brand Name :	Jiqian
Model Number :	ADSS
Certification :	CE/ISO9001
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	80000 kilometers per month
Delivery Time :	2-4 days

Add to Cart

Product Details
Company Profile

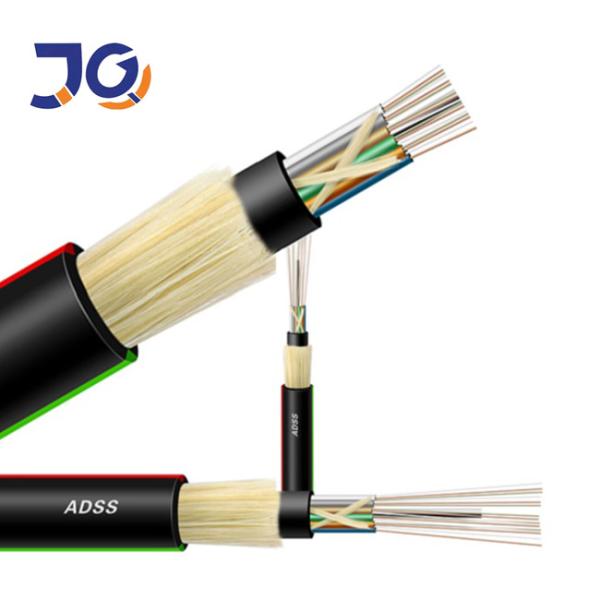

Aramid YARN Strength Member ADSS 80m 100m 120m Span Optical Fiber Cable

Fiber Cable Arimid YARN Strength Member ADSS 80m 100m 120m Span Optical Fiber Cable

Characteristics

1. Can be installed without shutting off the power;
2. Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach 25kV;
3.Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops;
4. Large span lengths and the largest span is over 1000m;
5. Good performance of tensile strength and temperature;
6.The design life span is 30 years.

Fiber parameter

Item		Unit	Specification
Fiber Type			G.652D
Mode field diameter	1310nm	mm	9.2±0.4
Mode field diameter	1550nm	mm	10.4±0.8
Cladding diameter		mm	125.0±1
Cladding non-circularity		%	≤1.0
Core/cladding concentricity error		mm	≤0.5
Coating diameter		mm	245±5
Coating non-Circularity		%	≤6.0
Coating/cladding concentricity error		mm	≤12.0
Cable cut-off wavelength		nm	≤1260
Attenuation Coefficient	1310nm	dB/km	≤0.36
Attenuation Coefficient	1550nm	dB/km	≤0.22
Proof stress level		kpsi	≥100

Mechanical and Environmental Characteristics

Performance parameters	Rated tensile strength (RTS)	KN	4.5
	Allows the use of tension (MAT)	KN	2
	The average annual running tension (EDS)	KN	1.8
	Limit running tension (UES)	KN	3.2
	Thermal expansion coefficient	10-6/℃	1/℃
	Young's modulus	kN/mm2	3.75
	The compressive strength	For a long time	1000N/100mm
	The compressive strength	In the short term	2000N/100mm
	The minimum bending radius	run	115mm
	The minimum bending radius	laying	235mm
		laying	-20~+60°C

Applicable temperature range	Transportation and operation	-40~+60°C
Yu long fiber optic cable		0.4-0.6%
life time		Max 25 year

Features:
Low attenuation and dispersion, special control of exceed length ensure the good transmission performance in varying environment.
Excellent mechanical performance
Good flexibility and bending performance
Small outer diameter, lightness and compact construction

Product description

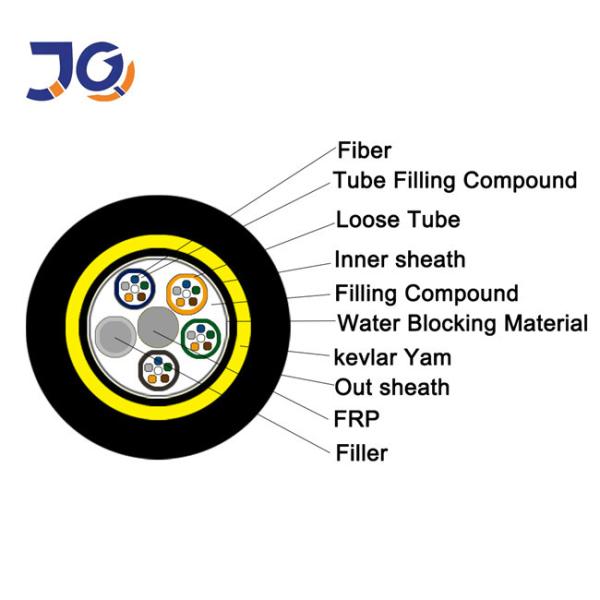

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics.The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP(Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath.After stranded layer of aramid yarns are applied over the inner sheath as strength member,the cable is completed with PE or AT (anti-tracking) outer sheath.
