Non Armoured Fig8 GYXTC8Y Fiber Optical Cables Aerial Central Loose Tube

Ask Lasest Price
Brand Name :	JQ/OEM
Model Number :	GYTC8Y
Certification :	CE/ISO9001
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	80000kilometers per month
Delivery Time :	2-4 days

Add to Cart

Product Details
Company Profile

Non Armoured Fig8 GYXTC8Y Fiber Optical Cables Aerial Central Loose Tube

Aerial Central Loose Tube Non Armoured Fig8 GYXTC8Y Fiber Optical Cables Factory Price

Features
Loose tube gel-filled construction for superior fiber protection.
UV and moisture-resistant design
Self-supporting Figure 8 design.
Applications
Backbones and Access.
Installed aerially.
Optical Charateristics
Fiber TypeG.652G.65550/125^m62.5/125^m
Attenuation
(+20X)
850 nm≤3.0 dB/km≤3.2 dB/km
1300 nm≤1.0 dB/km≤1.2 dB/km
1310 nm≤0.36 dB/km≤0.40 dB/km
1550 nm≤0.22 dB/km≤0.23 dB/km
Bandwidth850 nm≥500 MHz-km≥200 Mhz-km
1300 nm≥1000 MHz-km≥600 Mhz-km
Numerical Aperture0.200±0.015 NA0.275±0.015 NA
Cable Cut-off Wavelength cc≤1260 nm≤1450 nm
Characteristics
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility

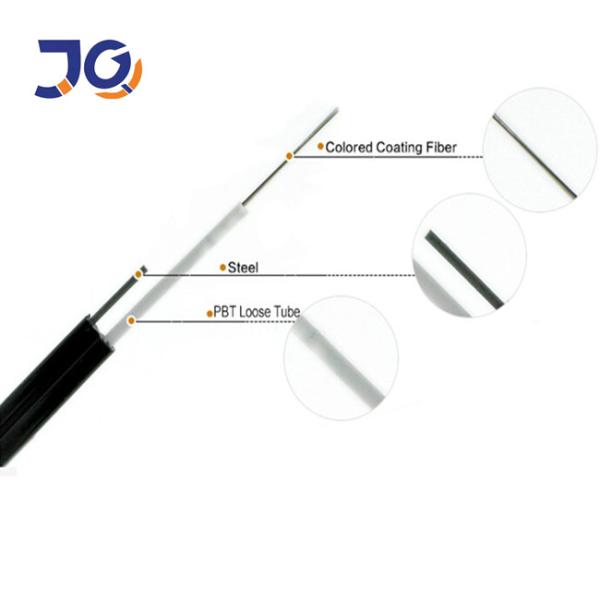

Structure:
Figure 8 non armoured fiber cable consists of :
1.Stranded loose tube
2.Steel wire strength member
3.Core filler compound
4.Fillers
5.Phosphating or Galvanized steel wire
6.PE sheath
Standards and Certificate:
Fiber optical cable complies with Standard YD/T 769-2003,IEC60794-1
Certificate:CE ROHS ISO9001

product description

Self-supported figure 8 optical cable with fibers placed in jelly
filled loose buffer tube stranded around dielectric central member.
The cable core is protected with jelly or waterblocking material to
prevent water intrusion and migration. This set unit and galvanized
steel messenger are covered with polyethylene outer jacket.

Non Armoured Fig8 GYXTC8Y Fiber Optical Cables Aerial Central Loose Tube

1.Low dispersion and attenuation
2.Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
3.Compact structure and lightness, flexible and good bend-resistant performance
4.With small cable diameter, light cable weight, self-supporting
5.Operating Temperature : -40~+60°C

Cable Structure

FAQ
1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are
specialized in research,development and production
for fiber optic cable. Our factory is in Guangzhou city,welcome to
visit us!
2.About the quality?
We will delivery before tested every fibers when finished
production.
After price confirmation, you can require for free samples to check
our quality.
3.Can you accept small order?
Yes, small order is available. We support new project of our
customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order
quantity.
But pls be assured that we will arrange your goods asap after your
payment .
5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the
product. Any idea from you is available.
