OEM G652D FTTH Fiber Optic Drop Cable GJXH GJXCH Black Jacket

Ask Lasest Price
Brand Name :	JQ\OEM
Model Number :	GJXH GJXCH
Certification :	CE/ISO9001
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	80000kilometers per month
Delivery Time :	2-5days

Add to Cart

Product Details
Company Profile

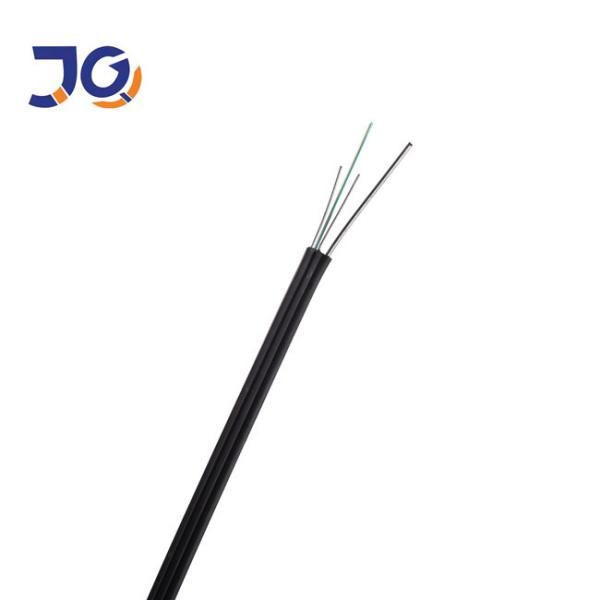

OEM G652D FTTH Fiber Optic Drop Cable GJXH GJXCH Black Jacket

Products Description

Self-support indoor/outdoor drop cable FTTH fiber optic cable

Fiber Optic Drop Cable access to the use of dish-shaped optical
cable (indoor wiring) is the optical communication unit (fiber) in
the center, placed on both sides of two parallel non-metallic
reinforcement (FRP) or metal reinforcing member, and finally
extrusion black or color poly Vinyl chloride (PVC) or LSZH (LSZH,
low smoke, halogen-free, flame retardant) jacket.

Characteristic:

Flex durable fiber to provide greater bandwidth and enhance network transmission characteristics.

Two parallel metallic strength member to protect the fiber and provide adequate tension and pressure

single metallic strength member makes optical cable having good tensile performance.

Optical cable has simple structure, light weight and strong practicability.

unique groove design, Easy peeled off and splice, simplify the installation and maintenance

Low smoke halogen-free flame-retardant sheath, pro-environment.

Structural Parameter

Model No.	Count	quter diameter(mm)±0.2mm	Weight (kg/km)	Tension (N)	Crush (N/100mm)	Bending Radius Static / dynamic (mm)
GJYXCH-1Xn	1	3.1*1.9	9	300/600	1000/2200	10/20
GJYXCH-2Xn	2	3.1*1.9	9	300/600	1000/2200	10/20

Model No.

Count

quter diameter(mm)±0.2mm

Weight

(kg/km)

Tension
(N)

Crush

(N/100mm)

Bending Radius Static / dynamic
(mm)

GJYXCH-1Xn

3.1*1.9

300/600

1000/2200

10/20

GJYXCH-2Xn

3.1*1.9

300/600

1000/2200

10/20

Fiber parameter

Item		Unit	Specification
Fiber Type			G.652D
Mode field diameter	1310nm	mm	9.2±0.4
Mode field diameter	1550nm	mm	10.4±0.8
Cladding diameter		mm	125.0±1
Cladding non-circularity		%	≤1.0
Core/cladding concentricity error		mm	≤0.5
Coating diameter		mm	245±5
Coating non-Circularity		%	≤6.0
Coating/cladding concentricity error		mm	≤12.0
Cable cut-off wavelength		nm	≤1260
Attenuation Coefficient	1310nm	dB/km	≤0.36
Attenuation Coefficient	1550nm	dB/km	≤0.22
Proof stress level		kpsi	≥100

Packing

1/2/3/4km or customized length export carton

Application

• Indoor and outdoor wiring system

• FTTH, terminal system

• Indoor and outdoor shaft,building wiring
