G652d ani-rodent gyta cable duct Aluminium armored per meter fiber
price loose tube Fiber Optic Cable
Technical Parameters
Performance | Long-term | Short-term |
Max.Tension(N) | 600 | 1500 |
Max.Crushing | 300 | 1000 |
Resistance(N/100mm2) | 20D(Dynamic) | 10D(static) |
Storage and operating temperature | -40℃ to +70℃ |
| Fiber Type | G.652 | G.655 | 50/125^m | 62.5/125^m |
Attenuation (+20X) | 850 nm | | | ≤3.0 dB/km | ≤3.2 dB/km |
| 1300 nm | | | ≤1.0 dB/km | ≤1.2 dB/km |
| 1310 nm | ≤0.36 dB/km | ≤0.40 dB/km | | |
| 1550 nm | ≤0.22 dB/km | ≤0.23 dB/km | | |
| Bandwidth | 850 nm | | | ≥500 MHz-km | ≥200 Mhz-km |
| 1300 nm | | | ≥1000 MHz-km | ≥600 Mhz-km |
| Numerical Aperture | | | 0.200±0.015 NA | 0.275±0.015 NA |
| Cable Cut-off Wavelength cc | ≤1260 nm | ≤1450 nm | | |
Application:
Backbones and Access.
Installed in ducts, Aerial/lashed.
We produce and test cable comply with following standard:
| Mechanical Performance |
| Max Tension Performance | IEC 60794–1-2-E |
| Max. Operation Tension | IEC 60794–1-2-E1 |
| Crush Test | IEC 6079 –1-2-E3 |
| Impact Test | IEC 60794–1-2-E4 |
| Repeated Bending | IEC 60794–1-2-E6 |
| Torsion Test | IEC 60794–1-2-E7 |
| Cable bend | IEC 60794–1-2-E11A |
| Attenuation Coefficient | ITU-T G.652 |
| Structural Test | IEC-60793-1-20 |
| Environmental Performance |
| Temperature Cycling | IEC 60794–1-2-F1 |
| Water Penetration | IEC 60794–1–2-F5B |
| Filing Compound Flow | IEC 60794-1-E14 |
Product Description
Single Jacket Non-Armored cables are lightweight with small
diameter and designed for duct and aerial installation with lashing
method. The loose tube stranded around central strength member.The
cable core is protected with jelly to preventwater intrusion and
migration, An Aluminum Polyethylene Laminated as moisture barrier.
And coverwith a black Polyethylene out jacket.

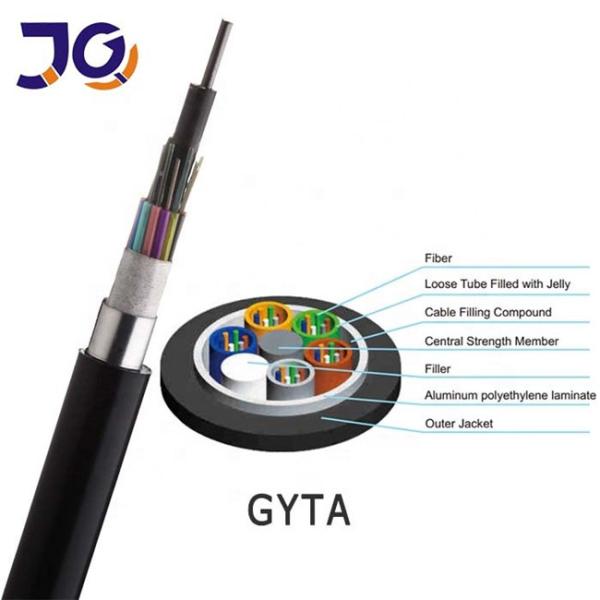

Cable Structure
PackingIron-wooden drum or fumugated wooden drum,normal wooden drum
Drum size can be designed,details will calculation for suitable for
containers
FAQ
1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are
specialized in research,development and production
for fiber optic cable. Our factory is in Guangzhou city,welcome to
visit us!
2.About the quality?
We will delivery before tested every fibers when finished
production.
After price confirmation, you can require for free samples to check
our quality.
3.Can you accept small order?
Yes, small order is available. We support new project of our
customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order
quantity.
But pls be assured that we will arrange your goods asap after your
payment .
5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the
product. Any idea from you is available.
