Armored Single Mode G.625d Outdoor Fiber Optic Cable gyxtc8y Figure 8

Ask Lasest Price
Brand Name :	JQ
Model Number :	gyxtc8y
Certification :	ISO9001/ ROHS/ CE/ FCC
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	8000 kilometers per month
Delivery Time :	4-6 work days

Add to Cart

Product Details
Company Profile

Armored Single Mode G.625d Outdoor Fiber Optic Cable gyxtc8y Figure 8

Introduction:

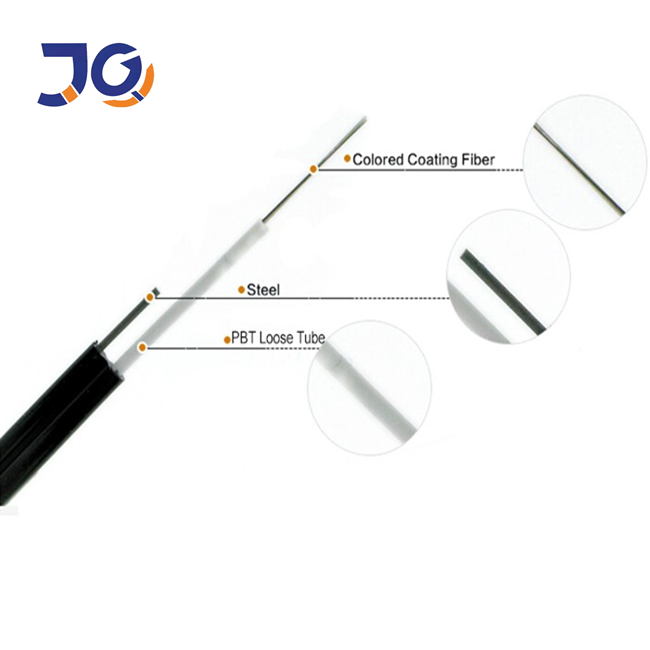

The cable with fibers placed in jelly filled loose buffer tube stranded
around dielectric central member. The cable core is protected with
jelly or waterblocking material to prevent water intrusion and
migration. This set unit and galvanized steel messenger are covered
with polyethylene outer jacket.
features:
Loose tube gel-filled construction for superior fiber protection.
UV and moisture-resistant design
Self-supporting Figure 8 design.
Standards:
Comply with Standard YD/T 1155-2001 as well as IEC60794-1.
Tempeature:
Operating /Storage:-20°c +70°c
Cable Dimensions and Constructions
Items
Descriptions

Fiber
Fiber type
G.652D
Fiber count
2~12
Color
Green/Yellow/White/Blue/Red//Violet/Brown/
Pink/Black/Grey/Orange/Aqua

Loose tube
Material
PBT
Diameter
2- 6cores:2.3 ±0.1mm
8-12 cores: 2.5 ±0.1mm
Water-blocking material
Gel-filled

Strength Member
Material
Aramid yarn/ Glass Yarn
Material
Water-blocking aramid yarn
Messenger Wire
Material
Steel wire
Diameter
1.2mm/1.0MM/1.3MM


Outer jacket
Material
PE
Color
Black
Thickness
2-12 cores: 0.8 ±0.2mm
Diameter
2-12 cores: 7.2±0.3mm×17.8mm±0.3mm
Applications
Backbones and Access.
Installed aerially.
