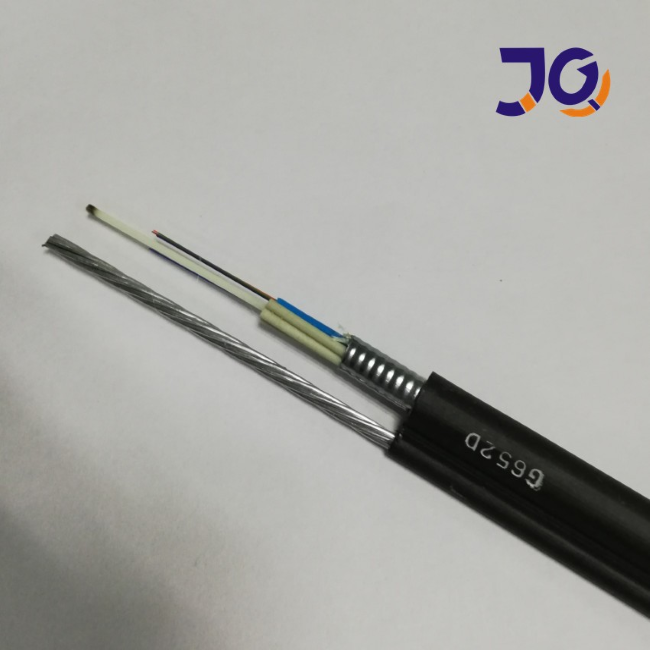

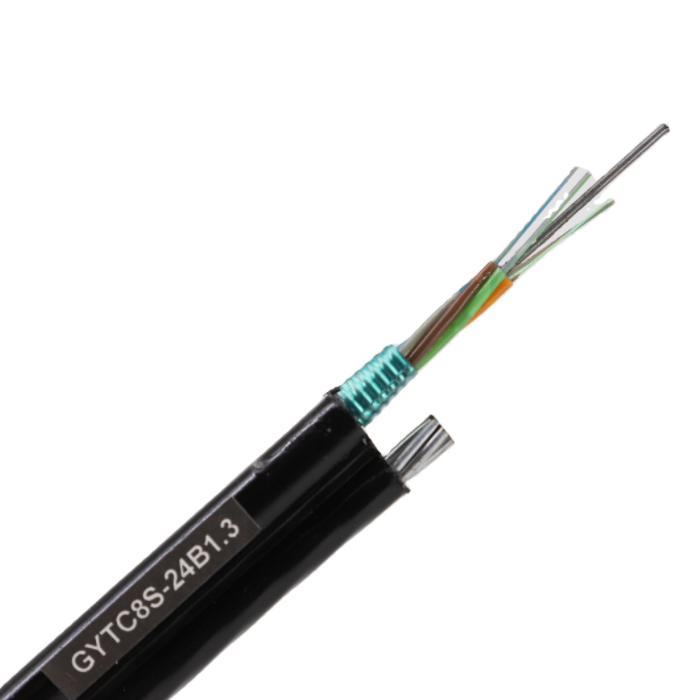

    Figure 8 Overhead Fiber Optic Cable Gytc8s Self Support Loose Tube Stranded 16 24 48 Core

    Ask Lasest Price
    Brand Name : Jiqian
    Model Number : GYTC8S
    Certification : CE/ISO9001
    Payment Terms : L/C, D/A, T/T, Western Union, MoneyGram
    Supply Ability : 60000KM/month
    Delivery Time : 3-5 days, it depends on your quantity
    MOQ : 1KM
    • Product Details
    • Company Profile

    Figure 8 Overhead Fiber Optic Cable Gytc8s Self Support Loose Tube Stranded 16 24 48 Core

    Gytc8s Self Support Loose Tube Stranded 16 24 48 Core Figure 8 Overhead Fiber Optical Cable

    Characteristics

    · Good mechanical and temperature performance
    · High strength loose tube that is hydrolysis resistant
    · Special tube filling compound ensure a critical protection of fiber
    · Crush resistance and flexibility

    · Storage/Operating Temperature: -40°C to + 70°C

    Features:

    Figure 8 non-armored fiber cable consists of :

    1.Stranded loose tube

    2.FRP strength member

    3.Core filler compound

    4.Fillers

    5.Phosphating or Galvanized steel wire

    6.PE sheath

    Optical Characteristics:

    G.652D50/125μm62.5/125μm
    Attenuation (+20℃)@850nm≤3.0dB/km≤3.0dB/km
    @1300nm≤1.0dB/km≤1.0dB/km
    @1310nm≤0.36dB/km
    @1550nm≤0.22dB/km
    Bandwidth(Class A)@850nm≥500MHz·km≥200MHz·km
    @1300nm≥1000MHz·km≥600MHz·km
    Numerical Aperture0.200±0.015NA0.275±0.15NA
    Cable Cut-off Wave length≤1260nm

    Standards:

    GYTC8S cable complies with Standard YD/T 769-2003.

    Company Picture



    Packaging Details
    1.Wooden reel, 1000m/reel,2000m/reel,3000m/reel,customer's requirements are also welcomed;
    2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet,then sealed by strong wooden battens.


    Delivery
    For large orders: by sea (LCL or FCL)
    For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
