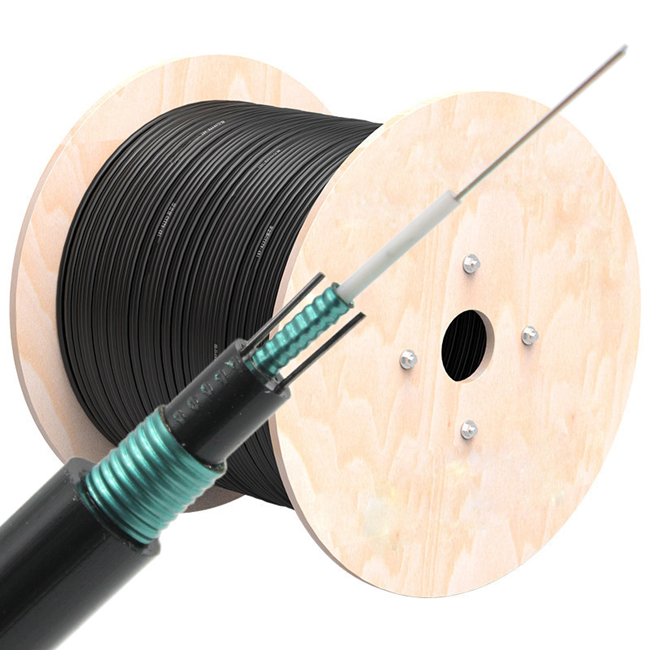

Factory Customized Outdoor Fiber Cable SM G652D Steel Wire Strength
Member Armored Fiber Optical Cable GYXTW53
|
Transport/storage temp | -40℃～+70℃ |
Installation temp | -20℃～+70℃ |
Operation temp | -40℃～+70℃ |
Structural Characteristics |
Fiber count | 2～288 |
Loose tube | Colored fiber in PBT loose tube, filled with fiber gel |
Strength member | Two parallel steel wire |
Corrugated steel-plastic tape | Ensure nice moisture proof and side pressure resisting capability
of cable |
sheath | PE |
Standard:
IEC-60793-1, IEC 60793-2, IEC-60794-1, TIA/EIA-598-A, Telcordia
GR-20-CORE,
ITU-T Recommendation G.652D/G.655/G.657A1/G.657A2/G.657B3, ISO/IEC 11801
Mechnical Parameters:
| Fiber Count | Cable Diameter (mm) | Cable Weight (kg/km) | Tension Strength (N) (Long/Short Term) | Crush Load (N/100mm) (Long/Short Term) | Bending Radius (Static/Dynamic) |
| 2 | 12.0 | 120 | 1500/3000 | 600/2200 | 10D/20D |
| 4 | 12.0 | 120 | 1500/3000 | 600/2200 | 10D/20D |
| 6 | 12.0 | 120 | 1500/3000 | 600/2200 | 10D/20D |
| 8 | 12.0 | 120 | 1500/3000 | 600/2200 | 10D/20D |
| 10 | 12.0 | 120 | 1500/3000 | 600/2200 | 10D/20D |
| 12 | 12.0 | 120 | 1500/3000 | 600/2200 | 10D/20D |
| 24 | 12.0 | 120 | 1500/3000 | 600/2200 | 10D/20D |
| Item | Unit | Specification |
| Fiber Type | G.652D |
Mode field diameter | 1310nm | mm | 9.2±0.4 |
| 1550nm | mm | 10.4±0.8 |
| Cladding diameter | mm | 125.0±1 |
| Cladding non-circularity | % | ≤1.0 |
| Core/cladding concentricity error | mm | ≤0.5 |
| Coating diameter | mm | 245±5 |
| Coating non-Circularity | % | ≤6.0 |
| Coating/cladding concentricity error | mm | ≤12.0 |
| Cable cut-off wavelength | nm | ≤1260 |
Attenuation Coefficient | 1310nm | dB/km | ≤0.36 |
| 1550nm | dB/km | ≤0.22 |
| Proof stress level | kpsi | ≥100 |
Environmental Conditions:
Storage/Operating Temperature : -40℃ to + 70℃
Installation Temperature : -30℃ to + 60℃
outdoor single mode unitube G652D 4 6 8 12 16 24 core armoured
fiber optical cable with steel wire fibra optic gyxtw
Description:
Packing and Shipping:
1/2/3/4km or customized length export wooden drum
By sea/by air or express delivery,it depends on the order quantity
FAQ
1.Are you trading company or manufacturer?
We are the manufacturer with 10 years' experience ,we are
specialized in research,development and production
for fiber optic cable.Our factory is in Guangzhou city,welcome to
visit us!
2.About the quality?
We will delivery before tested every fibers when finished
production.
3.Can you accept small order?
Yes, small order is available. We support new project of our
customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order
quantity.
But pls be assured that we will arrange your goods asap after your
payment .
5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the
product. Any idea from you is available.
