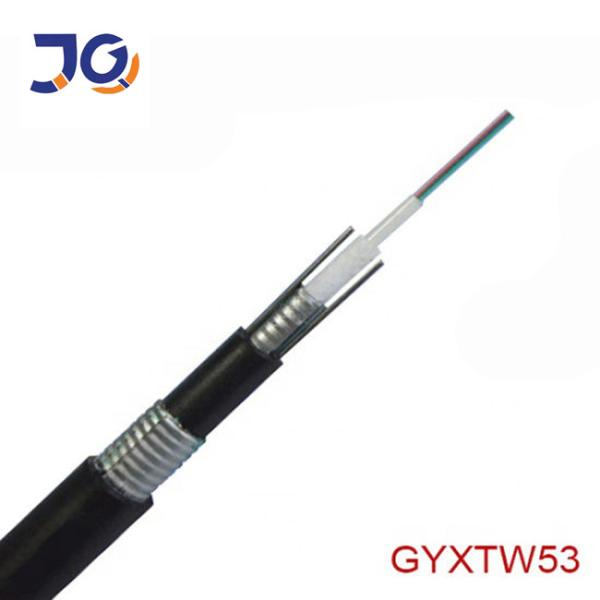

Single Mode Underground Outdoor 12 24 48 Core Fiber Optic Cable
GYXTW53
Description:
The fibers are positioned in a loose tube made of a high modulus
plastic. The tubes are filled with a water-resistant filling
compound. The tube is wrapped with a layer of corrugated steel
tape. Between the corrugated steel tape and the loose tube
water-blocking material is applied to keep the cable compact and
watertight. Two parallel steel wires are placed at the two sides of
the steel tape. The cable is completed with a polyethylene (PE)
sheath.
Application:
Outdoor direct buried application;
Long haul communication system;
Subscriber and local area network;
Voice,data,video and image system.
Mechnical Parameters:
| Fiber Count | Cable Diameter (mm) | Cable Weight (kg/km) | Tension Strength (N) (Long/Short Term) | Crush Load (N/100mm) (Long/Short Term) | Bending Radius (Static/Dynamic) |
| 2 | 12.0 | 120 | 1500/3000 | 600/2200 | 10D/20D |
| 4 | 12.0 | 120 | 1500/3000 | 600/2200 | 10D/20D |
| 6 | 12.0 | 120 | 1500/3000 | 600/2200 | 10D/20D |
| 8 | 12.0 | 120 | 1500/3000 | 600/2200 | 10D/20D |
| 10 | 12.0 | 120 | 1500/3000 | 600/2200 | 10D/20D |
| 12 | 12.0 | 120 | 1500/3000 | 600/2200 | 10D/20D |
| 24 | 12.0 | 120 | 1500/3000 | 600/2200 | 10D/20D |
Fiber parameter
| Item | Unit | Specification |
| Fiber Type | G.652D |
Mode field diameter | 1310nm | mm | 9.2±0.4 |
| 1550nm | mm | 10.4±0.8 |
| Cladding diameter | mm | 125.0±1 |
| Cladding non-circularity | % | ≤1.0 |
| Core/cladding concentricity error | mm | ≤0.5 |
| Coating diameter | mm | 245±5 |
| Coating non-Circularity | % | ≤6.0 |
| Coating/cladding concentricity error | mm | ≤12.0 |
| Cable cut-off wavelength | nm | ≤1260 |
Attenuation Coefficient | 1310nm | dB/km | ≤0.36 |
| 1550nm | dB/km | ≤0.22 |
| Proof stress level | kpsi | ≥100
|
outdoor single mode unitube G652D 4 6 8 12 16 24 core armoured
fiber optical cable with steel wire fibra optic gyxtw53
Packing
1/2/3/4km or customized length export wooden drum
FAQ
1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are
specialized in research,development and production
for fiber optic cable. Our factory is in Guangzhou city,welcome to
visit us!
2.About the quality?
We will delivery before tested every fibers when finished
production.
3.Can you accept small order?
Yes, small order is available. We support new project of our
customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order
quantity.
But pls be assured that we will arrange your goods asap after your
payment .
5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the
product. Any idea from you is available.
