Factory price outdoor Direct Buried 2 4 6 12 24 Core Fiber Optic
Cable GYXTW53
Description:

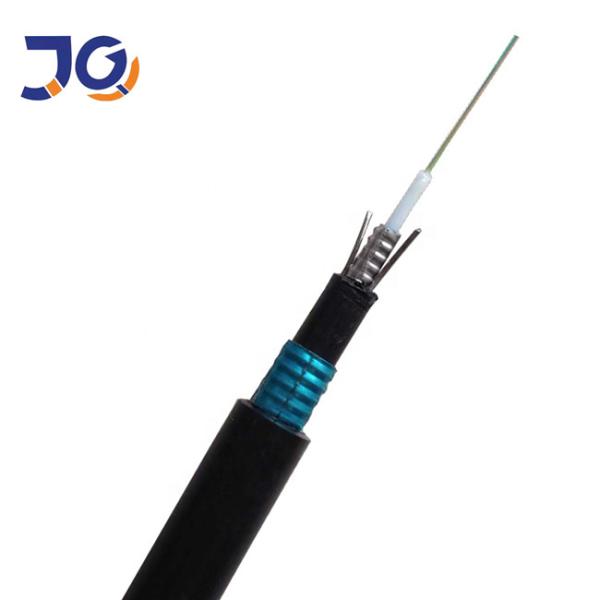

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic.
The tubes are filled with a water-resistant filling compound.
The tube is wrapped with a layer of corrugated steel tape longitudinally. Between the corrugated
steel tape and the loose tube water-blocking material is applied to
keep the cable compact
and watertight. Two parallel steel wires are placed at the two
sides of the steel tape.
The cable is completed with PE sheath.
Application:
Outdoor direct buried application;
Long haul communication system;
Subscriber and local area network;
Voice,data,video and image system.
Product features
precision control of fiber length ensures excellent mechanical and
temperature properties
the loose casing material itself has good hydrolysis resistance and
high strength
the tube is filled with special ointment for critical protection of
the optical fiber
good lateral compression resistance and softness
two parallel wires ensure the tensile strength of the cable
double PSP improves the moisture resistance of optical cable
good water resistance material to prevent longitudinal water
seepage of optical cable
polyethylene (PE) sheath has excellent uv radiation resistance
small diameter, light weight, easy to lay
steel tape armour gives the cable excellent rodent protection
Mechnical Parameters:
| Fiber Count | Cable Diameter (mm) | Cable Weight (kg/km) | Tension Strength (N) (Long/Short Term) | Crush Load (N/100mm) (Long/Short Term) | Bending Radius (Static/Dynamic) |
| 2 | 12.0 | 120 | 1500/3000 | 600/2200 | 10D/20D |
| 4 | 12.0 | 120 | 1500/3000 | 600/2200 | 10D/20D |
| 6 | 12.0 | 120 | 1500/3000 | 600/2200 | 10D/20D |
| 8 | 12.0 | 120 | 1500/3000 | 600/2200 | 10D/20D |
| 10 | 12.0 | 120 | 1500/3000 | 600/2200 | 10D/20D |
| 12 | 12.0 | 120 | 1500/3000 | 600/2200 | 10D/20D |
| 24 | 12.0 | 120 | 1500/3000 | 600/2200 | 10D/20D |
Environmental Conditions:
Storage/Operating Temperature : -40℃ to + 70℃
Installation Temperature : -40℃ to + 70℃
Packing
1/2/3/4km or customized length export wooden drum
outdoor single mode unitube G652D 4 6 8 12 16 24 core armoured
fiber optical cable with steel wire fibra optic gyxtw
FAQ
1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are
specialized in research,development and production
for fiber optic cable. Our factory is in Guangzhou city,welcome to
visit us!
2.About the quality?
We will delivery before tested every fibers when finished
production.
After price confirmation, you can require for free samples to check
our quality.
3.Can you accept small order?
Yes, small order is available. We support new project of our
customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order
quantity.
But pls be assured that we will arrange your goods asap after your
payment .
5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the
product. Any idea from you is available.
