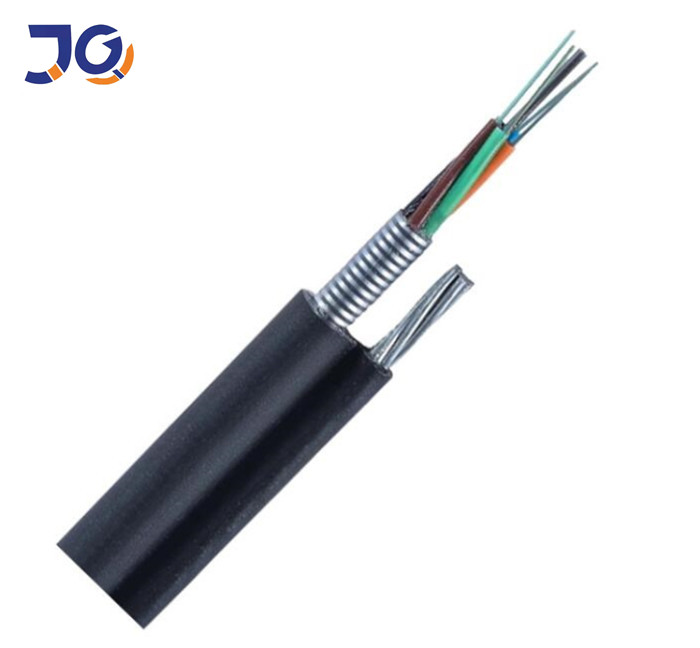

Gytc8s Self-supporting Figure 8 Outdoor G652d Single Mode Armored 6
Core Aerial Fiber Optic Cable 1 Km Price
Descriptions
Light weight and small diameter reducing the load caused by ice and
wind and the load on towers and backprops
Large span lengths
Good performance of tensile strength and temperature
Arc-erosion-resistant AT jacket
The design life span is 30 years
Fiber parameter
| Item | Unit | Specification |
| Fiber Type | G.652D |
Mode field diameter | 1310nm | mm | 9.2±0.4 |
| 1550nm | mm | 10.4±0.8 |
| Cladding diameter | mm | 125.0±1 |
| Cladding non-circularity | % | ≤1.0 |
| Core/cladding concentricity error | mm | ≤0.5 |
| Coating diameter | mm | 245±5 |
| Coating non-Circularity | % | ≤6.0 |
| Coating/cladding concentricity error | mm | ≤12.0 |
| Cable cut-off wavelength | nm | ≤1260 |
Attenuation Coefficient | 1310nm | dB/km | ≤0.36 |
| 1550nm | dB/km | ≤0.22 |
| Proof stress level | kpsi | ≥100 |
Characteristics
Steel wire strands have extremely high tensile strength, which is
convenient for self-supporting overhead laying and reduces
installation costs
With good mechanical properties and temperature characteristics
Material of loose tube has good hydrolysis resistance and high
strength
The loose tube is filled with special gel, which protect the
optical fiber
Take the following measures to ensure the waterproof performance of
the optical cable:
Single metallic wire center reinforced core
Filled with special Water-blocking material in loose tube
Complete cable core filling
Moisture-proof layer of plastic-coated steel
Cable Structure
FAQ
1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are
specialized in research,development and production
for fiber optic cable. Our factory is in Guangzhou city,welcome to
visit us!
2.About the quality?
We will delivery before tested every fibers when finished
production.
3.Can you accept small order?
Yes, small order is available. We support new project of our
customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order
quantity.
But pls be assured that we will arrange your goods asap after your
payment .
5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the
product. Any idea from you is available.
