    Single Jacket Span 100cm ADSS Fiber Optic Cable Anti - Rodent

    Ask Lasest Price
    Brand Name : jiqian
    Model Number : ADSS 12core 24 core 48core 96core
    Certification : ISO9001
    Payment Terms : Western Union, MoneyGram, T/T, L/C
    Supply Ability : 100km per Month
    Delivery Time : 2-4days
    • Product Details
    • Company Profile

    Single Jacket Span 100cm ADSS Fiber Optic Cable Anti - Rodent

    Single jacket Span 100mcAnti-rodent Fibra Optica Cable Outdoor ADSS

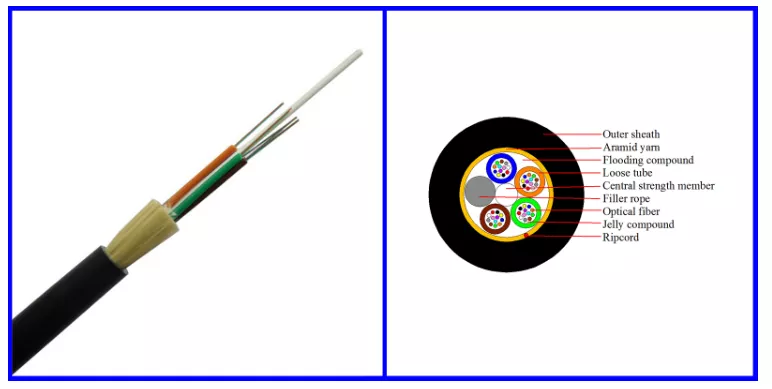

    ADSS cable is loose tube stranded.Fibers,250μm,are positioned into a loose tube made of high modulus plastics.The tubes are filled with a water-resistant filling compound.The tubes(and fillers) are stranded around a FRP(Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.After the cable core is filled with filling compound,it is covered with thin PE(polyethylene)inner sheath.After stranded layer of aramid yarns are applied over the inner sheath as strength member,the cable is completed with PE or AT(anti-tracking)outer sheath
    Single Jacket Span 100cm ADSS Fiber Optic Cable Anti - Rodent
    Single Jacket Span 100cm ADSS Fiber Optic Cable Anti - Rodent

    Applications

    Suitable for network in high electromagnetic interfering places.

    Suitable for aerial.

    Long distance and local area network communication.

    Single Jacket Span 100cm ADSS Fiber Optic Cable Anti - Rodent

    Structure and Technical Specifications ADSS-SJ(50-150M)

    Ref. Outer
    Diameter
    (mm)    		 Ref. Weight
    (kg/km)

    Rec. Daily Max.
    Working Tension

    (kN)

    		 Max Allowable
    Working Tension
    (kN)

    Break

    Strength

    (kN)

    Strength

    Member

    CSA

    (mm2)

    Modulus of
    Elasticity
    CSA

    (kN/mm2)

    Heat

    Expansion

    Coefficient

    (x10- 6/K)

    		 Suitable Span
    (NESC Standard,m)
    PE Jacket AT Jacket A B C D
    11 110 120 1.0 2.5 8 3.0 6.6 2.1 120 80 100 80
    11.5 115 125 1.5 4 10 4.5 7.3 1.8 180 120 150 120
    12 120 130 2.5 6 15 7.5 8.3 1.5 250 150 290 150

    Structure and Technical Specifications ADSS-DJ(50-750M)

    Ref. Outer
    Diameter
    (mm)    		 Ref. Weight
    (kg/km)

    Rec. Daily Max.
    Working Tension

    (kN)

    		 Max Allowable
    Working Tension
    (kN)

    Break

    Strength

    (kN)

    Strength

    Member

    CSA

    (mm2)

    Modulus of
    Elasticity
    CSA

    (kN/mm2)

    Heat

    Expansion

    Coefficient

    (x10- 6/K)

    		 Suitable Span
    (NESC Standard,m)
    PE Jacket AT Jacket A B C D
    12.5 125 136 1.5 4 10 4.6 7.6 1.8 160 100 140 100
    13.0 132 142 2.25 6 15 7.6 8.3 1.5 230 150 200 150
    13.3 137 148 3.0 8 20 10.35 9.45 1.3 300 200 290 200
    13.6 145 156 3.6 10 24 13.8 10.8 1.2 370 250 350 250
    13.8 147 159 4.5 12 30 14.3 11.8 1.0 420 280 400 280
    14.5 164 177 5.4 15 36 18.4 13.6 0.9 480 320 460 320
    14.9 171 185 6.75 18 45 22.0 16.4 0.6 570 380 550 380
    15.1 179 193 7.95 22 53 26.4 18.0 0.3 670 460 650 460
    15.5 190 204 9.0 26 60 32.2 19.1 0.1 750 530 750 510

    Single Jacket Span 100cm ADSS Fiber Optic Cable Anti - RodentSingle Jacket Span 100cm ADSS Fiber Optic Cable Anti - RodentSingle Jacket Span 100cm ADSS Fiber Optic Cable Anti - Rodent

    FAQ:

    1. Are you the real manufacturer?
    Yes, we are factory in guangzhou china, welcome to visit us!

    2. what is your minimum quantity?
    1KM. We support new project of our customers, trial order is available


    3.Can I get a sample?
    Yes, we provide FREE sample and you just need to pay for express freight.


    4.What about Payment?

    L/C,T/T,Western Union and Paypal are acceptable.


    5.Delivery time?

    Generally 3-7 working days, also it is according to qty.


    6.Can you supply customized products and logo?
    Yes, we supply OEM&ODM service, pls feel free to contact.

    7.Which brand of fiber do you use?

    Corning,YOFC,Fiberhome,etc
