1 2 4 Core Fiber Optic Indoor/Outdoor Flat FTTH Drop Cable
Description:
The optical fiber unit is positioned in the centre
Two parellel fiber reinforced plastics(FRP) as placed at the two
sides.
The cable is completed with a black or color LSZH sheath.
Characteristics
Two parallel FRP strength members ensure good performance of crush
resistance to protect the fiber.
Simple structure,light weight and high practicability.
Novel flute desig, easily strip and splice, simplify the
installation and maintenance.
Low smoke zero halogen and flame retardant sheath.
Item | Parameters |
Fiber | Type | G652D |
Count | 2-288 Cores |
Loose tube | Material | PBT |
Color | Blue,Orange,Green,Brown |
Filler | Material | PE |
Color | Natural color |
Central Strength Member | Material | FRP |
Non-metal reinforced pieces | Matrial | Aramid yarn |
Outer jacket | Material | PE |
Min.bending radius | Static | 10 times cable diameter |
Dynamic | 20 times cable diameter |
Repeating bending | Load:150N; number of cycles:30 No obvious addition attenuation, no
fiber break and no cable damage |
Crush | Short term | 1000N/100mm |
Torsion | Load:150N; number of cycles:10; twist angle:±180° No obvious
addition attenuation, no fiber break and no cable damage |
Impact |
Impact energy : 450g × 1m; radius of hammer head:12.5mm;
number of impact: 5 No obvious addition attenuation, no fiber break
and no cable damage.
|
Apply to:messenger overhead

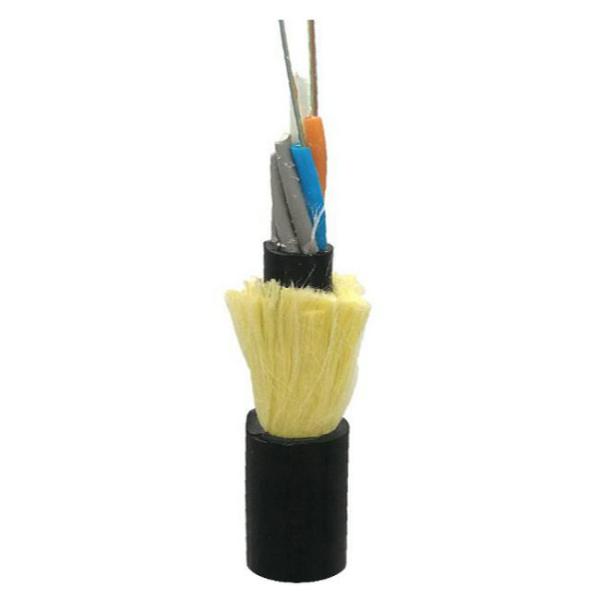

Structure
FAQ
Q1:Are you a factory or trading company?
Definitely,we are real factory which is professional in
manufacturing different types of outdoor&indoor fiber optical
cables with10000 square meters plant area.we are warmly welcome you
to visit us!
Q2:How can I know you price?
we usually quote within 24 hours after we get your inquiry(Except
weekend or holidays)if you very urgent to know the price,pls call
me or mail me or in other ways so that we can give you very fast
quotation.
In addition,if you want to know very accutately price,pls send me
your specific needs,it's better you have the technical
specifications,the more specific information given.the more
accurate price we can offer you!
Q3:Can you support OEM product under our brand?
yes,we support OEM/ODM service,we can print your logo and mark on
the cable,box according to your ideas so pls never mind to tell me
your requirements
Q4:Can you accept small order?
Off course,Small order is avaliable,usually,our MOQ is 1000meter .
Samples:usually it is less than 50 meters.it is need to negotiate
with each other
Q5:How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q6:What is your lead time?
It depends on the order quantity and the season.usually,we can ship
within 5-10 for small quantity.if the order quantity more than
100km for outdoor cable and 300km for indoor cable,it will about
20days need to ship.
Note:This can only for your reference,the lead time will be up to
the types of fiber optical cables
please contract our sales person for more detailed information
Q7:What is your payment terms?
T/T ,D/P,L/C is acceptable
Q8:May I know the states of my order?
sure! There will be professional sales are responsible for you
order and feedback to you at different manufactuing processings in
time
Q9:What are your comapny advantages?
1. We have professional technical engineer in our company.Apart
from regular fiber optical cables,for example:
ADSS/GYXTW/GYTA/GYTS/GJFJV/GJXH,We can also desigh the cable
accourding to your idea and also we can give you the best
suggestions accourding to your needs!
2. have very huge workshop,we have enough ability to manufacture
your order in short time and fast delivery.
3, Every staff in our factory are trained before work,we have
strictly quality test system ,every production steps,we need to
test it so that we can sure the fiber optical cable are test
passed.
4. We never use the second raw material.All of the fiber optical
cable from our factory is totally new!we must control our quality
in good level
5. Our products are very competitive and the price is reasonable
because our factory saves costs under having mature system we have
skilled staff and advanced production equipment.
6. We attach great importance to service.we believe every customer
are also our good friends no matter where they from.we will
responce your inquire within 24 hours.in addition.if you have fault
caused by non-artificial reason,we will refound or compensation.
