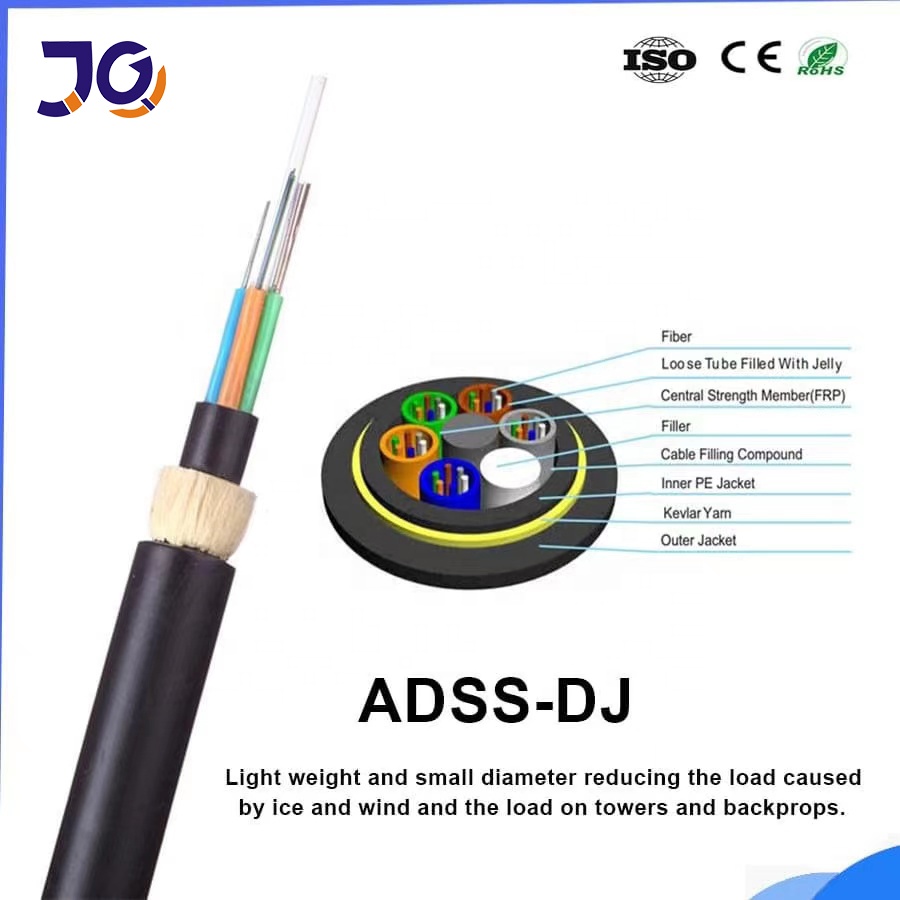

ADSS FO 2~288 Core All Dielectric Outdoor Self supporting Optic
Fiber cable
Cable Performance
Item |
Contents | Value |
| 6/12/24 | 48 | 72 | 96 |
| Structure | Type | 1+6 | 1+6 | 1+8 | 1+12 |
Loose tube | Max Fiber counts/tube | 6 | 12 | 12 | 12 |
| Outer diameter (mm) | 1.9±0.1 | 2.2±0.1 | 2.2±0.1 | 2.2±0.1 |
Central strength member | Material | FRP |
| Diameter (mm) | 1.4 | 1.6 | 2.0 | 2.2 |
| PE layer diameter (mm) | -- | -- | | 3.5 |
| Peripheral strength member | Material | FRP |
Sheath | Material | HDPE |
| Color | Black |
| Thickness (mm) | Nominal: 1.6 |
| Cable diameter(mm) Approx. | 9.8±0.2 | 10.0±0.2 | 10.5±0.3 | 11.8±0.3 |
| Cable weight(kg/km) Approx. | 85 | 89 | 99 | 124 |
Fiber parameter
| Parameter | Specification |
| MFD (1310nm) | 8.7~9.5 um |
| Cladding diameter | 125±1.0um |
| Fiber diameter | 235~255um, with UV coating, and colored to : 250±15um |
| Core/cladding concentricity error | ≤ 0.6um |
| Coating/cladding concentricity error | ≤ 12.0um |
| Cladding non circularity | ≤ 1.0% |
| Cut off wavelength | λcc ≤1260nm |
Attenuation coefficient |
1310nm: 0.35dB/km max after cabling 1550nm: 0.21dB/km max after
cabling |
Bending-loss performance of optical fiber @1310nm&1550nm |
≤0.05dB (100 turns around a mandrel of 50mm diameter) |
| Polarization mode dispersion maximum individual fibre |
≤0.2ps/√km |
| Polarization mode dispersion link value | ≤0.1ps/√km |
| Zero-dispersion wavelength | 1300~1324nm |
| Zero-dispersion slope | ≤0.092ps/nm2·km |
FAQ:
1.Are you a manufacturer or trade company?
Yes. We are a factory in Guangzhou,China
2.Do you provide samples? is it free or charched?
Yes, sample is available, It's free,just need to pay for the
freight
3.Do you accept small order?
Yes, small order is available .We support new project of our
customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5.Which kind of certification you have ?
ISO9001-2000
6.What is your delivery time?
Usually within 3-5 working days
7.What is your fiber brand?
Corning,YOFC ,Fiberhome
8.What is your payment way?
T/T, L/C, Western Union and Paypal.
9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your
requirements
