overhead Outdoor singlejacket multi cores Singlemode ADSS Fiber
Optic Cable
ADSS destricption
ADSS (All dielectric self-supporting optical fiber cable) - is a
special dielectric cable using an existing high voltage
transmission tower
set up with the power line. It has the advantages of low
engineering cost, convenient construction, high safety and easy
maintenance.
Power communication cable ADSS all-media self-supporting cable is a
popular cable that used all over the world.
Features
1. Low attenuation, low dispersion Proper design and precise excess
length control make the cable have outstandingmechanical and
environmental performance.
2. Non-metallic construction is convinence for cable laying without
cutoff the power systems .
3. High strength aramid yarn as strength member ensures high
tensile resistance, small diameter and light weight of the cable,
fitting for
different weather conditions and different installation spans.
4. Special AT(anti-tracking) outer sheath (optional) offers good
electro-erosion resisting performance.
Structure and Technical Specifications
1. ADSS single jacket
| fiber count | structure | fiber per tube | losse tube diameter (MM) | FRP/pad diameter (mm) | Thickness of outer jacket(mm) | Ref. Outer
Diameter
(mm) | Ref. Weight
(kg/km) |
| PE Jacket | AT Jacket |
| 4 | 1+6 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 9.8 | 83 | 93 |
| 6 | 1+6 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 9.8 | 83 | 93 |
| 8 | 1+6 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 9.8 | 83 | 93 |
| 12 | 1+6 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 9.8 | 83 | 93 |
| 24 | 1+6 | 6 | 2.0 | 2.0/2.0 | 1.7±0.1 | 9.8 | 86 | 96 |
| 48 | 1+6 | 12 | 2.0 | 2.0/2.0 | 1.7±0.1 | 10.0 | 89 | 99 |
| 72 | 1+6 | 12 | 2.2 | 2.0/2.0 | 1.7±0.1 | 10.5 | 99 | 109 |
| 96 | 1+8 | 12 | 2.2 | 2.0/3.4 | 1.7±0.1 | 12.0 | 124 | 136 |
| 144 | 1+12 | 12 | 2.2 | 3.0/7.2 | 1.7±0.1 | 15.2 | 176 | 189 |
Tips: all the specifications in the abolve table is approximate
data, for more detals specifications,
pls contact our salers.
2. ADSS double jacket
| fiber count | structure | fiber per tube | losse tube diameter (MM) | FRP/pad diameter (mm) | Thickness of outer jacket(mm) | Ref. Outer
Diameter
(mm) | Ref. Weight
(kg/km) |
| PE Jacket | AT Jacket |
| 4 | 1+6 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 6 | 1+6 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 8 | 1+6 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 12 | 1+6 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 24 | 1+6 | 6 | 2.0 | 2.0/2.0 | 1.7±0.1 | 12.0 | 128 | 138 |
| 48 | 1+6 | 12 | 2.0 | 2.0/2.0 | 1.7±0.1 | 12.5 | 130 | 140 |
| 72 | 1+6 | 12 | 2.2 | 2.0/2.0 | 1.7±0.1 | 13.2 | 145 | 155 |
| 96 | 1+8 | 12 | 2.2 | 2.0/3.4 | 1.7±0.1 | 14.5 | 185 | 195 |
| 144 | 1+12 | 12 | 2.2 | 3.0/7.2 | 1.7±0.1 | 16.5 | 212 | 228 |
Tips: all the specifications in the abolve table is approximate
data, for more detals specifications,
pls contact our salers.
Fiber type | Attenuation (+20℃) | Bandwidth | Optical cable cut-off wavelength |
|---|
@850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm |
|---|
| G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | ≤1260nm |
| G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | --- |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | ---
|

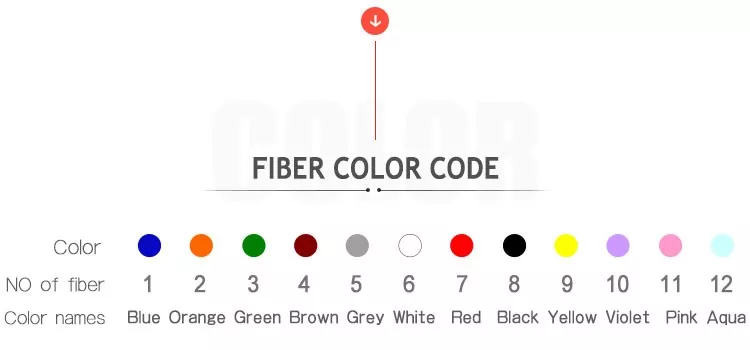

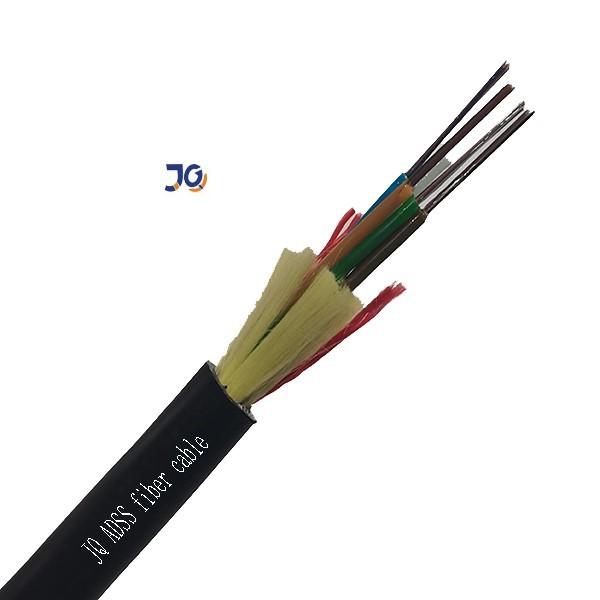

Details picture shows
single jacket ADSS fiber cable
double jacket ADSS fiber optic cable
Application of Fiber Optic Cable
1. LAN, WAN and Metro Networks
2. FTTH project & FTTX Deployments
3. CATV System
4. GPON, EPON
5. Fiber Optic Test Equipment
6. Data-base Transmit Broadband Net
- Telecommunication networks
- Data centers
- 40G to 10G transition
- CATV;
- Active device termination;
- Metro;
- Local Area Networks;
- Data processing networks
- Test equipment;
- Premise installation;
- Wide Area Networks
Packing:
