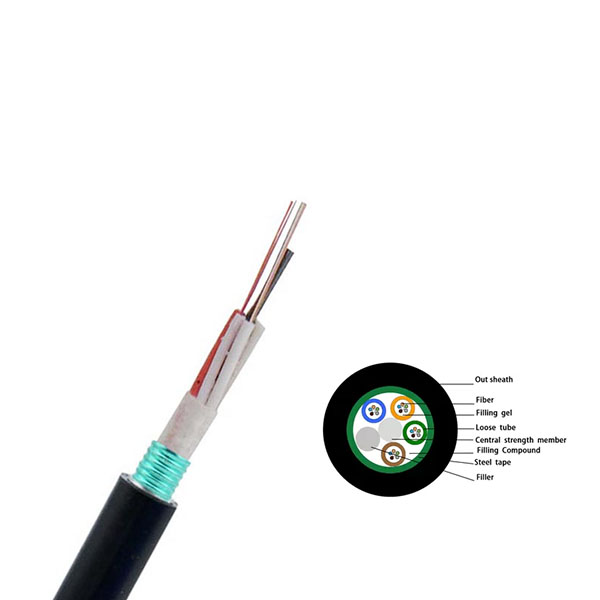

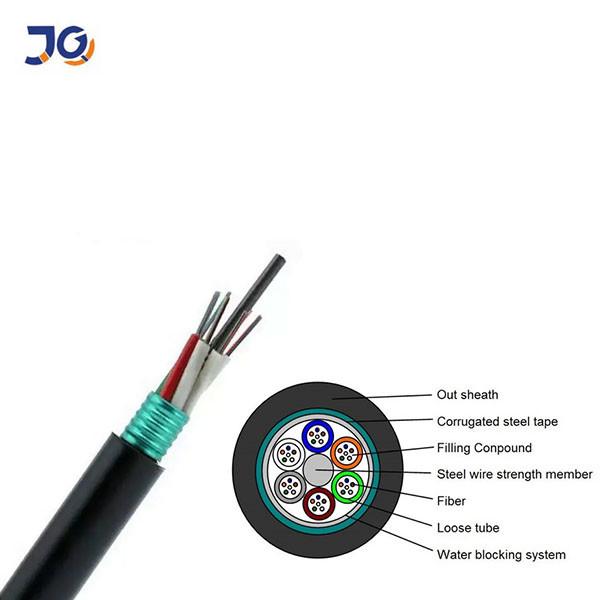

Outdoor Armored OS2 Single Mode Fiber Optic Cable 8 12 24 48 96 Cores



Fiber Optic G652D

Item		Unit	Specification
Fiber Type			G.652D
Mode field diameter	1310nm	μm	9.2±0.4
	1550nm	μm	10.4±0.8
Cladding diameter		μm	125.0±1
Cladding non-circularity		%	≤1.0
Core/cladding concentricity error		μm	≤0.5
Coating diameter		μm	245±5
Coating non-Circularity		%	≤6.0
Coating/cladding concentricity error		μm	≤12.0
Cable cut-off wavelength		nm	≤1260
Attenuation Coefficient	1310nm	dB/km	≤0.36
	1550nm	dB/km	≤0.22
Proof stress level		kpsi	≥100

Cable performance:

Item		Parameters
Fiber Count		24
No. of Fiber per tube	Dimension	250µm±15µm
	6 fibers	Color
		Blue,Orange,Green,Brown,Gray,Natural
Loose tube	Dimension	2.2±0.1mm
	Material	PBT
	4 tubes	Blue,Orange,Green,Brown,
Filler	Material	PE
	Color	Black
Central Strength Member	Dimension	1.6mm
	Material	Phosphating steel wire
Armoured	Material	Plastic coated steel strip/Aluminium
Outer jacket	Material	PE
	Color	Black

Company profile:

Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling
communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for 10 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or design any structure of fiber optic cable for you. The main products of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as North/South America, Europe, Mideast and Southeast Asia.Africa

Exhibition:

Certification:

FAQ:

1.Are you the real manufacturer?
Yes. We are the real manufacturer with 10years history.

2.What is your fiber brand ?
Jiqian
3.Do you provide samples?is it free or charged?Yes,samples are for free,just pay for freight

4.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

5.What is your warranty period?
25-30 years for outdoor fiber optic cable

6.Which kind of certification you have ?
ISO9001,FCC,ROHS,CE

7.What is your delivery time?
Usually 5-7 working days

8.What is your payment way?
T/T, L/C, Western Union

9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
