12 Core Outdoor Single Mode SM 9/125 G652D ADSS 12 Fiber Optic
Cable ADSS
What is ADSS Cable?
The All-Dielectric Self Supporting (ADSS) cable is a completely
non-metallic structure in which the tensile load bearing elements
are integral within the circular design of the cable - usually in
the form of aramid yarns or stranded glass reinforced plastic rods.
The fibres can be packaged in a variety of ways but are usually
placed in polymer tubes which are then protected within the overall
cable construction. (All-Dielectric Self-Supporting) cable is ideal
for installation in distribution as well as transmission
environments, even when live-line installations are required. As
its name indicates, there is no support or messenger wire required,
so installation is achieved in a single pass, making ADSS an
economical and simple means of achieving a fiber optic network.
advantages of ADSS
The use of ADSS fiber optic cable has lots of advantages. The
cables’ overall weight and diameter are small, which is good news
for towers and poles. Moisture and chemical attack are protected by
the rugged construction. It’s a versatile application that can be
used for most outdoor overhead deployments. The overall
transmission range is also sufficient. Once ADSS cable installation
is done, it will have a maximum service life of up to thirty years.
·Application
1. Electricity companies, telecommunications companies, railways
and private network groups for telecommunications
2. Designed for installation on distribution and transmission lines
3. Can be installed close to conductors
4. Ideal for underbuilt applications that require minimal downtime
5. For telecommunications networks that place a premium on quick,
low-cost setup
6. For FTTX applications such as FTTH (Fiber to the Home)
·Standards
ADSS cable complies with Standard IEEE P 1222 as well as IEC
60794-1.
Structure and Technical Specifications
1. ADSS single jacket
| fiber count | structure | fiber per tube | losse tube diameter (MM) | FRP/pad diameter (mm) | Thickness of outer jacket(mm) | Ref. Outer
Diameter
(mm) | Ref. Weight
(kg/km) |
| PE Jacket | AT Jacket |
| 4 | 1+5 | 4 | 1.95 | 2.0/2.0 | 1.7±0.1 | 9.8 | 80 | 90 |
| 6 | 1+5 | 6 | 1.95 | 2.0/2.0 | 1.7±0.1 | 9.8 | 80 | 90 |
| 8 | 1+5 | 4 | 1.95 | 2.0/2.0 | 1.7±0.1 | 9.8 | 80 | 90 |
| 12 | 1+5 | 6 | 1.95 | 2.0/2.0 | 1.7±0.1 | 9.8 | 80 | 90 |
| 24 | 1+5 | 6 | 2.0 | 2.0/2.0 | 1.7±0.1 | 9.8 | 85 | 95 |
| 48 | 1+5 | 12 | 2.0 | 2.0/2.0 | 1.7±0.1 | 10.0 | 88 | 98 |
| 72 | 1+6 | 12 | 2.2 | 2.0/2.0 | 1.7±0.1 | 10.5 | 98 | 108 |
| 96 | 1+8 | 12 | 2.2 | 2.0/3.4 | 1.7±0.1 | 12.0 | 122 | 135 |
| 144 | 1+12 | 12 | 2.2 | 3.0/7.2 | 1.7±0.1 | 15.2 | 176 | 189 |
Tips: all the specifications in the abolve table is approximate
data, for more detals specifications,
pls contact our salers.
2. ADSS double jacket
| fiber count | structure | fiber per tube | losse tube diameter (MM) | FRP/pad diameter (mm) | Thickness of outer jacket(mm) | Ref. Outer
Diameter
(mm) | Ref. Weight
(kg/km) |
| PE Jacket | AT Jacket |
| 4 | 1+5 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 6 | 1+5 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 8 | 1+5 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 12 | 1+5 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 24 | 1+5 | 6 | 2.0 | 2.0/2.0 | 1.7±0.1 | 12.0 | 128 | 138 |
| 48 | 1+5 | 12 | 2.0 | 2.0/2.0 | 1.7±0.1 | 12.5 | 130 | 140 |
| 72 | 1+6 | 12 | 2.2 | 2.0/2.0 | 1.7±0.1 | 13.2 | 145 | 155 |
| 96 | 1+8 | 12 | 2.2 | 2.0/3.4 | 1.7±0.1 | 14.5 | 185 | 195 |
| 144 | 1+12 | 12 | 2.2 | 3.0/7.2 | 1.7±0.1 | 16.5 | 212 | 228 |
Tips: all the specifications in the abolve table is approximate
data, for more detals specifications,
pls contact our salers.
Fiber type | Attenuation (+20℃) | Bandwidth | Optical cable cut-off wavelength |
|---|
@850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm |
|---|
| G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | ≤1260nm |
| G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | --- |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | ---
|
Details picture shows

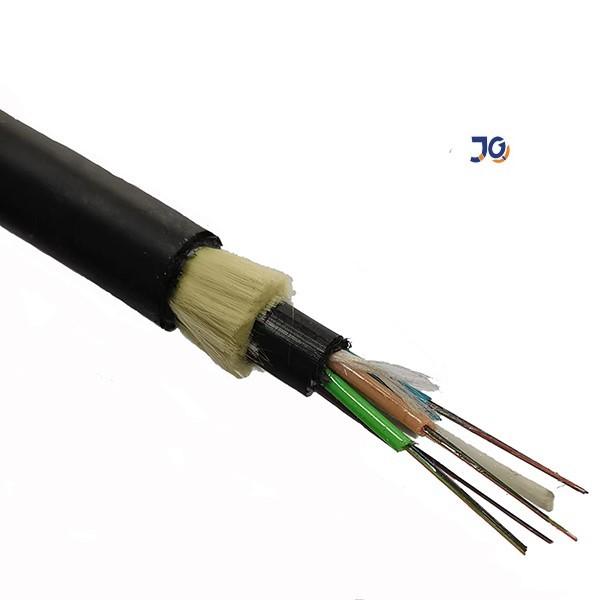

single jacket ADSS fiber cable
double jacket ADSS fiber optic cable
