Outdoor singlemode 12/24/48/96c overhead arerial GYTS Fiber Optic
Cable
Product Description
GYTS outdoor fiber optic cable is used for duct and aerial
applications. We supply single mode GYTS fiber optical cable and
multimode GYTS fiber optic cable, fiber strand from 2 cores to 144
cores. A related GYTA type cable is available. GYTS fiber optic
cable featuer the good mechanical and temperature performance. Its
tube filling compound to ensure a critical fiber protection. PE
sheath protects cable from ultraviolet radiation.
Features
• Steel wire strength.filler protect tube fiber.steel tape armord.
• Good ultra violet radiation resistant property.
• Good moisture-resistance.
Applications:
• Adopted to Outdoor distribution.
• Suitable for aerial .pipeline laying method.
• Long distance and local area network communication.
Optical Characteristics
| Items | Unit | Specification |
| G652D |
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 |
| Cladding Diameter | um | 124.8±0.7 |
| Cladding Non-Circularity | % | ≤0.7 |
| Core-Cladding Concentricity Error | um | ≤0.5 |
| Coating Diameter | um | 245±5 |
| Coating Non-Circularity | % | ≤6.0 |
| Cladding-Coating Concentricity Error | um | ≤12 |
| Cable Cutoff Wavelength | nm | acc≤1260 |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 |
Technical Parameters
Fiber
Count | Diameter
(MI) | Weight
(KG/KMI) | Min.Bend Radius | Mlin.Tension
(N) | Crush
(N/100MMl) |
| Static | Dynamic | Long Term | Short Term | Long Term | Short Term |
| 2-30 | 9.2 | 95 | 10
Times
of
Diameter
| 20
Times
of
Diameter
| 1500 | 600 | 1000 | 300 |
| 32-36 | 9.5 | 100 | 1500 | 600 | 1000 | 300 |
| 38-60 | 10.0 | 115 | 1500 | 600 | 1000 | 300 |
| 62-72 | 10.5 | 125 | 1500 | 600 | 1000 | 300 |
| 74-96 | 12.9 | 175 | 1500 | 600 | 1000 | 300 |
| 98-120 | 14.4 | 210 | 1500 | 600 | 1000 | 300 |
| 122-144 | 15.8 | 245 | 1500 | 600 | 1000 | 300 |
| 146-216 | 16.3 | 260 | 1500 | 600 | 1000 | 300 |
| 218-240 | 19.5 | 345 | 1500 | 600 | 1000 | 300 |
| 242-288 | 21.7 | 415 | 1500 | 600 | 1000 | 300 |

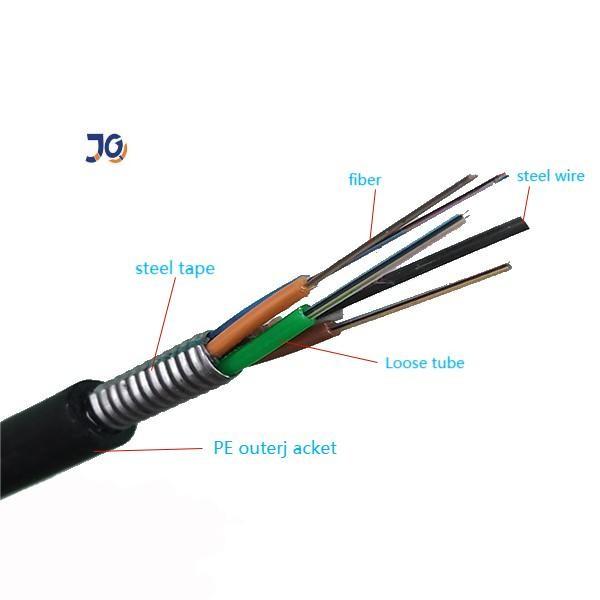

Detail product pictures
FAQ
1. Are you factory direct?
as a professional Cable manufacturer, specialized in Fiber Optic Cable, MPO Breakout Cable, Fiber Optic Patch Cord. Our products are mainly exported to Europe, South America, and
some other countries and areas.
2. What is your main products?
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop
cables ADSS
Indoor armored patch cords fiber cable Optical patch cords Sc LC FC
ST MTP MPO optical patch cord
3. Product quality guarantee period?
20 years Guarantee for fiber optic cable
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001
ROHS raw material suppliers
