single-mode 12/24 /48 core overhead armored GYTS GYTA outdoor
optical cable
Product Description
The mental strength member is made up of stranded steel wires as
the supporting part are completed with a polyethylene(PE) sheath to
be figure 8 structure. Corrugated steel tape armored and PE outer
sheath providing crush resistance and gun shot resistance features.
The steel-wire strength member as the central strength improves the
tensile strength and it is surrounded by the loose tube and water
blocking system. The impact structure ensures excellent mechanical
and environmental performance.
Features
The fibers, 250μm, are placed in a loose tube made of a high
modulus material. The tube is filled with a waterproof compound. At
the center of the cable is a metal reinforcing core. For some
cables, the metal reinforcing core may be coated with polyethylene
(PE). The loose sleeve (and filling rope) is twisted around the
central reinforcing core to form a compact and circular cable core.
The gaps in the cable core are filled with water-blocking filler.
Double - sided coated plastic steel tape (PSP) is longitudinally
wrapped and extruded with polyethylene sheath to form the cable.
Applications:
Long distance and local area network(LAN) communication.
Aerial & conduit/duct application.
Optical Characteristics
| Items | Unit | Specification |
| G652D |
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 |
| Cladding Diameter | um | 124.8±0.7 |
| Cladding Non-Circularity | % | ≤0.7 |
| Core-Cladding Concentricity Error | um | ≤0.5 |
| Coating Diameter | um | 245±5 |
| Coating Non-Circularity | % | ≤6.0 |
| Cladding-Coating Concentricity Error | um | ≤12 |
| Cable Cutoff Wavelength | nm | acc≤1260 |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 |
Technical Parameters
Fiber
Count | Diameter
(MI) | Weight
(KG/KMI) | Min.Bend Radius | Mlin.Tension
(N) | Crush
(N/100MMl) |
| Static | Dynamic | Long Term | Short Term | Long Term | Short Term |
| 2-30 | 9.2 | 95 | 10
Times
of
Diameter
| 20
Times
of
Diameter
| 1500 | 600 | 1000 | 300 |
| 32-36 | 9.5 | 100 | 1500 | 600 | 1000 | 300 |
| 38-60 | 10.0 | 115 | 1500 | 600 | 1000 | 300 |
| 62-72 | 10.5 | 125 | 1500 | 600 | 1000 | 300 |
| 74-96 | 12.9 | 175 | 1500 | 600 | 1000 | 300 |
| 98-120 | 14.4 | 210 | 1500 | 600 | 1000 | 300 |
| 122-144 | 15.8 | 245 | 1500 | 600 | 1000 | 300 |
| 146-216 | 16.3 | 260 | 1500 | 600 | 1000 | 300 |
| 218-240 | 19.5 | 345 | 1500 | 600 | 1000 | 300 |
| 242-288 | 21.7 | 415 | 1500 | 600 | 1000 | 300 |

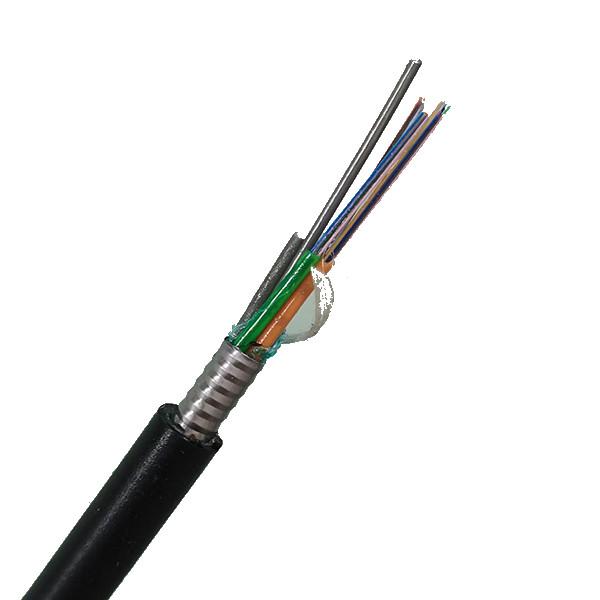

Detail product pictures
GYTS
GYTA
FAQ
1. Are you factory direct?
as a professional Cable manufacturer, specialized in Fiber Optic Cable, MPO Breakout Cable, Fiber Optic Patch Cord. Our products are mainly exported to Europe, South America, and
some other countries and areas.
2. What is your main products?
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop
cables ADSS
Indoor armored patch cords fiber cable Optical patch cords Sc LC FC
ST MTP MPO optical patch cord
3. Product quality guarantee period?
20 years Guarantee for fiber optic cable
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001
ROHS raw material suppliers
