Non metal FRP strength number aerial singlemode GYFTY Fiber Optic
Cable

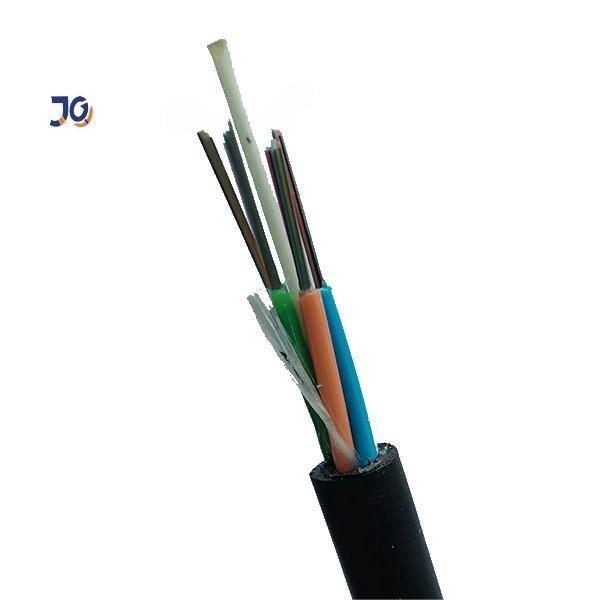

Product Description
The fibers, are positioned in a loose tube made of a high modulus
plastic. The tubes are filled with a water-resistant filling
compound. A Fiber Reinforced Plastic (FRP) locates in the center of
core as a non-metallic strength member. The tubes (and fillers) are
stranded around the strength member into a compact and circular
core. The cable core is wrapped with the water blocking tape to
protect it from water ingress, then the cable is completed with a
PE sheath.
Features
Good mechanical and temperature performance
High strength looes tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
Loose tube filling compound
Applications:
• Adopted to Outdoor distribution.
• Suitable for aerial .pipeline laying method.
• Long distance and local area network communication.
Optical Characteristics
| Items | Unit | Specification |
| G652D |
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 |
| Cladding Diameter | um | 124.8±0.7 |
| Cladding Non-Circularity | % | ≤0.7 |
| Core-Cladding Concentricity Error | um | ≤0.5 |
| Coating Diameter | um | 245±5 |
| Coating Non-Circularity | % | ≤6.0 |
| Cladding-Coating Concentricity Error | um | ≤12 |
| Cable Cutoff Wavelength | nm | acc≤1260 |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 |
Technical Parameters
Fiber
Count | Diameter
(MI) | Weight
(KG/KMI) | Min.Bend Radius | Mlin.Tension
(N) | Crush
(N/100MMl) |
| Static | Dynamic | Long Term | Short Term | Long Term | Short Term |
| 2-30 | 8.8 | 88 | 10
Times
of
Diameter
| 20
Times
of
Diameter
| 1500 | 800 | 1000 | 500 |
| 32-36 | 9.0 | 95 | 1500 | 800 | 1000 | 500 |
| 38-60 | 9.2 | 98 | 1500 | 800 | 1000 | 500 |
| 62-72 | 9.5 | 105 | 1500 | 800 | 1000 | 500 |
| 74-96 | 10.5 | 118 | 1500 | 1000 | 1000 | 500 |
| 98-120 | 11.8 | 145 | 2000 | 1500 | 1000 | 500 |
| 122-144 | 14.2 | 165 | 2000 | 1500 | 1000 | 500 |
| 146-216 | 16.3 | 225 | 2000 | 1500 | 1000 | 500 |
| 218-240 | 18.5 | 305 | 2000 | 1500 | 1000 | 500 |
| 242-288 | 22.7 | 395 | 2500 | 2000 | 1000 | 500 |
Tips: all the data ablove is reference to our factory, pls contact
Philip for more details , WA:008613422342788
Detail product pictures
Picture shows about the GYFTY-48 C
FAQ
1. Are you factory direct?
as a professional Cable manufacturer, specialized in Fiber Optic Cable, MPO Breakout Cable, Fiber Optic Patch Cord. Our products are mainly exported to Europe, South America, and
some other countries and areas.
2. What is your main products?
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop
cables ADSS
Indoor armored patch cords fiber cable Optical patch cords Sc LC FC
ST MTP MPO optical patch cord
3. Product quality guarantee period?
20 years Guarantee for fiber optic cable
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001
ROHS raw material suppliers
