Aerial Duct GYFTY g625d 12 24 48 Core Fiber Optical Cable with FRP
Strength Member
Product Description
GYFTY (non-metallic strengthening member, loose tube stranded and
filled, polyethylene sheathed outdoor optical fiber cable for
communication) The structure of the optical cable is to sheath a
single-mode or multi-mode optical fiber into a high-modulus plastic
filled with waterproof compound loose In the casing. The center of
the cable core is a non-metallic reinforced core (FRP). For certain
fiber optic cables, a layer of polyethylene (PE) is extruded
outside the non-metallic reinforced core or a non-metallic
reinforced yarn is added to the cable core. line. The loose tube
(and filling rope) is twisted around the central reinforcing core
to form a compact and circular cable core. The gaps in the cable
core are filled with water blocking compounds and polyethylene
sheaths.
Features
– Light weight, small diameter, easy to lay.
– Excellent mechanical and temperature performance.
– Low dispersion and attenuation.
– Special filling get filled loose tubes provide perfect optical
fiber protection.
– Non-metal central strength has a excellent anti-electromagnetic
ability.
– Water blocking system provide reliable performance of
moisture-proof and water block.
– The fiber reinforced plastic and loose tube filling compound can
ensure the cable watertight.
Applications:
1. Outdoor aerial and duct application;
2· Long haul communication system;
3· Subscriber and local area network;
4· Voice,data,video and image system.
Optical Characteristics
| Items | Unit | Specification |
| G652D |
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 |
| Cladding Diameter | um | 124.8±0.7 |
| Cladding Non-Circularity | % | ≤0.7 |
| Core-Cladding Concentricity Error | um | ≤0.5 |
| Coating Diameter | um | 245±5 |
| Coating Non-Circularity | % | ≤6.0 |
| Cladding-Coating Concentricity Error | um | ≤12 |
| Cable Cutoff Wavelength | nm | acc≤1260 |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 |
Technical Parameters
Fiber
Count | Diameter
(MI) | Weight
(KG/KMI) | Min.Bend Radius | Mlin.Tension
(N) | Crush
(N/100MMl) |
| Static | Dynamic | Long Term | Short Term | Long Term | Short Term |
| 2-30 | 8.8 | 88 | 10
Times
Diameter
| 20
Times
Diameter
| 1500 | 800 | 1000 | 500 |
| 32-36 | 9.0 | 95 | 1500 | 800 | 1000 | 500 |
| 38-60 | 9.2 | 98 | 1500 | 800 | 1000 | 500 |
| 62-72 | 9.5 | 105 | 1500 | 800 | 1000 | 500 |
| 74-96 | 10.5 | 118 | 1500 | 1000 | 1000 | 500 |
| 98-120 | 11.8 | 145 | 2000 | 1500 | 1000 | 500 |
| 122-144 | 14.2 | 165 | 2000 | 1500 | 1000 | 500 |
| 146-216 | 16.3 | 225 | 2000 | 1500 | 1000 | 500 |
| 218-240 | 18.5 | 305 | 2000 | 1500 | 1000 | 500 |
| 242-288 | 22.7 | 395 | 2500 | 2000 | 1000 | 500 |
Tips: all the data ablove is reference to our factory, pls contact
Philip for more details , WA:008613422342788
Detail product pictures

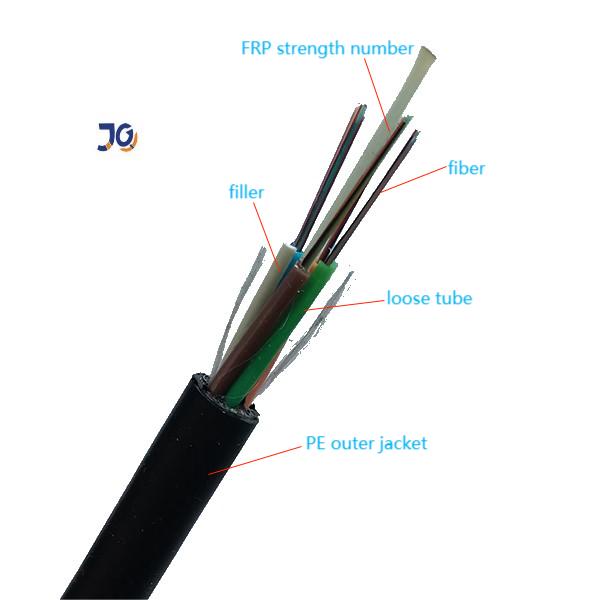

Picture shows about the GYFTY-48 C
FAQ
1. Are you factory direct?
as a professional Cable manufacturer, specialized in Fiber Optic Cable, MPO Breakout Cable, Fiber Optic Patch Cord. Our products are mainly exported to Europe, South America, and
some other countries and areas.
2. What is your main products?
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop
cables ADSS
Indoor armored patch cords fiber cable Optical patch cords Sc LC FC
ST MTP MPO optical patch cord
3. Product quality guarantee period?
20 years Guarantee for fiber optic cable
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001
ROHS raw material suppliers
