Outdoor single model Aerial GYFTY g625d 24 48 Core Fiber Optical
Cable with FRP Strength
Product Description
GYFTY (non-metallic strengthening member, loose tube stranded and
filled, polyethylene sheathed outdoor optical fiber cable for
communication) The structure of the optical cable is to sheath a
single-mode or multi-mode optical fiber into a high-modulus plastic
filled with waterproof compound loose In the casing. The center of
the cable core is a non-metallic reinforced core (FRP). For certain
fiber optic cables, a layer of polyethylene (PE) is extruded
outside the non-metallic reinforced core or a non-metallic
reinforced yarn is added to the cable core. line. The loose tube
(and filling rope) is twisted around the central reinforcing core
to form a compact and circular cable core. The gaps in the cable
core are filled with water blocking compounds and polyethylene
sheaths.
Features
– Light weight, small diameter, easy to lay.
– Excellent mechanical and temperature performance.
– Low dispersion and attenuation.
– Special filling get filled loose tubes provide perfect optical
fiber protection.
– Non-metal central strength has a excellent anti-electromagnetic
ability.
– Water blocking system provide reliable performance of
moisture-proof and water block.
– The fiber reinforced plastic and loose tube filling compound can
ensure the cable watertight.
Applications:
1. Outdoor aerial and duct application;
2· Long haul communication system;
3· Subscriber and local area network;
4· Voice,data,video and image system.
Optical Characteristics
| Items | Unit | Specification |
| G652D |
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 |
| Cladding Diameter | um | 124.8±0.7 |
| Cladding Non-Circularity | % | ≤0.7 |
| Core-Cladding Concentricity Error | um | ≤0.5 |
| Coating Diameter | um | 245±5 |
| Coating Non-Circularity | % | ≤6.0 |
| Cladding-Coating Concentricity Error | um | ≤12 |
| Cable Cutoff Wavelength | nm | acc≤1260 |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 |
Technical Parameters
Fiber
Count | Diameter
(MI) | Weight
(KG/KMI) | Min.Bend Radius | Mlin.Tension
(N) | Crush
(N/100MMl) |
| Static | Dynamic | Long Term | Short Term | Long Term | Short Term |
| 2-30 | 8.8 | 88 | 10
Times
Diameter
| 20
Times
Diameter
| 1500 | 800 | 1000 | 500 |
| 32-36 | 9.0 | 95 | 1500 | 800 | 1000 | 500 |
| 38-60 | 9.2 | 98 | 1500 | 800 | 1000 | 500 |
| 62-72 | 9.5 | 105 | 1500 | 800 | 1000 | 500 |
| 74-96 | 10.5 | 118 | 1500 | 1000 | 1000 | 500 |
| 98-120 | 11.8 | 145 | 2000 | 1500 | 1000 | 500 |
| 122-144 | 14.2 | 165 | 2000 | 1500 | 1000 | 500 |
| 146-216 | 16.3 | 225 | 2000 | 1500 | 1000 | 500 |
| 218-240 | 18.5 | 305 | 2000 | 1500 | 1000 | 500 |
| 242-288 | 22.7 | 395 | 2500 | 2000 | 1000 | 500 |
Tips: all the data ablove is reference to our factory, pls contact
Philip for more details , WA:008613422342788
Detail product pictures

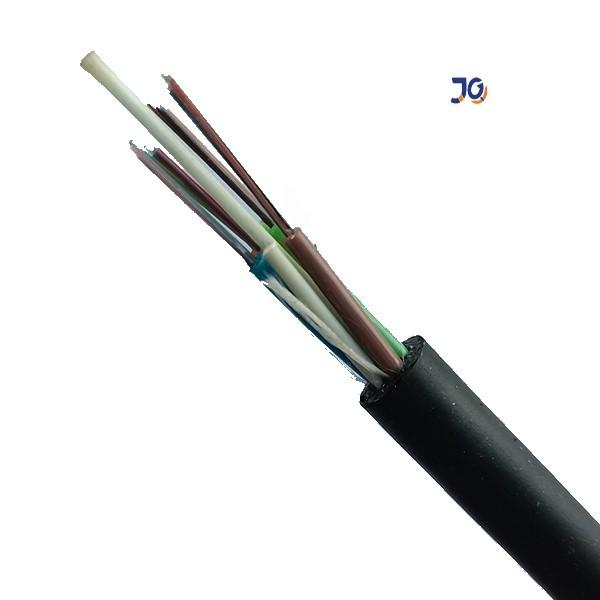

Picture shows about the GYFTY-48 C
FAQ
Q1: How the warranty for products ?
A: 10 years,and maintance for whole life
Q2: Can we make OEM for products?
A: Yes, we can print your logo or label on the products or on the
box.
Q3: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay
for the shipping cost.
Q4: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our
products were 100% tested before the shipment.
