Anti Rodent Double PE 2-144 Core G652D Direct Buried Fiber Optic
Cable GYTA53 GYTS53
Product Description
GYTA53 cable is a type of cable based on GYTA with an extra layer
of armor and PE sheath. GYTA53 cable is a type of cable that can be
directly buried, which can accommodate 2 to 288 cores and is widely

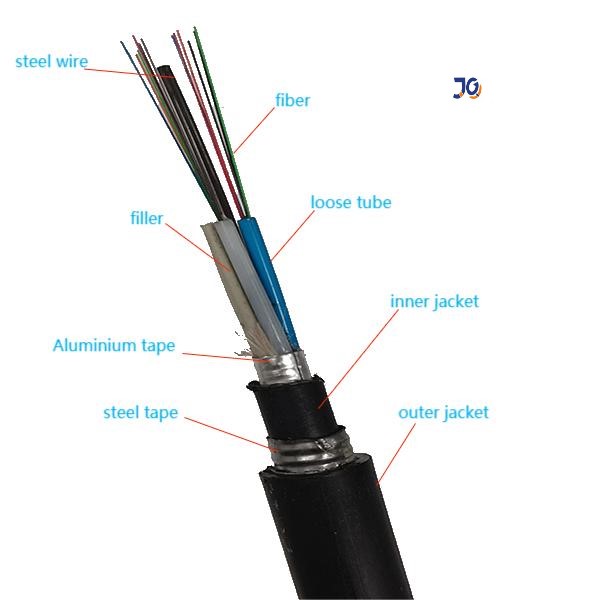

used in various areas that need to be buried. The structure of
GYTA53 fiber optic cable is to integrate 250. The m fiber is placed
in a loose tube made of a high modulus material, and the tube is
filled with a waterproof compound. At the center of the cable core
is a metal reinforcing core, which for some fiber optic cables
requires a layer of polyethylene (PE). The loose sleeve (and
filling rope) is twisted around the central reinforcing core to
form a compact and circular cable core. The gaps in the cable core
are filled with water-blocking filler. A polyethylene inner sheath
is extruded after the APL is longitudinally coated, and a
polyethylene sheath is extruded after the PSP is longitudinally
coated to form the cable.
1. Long distance and Local Area Network (LAN) communication.
2. Suitable for direct buired or pipeline laying method.
Specification & Features
Whole section water blocking structure ensures good water blocking
performance. Metallic or FRP strength member makes cable have
better tensile strength.
The armored layer strengthens tensile strength and improves crush
resistance. Polyethylene sheath has good UV resistance. The service
life of the product is more than 30 years
The reason why Choose us:
1. On time delivery
2. Customization
3. Factory outlet
4. Large product inventory with massive production line
5. Quality guarantee
6. Product distribution involves multi-fields, dozens of countries
including some developed countries.
Optical Characteristics
| Items | Unit | Specification |
| G652D |
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 |
| Cladding Diameter | um | 124.8±0.7 |
| Cladding Non-Circularity | % | ≤0.7 |
| Core-Cladding Concentricity Error | um | ≤0.5 |
| Coating Diameter | um | 245±5 |
| Coating Non-Circularity | % | ≤6.0 |
| Cladding-Coating Concentricity Error | um | ≤12 |
| Cable Cutoff Wavelength | nm | acc≤1260 |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 |
Technical Parameters
Fiber
Count | Diameter
(MI) | Weight
(KG/KMI) | Min.Bend Radius | Mlin.Tension
(N) | Crush
(N/100MMl) |
| Static | Dynamic | Long Term | Short Term | Long Term | Short Term |
| 2-24 | 12.0 | 180 |
10 times Diameter
| 20 Times
Diameter
| 1000 | 3000 | 1000 | 3000 |
| 26-36 | 12.2 | 195 | 1000 | 3000 | 1000 | 3000 |
| 38-60 | 12.5 | 205 | 1000 | 3000 | 1000 | 3000 |
| 62-72 | 12.8 | 225 | 1000 | 3000 | 1000 | 3000 |
| 74-96 | 13.5 | 245 | 1000 | 3000 | 1000 | 3000 |
| 98-120 | 14.4 | 275 | 1000 | 3000 | 1000 | 3000 |
| 122-144 | 16.5 | 315 | 1000 | 3000 | 1000 | 3000 |
Product showes
FAQ
1. Are you factory direct?
as a professional Cable manufacturer, specialized in Fiber Optic Cable, MPO Breakout Cable, Fiber Optic Patch Cord. Our products are mainly exported to Europe, South America, and
some other countries and areas.
2. What is your main products?
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop
cables ADSS
Indoor armored patch cords fiber cable Optical patch cords Sc LC FC
ST MTP MPO optical patch cord
3. Product quality guarantee period?
20 years Guarantee for fiber optic cable
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001
ROHS raw material suppliers
