GYTA33 directly burial underwater fiber cable
Product Description
▶ GYTA33 optical cable is a type of armored loose tube cable commonly
used in outdoor installations. It is designed to provide
high-performance fiber optic connectivity in harsh environments.
GYTA33 cables consist of multiple optical fibers encased in a
protective outer jacket, providing durability and protection
against various external factors.
▶ Mechanical Protection: GYTA33 optical cables are designed with an
armored construction, which provides excellent mechanical
protection to the enclosed optical fibers. The armored layer
consists of steel wires or steel tapes that offer resistance
against crushing, impact, and rodent attacks. This makes GYTA33
cables ideal for installations in rugged environments where
protection against physical damage is crucial.
▶ Enhanced Durability: The outer jacket of GYTA33 cables is made from
high-quality materials such as polyethylene (PE) or polyvinyl
chloride (PVC). These materials offer superior resistance to
moisture, UV radiation, chemicals, and temperature variations. As a
result, GYTA33 cables can withstand harsh outdoor conditions,
including extreme temperatures, sunlight exposure, and moisture
ingress, ensuring long-term reliability.
Features
Whole section water blocking structure ensures good water blocking
performance Special tube filling compound ensure a critical
protection of fiber Accurate residual length control ensures that
cable has good tensile and temperature performance The armor by
smooth round steel wire greatly strengthens the tensile strength and improves the crush resistance of fiber optical
cable Polyethylene sheath has good radiation resistance The service
life of the product is more than 30 years.
Applications:
• Adopted to Outdoor distribution.
• Suitable for directly burial aying method.
• Suitable for water and submarine area.
Optical Characteristics
| Items | Unit | Specification |
| G652D |
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 |
| Cladding Diameter | um | 124.8±0.7 |
| Cladding Non-Circularity | % | ≤0.7 |
| Core-Cladding Concentricity Error | um | ≤0.5 |
| Coating Diameter | um | 245±5 |
| Coating Non-Circularity | % | ≤6.0 |
| Cladding-Coating Concentricity Error | um | ≤12 |
| Cable Cutoff Wavelength | nm | acc≤1260 |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 |
Technical Parameters
Fiber
Count | Diameter
(MI) | Weight
(KG/KMI) | Min.Bend Radius | Mlin.Tension
(N) | Crush
(N/100MMl) |
| Static | Dynamic | Long Term | Short Term | Long Term | Short Term |
| 2-30 | 13.5 | 245 | 10
Times
Diameter
| 20
Times
Diameter
| 4000 | 10000 | 3000 | 5000 |
| 32-36 | 13.8 | 252 | 4000 | 10000 | 3000 | 5000 |
| 38-60 | 14.5 | 275 | 4000 | 10000 | 3000 | 5000 |
| 62-72 | 15.0 | 285 | 4000 | 10000 | 3000 | 5000 |
| 74-96 | 15.5 | 295 | 4000 | 10000 | 3000 | 5000 |
| 98-120 | 16.0 | 305 | 4000 | 10000 | 3000 | 5000 |
| 122-144 | 17.0 | 315 | 4000 | 10000 | 3000 | 5000 |
| 146-216 | 19.0 | 345 | 4000 | 10000 | 3000 | 5000 |
| 218-240 | 20.5 | 365 | 4000 | 10000 | 3000 | 5000 |
| 242-288 | 21.5 | 395 | 4000 | 10000 | 3000 | 5000 |
Tips: all the data ablove is reference to our factory, pls contact
Philip for more details , WA:008613422342788
Detail product pictures

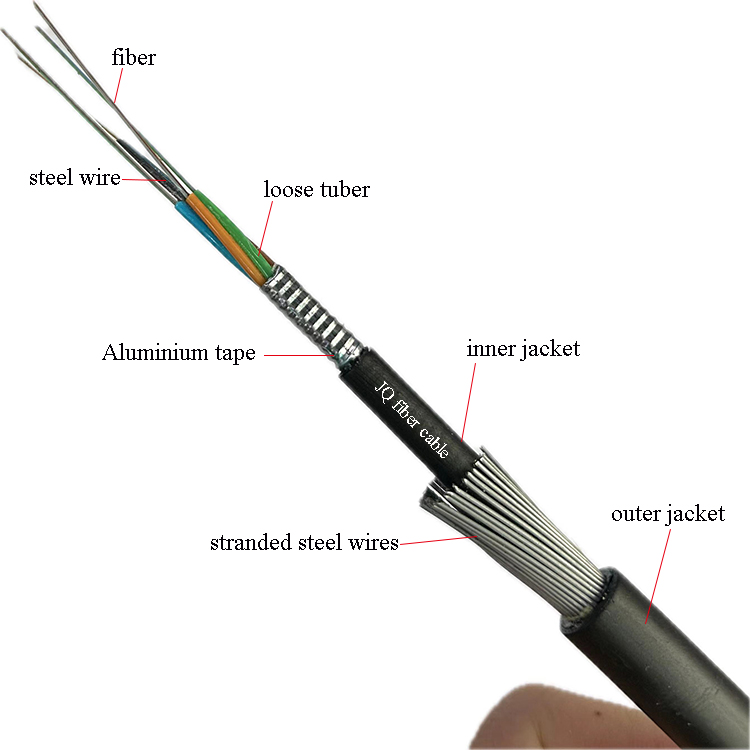

Picture shows about the GYTA33 fiber cable
FAQ
Q1: How the warranty for products ?
A: 10 years,and maintance for whole life
Q2: Can we make OEM for products?
A: Yes, we can print your logo or label on the products or on the
box.
Q3: Can you provide free samples ?
A: you can get free samples from my company.
Q4: Are you factory direct?
A:we are a professional Cable manufacturer, specialized in Fiber
Optic Cable, such as ADSS, , MPO Breakout Cable, Fiber Optic Patch
Cord. Our products are mainly exported to Europe, South America,
and some other countries and areas.
Q5: What is your main products?
A:Outdoor fiber optic cables such as GYTA33/GYXTC8Y/ADSS ,GYTA, GYFTS, ASU, GYXTW / indoor fiber optic cables /FTTH Drop cables
Q6: Do you have certificate for raw material?
A:We build long-term relationship cooperation with qualified
ISO9001 ROHS raw material suppliers
A: Some of low value samples can be free for you, but you need pay
for the shipping cost.
Q4: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our
products were 100% tested before the shipment.
