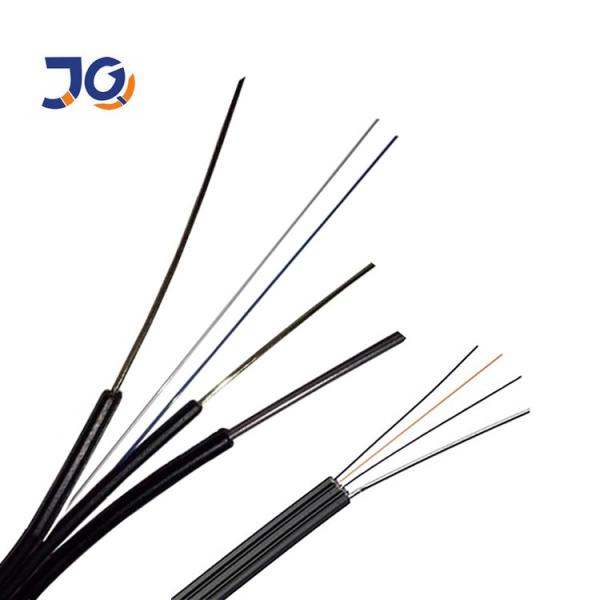

FTTH 2 Core Self-support LSZH Jacket GJYXCH GJYXFCH Outdoor FTTH
Cable
1. Soft and bendable, easy to deploy and maintenance.
2. Smaller diameter, Light weight, and high practicability.
3. Fiber reinforced plastic as the strength member ensures
excellent anti-electromagnetic performance.
4. Environmental protection- Low smoke, zero halogen and flame
retardant sheath.
Applications
1. Used in access network or as access cable from outdoor to indoor
in customer premises network;
2. Used as access building cable in premises distribution system,
especially used in indoor or outdoor
Item | Technology parameter |
Cable type | GJYXCH-1B6 | GJYXCH-2B6 | GJYXCH-4B6 |
Cable specification | 5.2×2.0 |
Fiber type | 9/125 (G.657A2) |
Fiber counts | 1 | 2 | 4 |
Fiber color | Red | Blue, orange | Blue, orange, green, brown |
Sheath color | Black |
Sheath material | LSZH |
Cable dimension mm | 5.2(±0.2)*2.0(±0.2) |
Cable weight Kg/km | Approx. 19.5 |
Min. bending radius mm | 120 |
Min. bending radius mm
(Excluding messenger wire) | 10 (Static)
25 (Dynamic) |
Attenuation dB/km | ≦ 0.4 at 1310nm, ≦ 0.3 at 1550nm |
Short term tensile N | 600 |
Long term tensile N | 300 |
Short term crush N/100mm | 2200 |
Long term crush N/100mm | 1100 |
Operation temperature ℃ | -20~+60 |
Factory:
company profile:
Guangzhou jiqian fiber optical cable co., LTD is located in
guangzhou city, guangdong province mingying west 2 road industrial
zone, xintang town, is a collection of scientific research,
development, production, sales for the integration of large-scale
specialization of high-tech joint-stock enterprise, specializing in
the production of various specifications of 2-288 core
cable.COMPANY PROFILE
FAQ:
1. Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us!
2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is
available
3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express
freight.
4.What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.
5.Delivery time?
Generally 3-7 working days, also it is according to qty.
6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.
