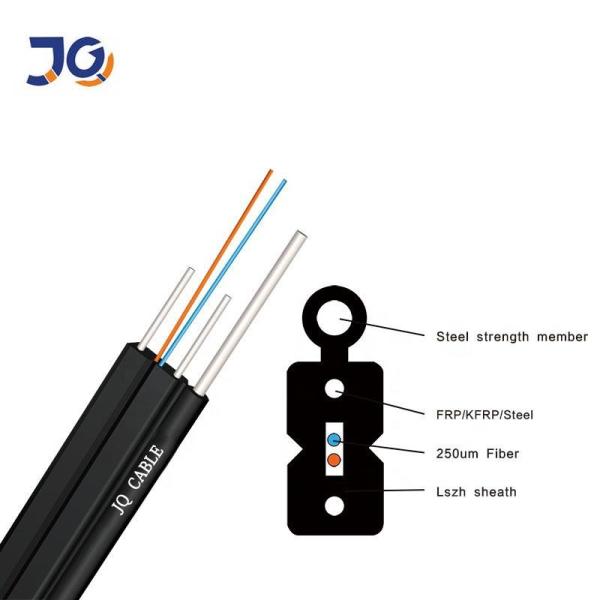

Outdoor Self-Supporting G657A Or G652D 1 2 4 Core Ftth Fiber Drop
Cable
Features
1, High tensile of the diameter 1.0mm steel wire meet the
requirement of self-supporting and reducing the installation cost.

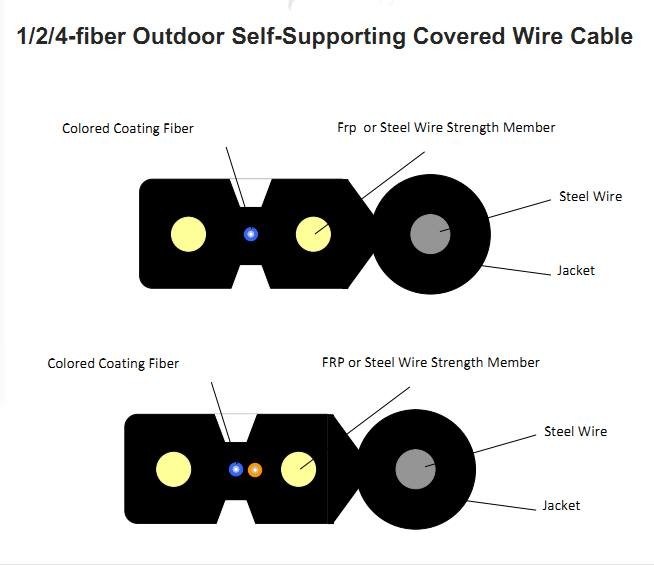

2, Two parallel FRP/ steel wire strength members ensure good
performance of crush resistance to protect the fiber
3, Novel flute design, easily strip and splice, simplify the
installation and maintenance
4, Low smoke zero halogen and flame retardant sheath
5, (2.0±0.2)x(5.0±0.2)mm
6, Compliant with Telcordia GR-326-CORE specification
Product detail
Technical parameters
Product
Model | Fiber
Count
(core) | CableDiameter(mm) | CableWeight
(kg/km) | Tensile
Strength
Long/Short
Term(N) | Crush
Resistance
Long/Short
Term(N) | Bending
Radius
Static/
Dynamic |
| GJXH | 1 | (2.1+0.1)*(3.1+0.1) | 10 | 1000/2200 | 200/1000 | 15/30 |
| GJXH | 2 | (2.1+0.1)x(3.1+0.1) | 10 | 1000/2200 | 200/1000 | 15/30 |
| GJXH | 4 | (2.3+0.1)*(3.3+0.1) | 12 | 1000/2200 | 200/1000 | |15/30 |
| GJXFH | 1 | (2.1+0.1)x<(3.1+0.1) | 9 | 800/1800 | 200/1000 | 15/30 |
| GJXFH | 2 | (2.1+0.1)x(3.1+0.1) | 9 | 800/1800 | 200/1000 | 15/30 |
| GJXFH | 4 | (2.1+0.1)x(3.1+0.1) | 11 | 800/1800 | 200/1000 | 15/30 |
| GJYXCH | 1 | (2.1+0.1)*(5.1+0.1) | 21 | 1500/2500 | 500/1300 | 15/30 |
| GJYXCH | 2 | (2.1+0.1)*(5.1+0.1) | 21 | 1500/2500 | 500/1300 | |15/30 |
| GJYXCH | 4 | (2.1+0.1)x(5.1+0.1) | 21 | 1500/2500 | 500/1300 | 15/30 |
| GJYXFCH | 1 | (2.1+0.1)*(5.1+0.1) | 20 | 1500/2500 | 500/1300 | 15/30 |
| GJYXFCH | 2 | (2.1+0.1)x(5.1+0.1) | 20 | 1500/2500 | 500/1300 | 15/30 |
| GJYXFCH | 4 | (2.1+0.1)x(5.1+0.1) | 20 | 1500/2500 | 500/1300 | 15/30 |
Package
Nominal shipping length of the cable will be 1~3 km. Other length
is also available if required by buyer.
Each length of the cable will be wound on a separate strong
wooden.one drum in a carton box
FAQ
1.Are you trading company or manufacturer?
We are the manufacturer with 10 years' experience ,we are
specialized in research,development and production
for fiber optic cable,drop cable and path cord ect. Our factory is
in Guangzhou city,welcome to visit us!
2.About the quality?
We will delivery before tested every fibers when finished
production.
After price confirmation, you can require for free samples to check our quality.
3.Can you accept small order?
Yes, small order is available. We support new project of our
customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order
quantity.
But pls be assured that we will arrange your goods asap after your
payment .
5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the
product. Any idea from you is available.
