Singlemode Simplex/Duplex SC/APC SC/UPC Connector Fiber Optic Patch
Cord

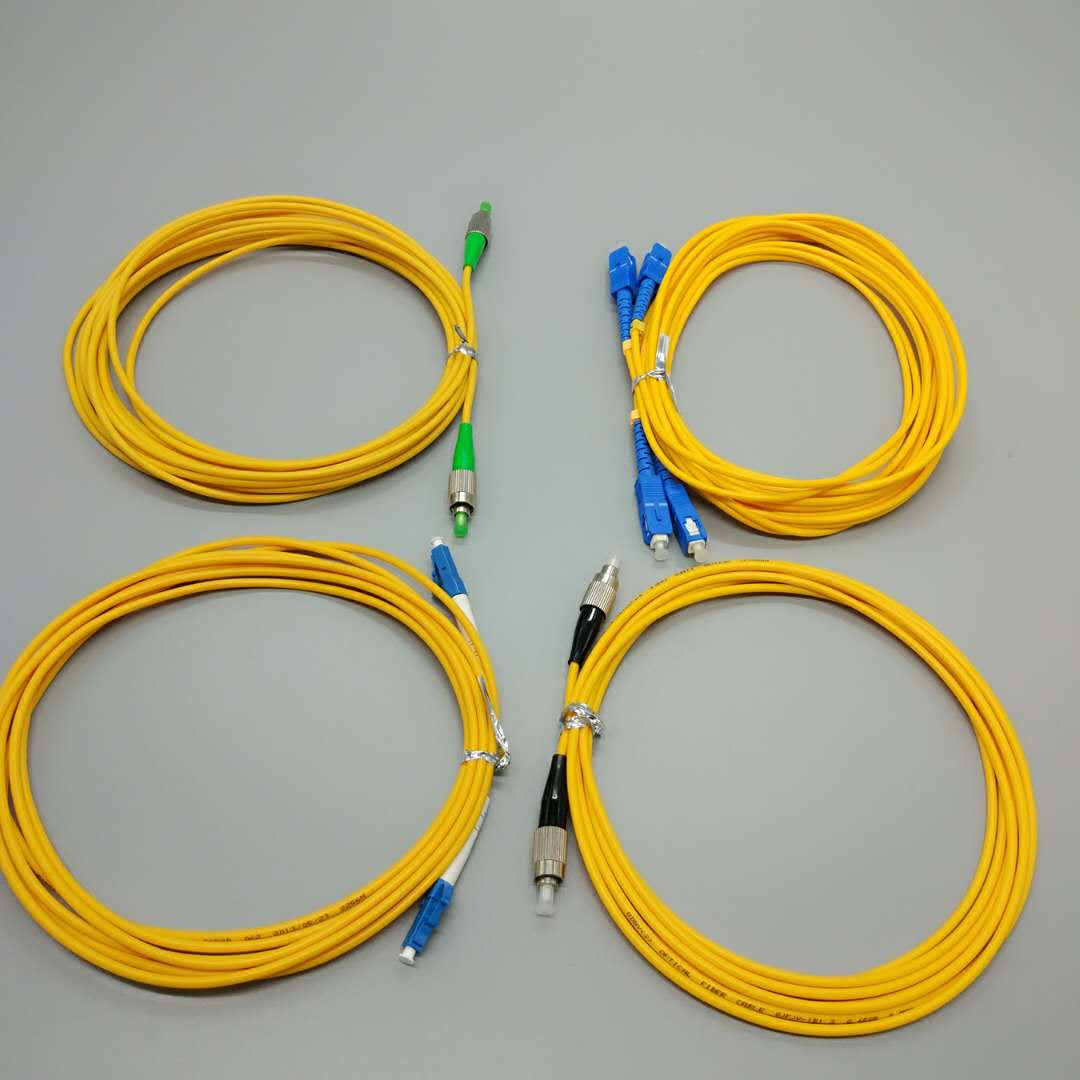

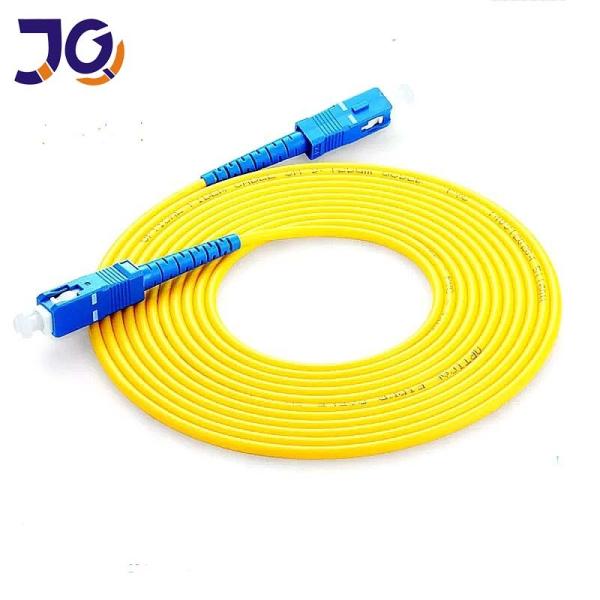

Product Description
fiber optic patch cord is a fiber optic cable capped at either end
with connectors that allow it to be rapidly and conveniently
connected toCATV,an optical switch,or other telecommunication
equipment. Having a thick layer of protection, it is used to
connect the optical transmitter,optical receiver,and terminal
box.This is known as "interconnect-style cabling".Fiber Optic Patch
cords are ultra reliable components featuring low insertion loss
and return loss. They come with your choice of simplex or duplex
cable configuration .Extensive range of fiber patch cables are
terminated with state of the art connectors and available in any
combination of ST, SC, LC and MTRJ with PC, UPC or APC polish types
to meet your standard or custom configurations.
Feature
Low Insertion loss
High return loss
Good Repeatability
Good Interchange
Excellent Environmental Adaptability
Optical Characteristics
Parameter |
PC |
UPC |
APC |
Multi-mode |
Insertion loss |
≤0.3dB |
≤0.3dB |
≤0.3dB |
≤0.3dB |
Return loss |
≥40dB |
≥50dB |
≥60dB |
≥35dB |
Exchange |
≤0.2dB |
Repeatability |
≤0.2dB |
Servicelife |
>1000times |
Tensile strength |
>10kg |
Temperature range |
-40°C to +85°C |
Technical Data
Type |
Standard,Master |
Style |
LC,SC,ST,FC.MU,DIN,MPO,SC/APC, FC/APC,LC/APC.MU/APC |
Fiber |
Singlemode/Multimode 50/125,62.5/125(Multi mode) OM2&OM1 50/125,10G(Multi mode)OM3 |
Cable |
Simplex,Duplex outer diameter:3.0mm,20mm,0.9mm PVC or LSZH |
Polishing Manner |
UPC,SPC,APC(8°&6°) |
Insertion Loss |
≤0.1dB (For Single mode Master) ≤0.25dB (For Single mode Standard) ≤0.25dB (ForMultimode) Tested by JDSRM3750 |
Return Loss (Single mode) |
UPC≥50dB SPC≥55dB APC≥60dB (typ.65dB) Tested by JDSRM3750 |
Repeat ability |
≤0.1dB |
Operating temperature |
-400 C° to 850 C° |
Geometry Requirement (Single mode) |
Ferrule Endface Radius 7mm≤R≤12mm (For APC) 10mm≤R≤25mm (For Standard) Apex Offset≤30μm (For Master) Apex Offset≤50μm (For Standard) Under cut-50nm SU≤50nm Tested by DORCZX-1 |
Application
Communication rooms
FTTH (Fiber to The Home)
LAN (Local Area Network)
FOS(fiber optic sensor)
Fiber Optic Communication System
Optical fiber connected and transmitted equipment
Recommed Products
Packing & Delivery
Packing:100/Pcs in one Carton box or OEM.
Shipment:by Sea,by Air,by Express:DHL/UPS/Fedex/EMS/TNT etc
Deliverty: 3-5 days after payment dowm,According to ur order
quantity.

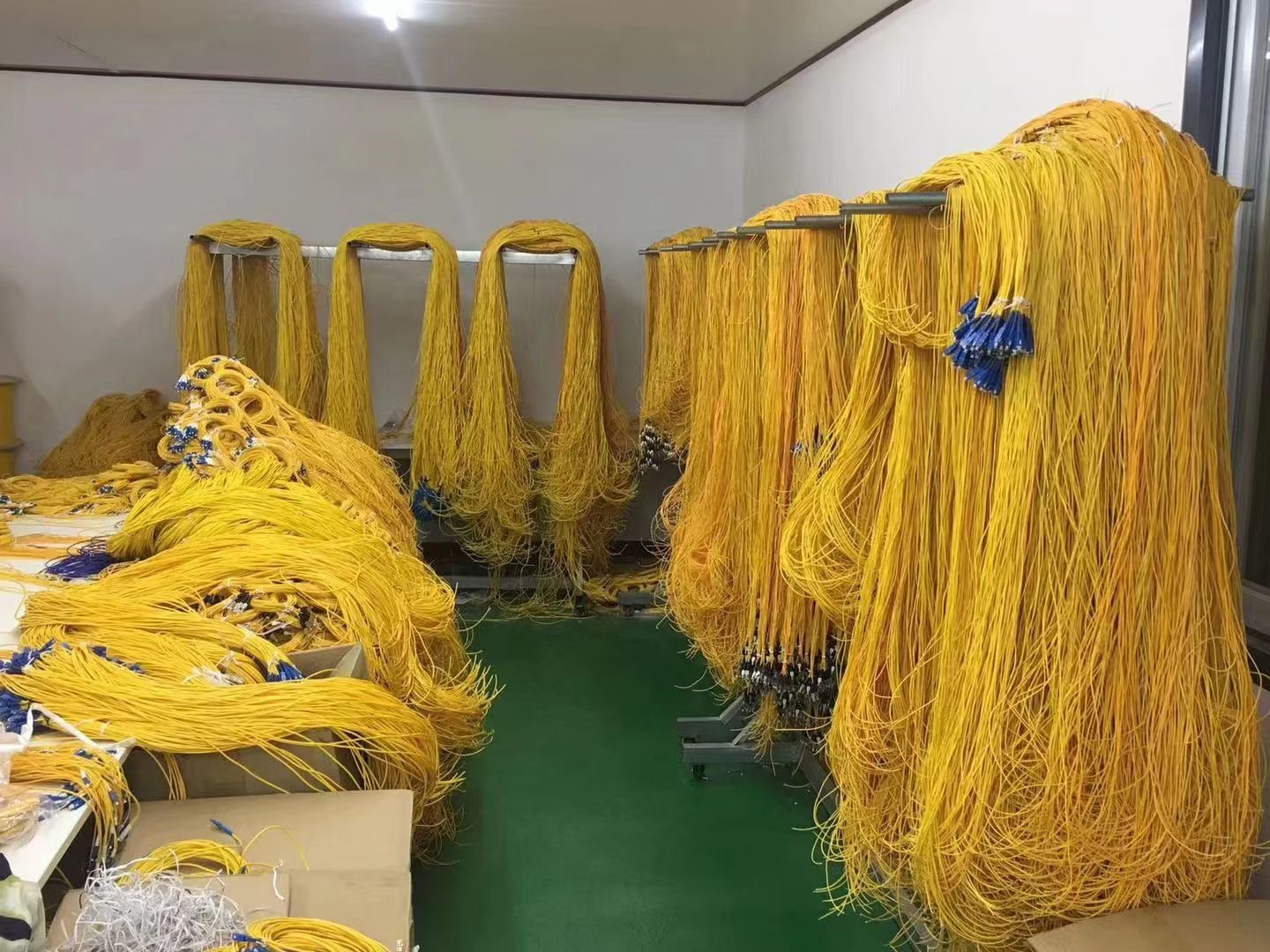

Factory Pictures
