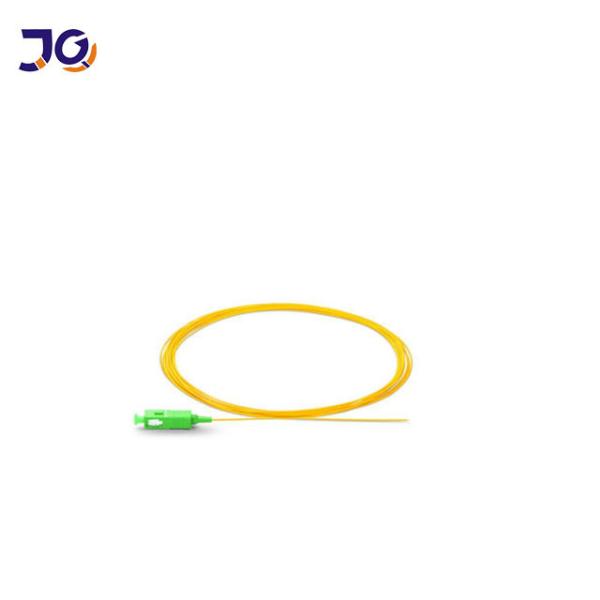

0.9mm 2.0mm 3.0mm SM G652D Pigtail With Connecter Sc Apc Lc Upc
Fiber Optic Pigtail
Product Description
Fiber Optic Pigtail is important of optical network.they have same
or different connectors which are installed on the end of fiber
optic cable. The Fiber Optic Patch Cord series comes with a
comprehensive collection of lengths and connectors to fulfill your
demand for the deployment.4, 6, 8, 12, 24, 48 Single mode or multi mode fibers optional.
Features
SC, LC, FC, MU, ST, MT-RJ, E2000 connector available.
Superior qualified standard PC, APC, UPC, SPC polishing.
CSingle mode or multi mode,able size: Φ 0.9mm, Φ2.0mm, Φ3.0mm
Single mode (9125) or multi mode (50/125 or 62.5/125) fiber
available.
Available in fiber bunch, ribbon fan-out, pigtail available.
Simplex and duplex connector available.
Applicable connector: FC, SC, ST, LC…
Cable material: PVC or LSZH.OM1, OM2 or OM3 optional
Good exchange ability and good durability.
Customized specifications are welcomed.
Application
Fiber Optic telecommunications
Lan(Local Area network)
FTTH (Fiber to the home)
CATV & CCTV
High Speed transmission systems
Fiber optic sensing
Optical Characteristics
| Item | SM(Single Mode) | MM(Multimode) |
| Fiber Cable Type | G652D/G655/G657A1/G657A2 | OM1 | oM2/OM3/OM4 |
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 |
| Cable oD (mm) | 0.9/1.6/1.8/2.0/2.4/3.0 |
| Endface Type | PC | UPC | APC | UPC | UPC |
| Typical Insertion Loss (dB) | <0.2 | <0.15 | <0.2 | <0.1 | <0.1 |
| Return Loss (dB) | >45 | >50 | >60 | / |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 |
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 |
| nti-tensile Force (N) | >70 |
| remperature Range (c) | -40r+80 |
Detailed Image
FAQ
1.Are you the real manufacturer?
Yes. We are the real manufacturer with 10 years’ history.
2.Can you accept small order?
Yes, small order is available .We support new project of our
customers as we know business is always from small order.
3.What is your warranty period?
25 years for fiber optic cable
4.What is your delivery time?
Usually within 3-5 working days
5.What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 6,000,000
KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
6.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
