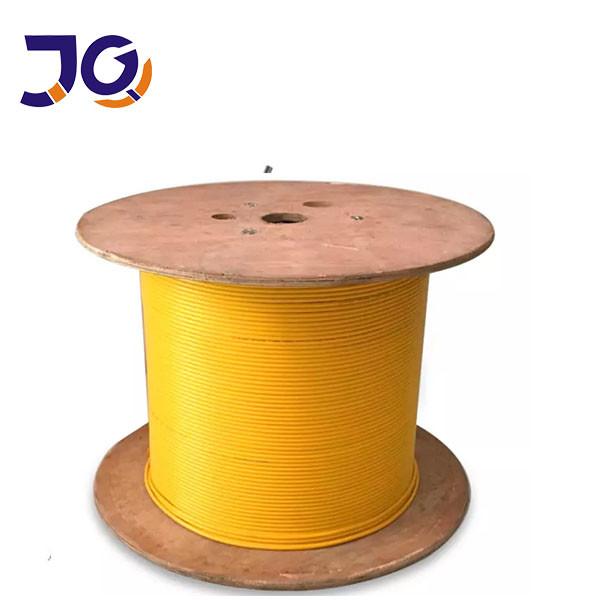

Ftth GJFJV Tight Buffer Single Mode 24 Core G652D Fibre Optical
Cable
GJFJV indoor fiber optic cable is made by evenly applying strands
of Aramid yarns as the strength member over 900μm or 600μm tight
buffer fibers, then completed with PVC(LSZH)jacket.
Features
1.Good uniformity of the outer diameter of tight buffer fiber and
excellent strippability.
2.Good performance of flame-retardant
3.Steady performance both in extremely high and low temperature.
4.Excellent geometrical dimension of the fiber.
| Technical Parameters |
Cable
Count | Outside
Diameter | Tight buffer
Diameter | Weight | Minimum
allowable Tensile
Strength
(N) | minimum allowable
Crush Load
(N/100mm) | Minimum Bending
Radius
(MM) | Storage
temperature |
| (MM) | (MM) | (KG) | short term | long term | short term | long term | short term | long term | (℃) |
| 2 | 3 | 0.9 | 15 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 4 | 5 | 0.9 | 22 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 6 | 5 | 0.9 | 23 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 8 | 5.5 | 0.9 | 28 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 12 | 6 | 0.9 | 38 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 16 | 7.2 | 0.9 | 42 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 24 | 8.3 | 0.9 | 58 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 48 | 10 | 0.9 | 96 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60
|
FAQ
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
A:The MOQ of Fiber Optic cable is 2km.
3.Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our
customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It
depends on the order quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before
shipment.
