    Factory Price Good Quality Outdoor Underground Direct Buried Armoured Fiber Optic Cable GYTS53

    Ask Lasest Price
    Brand Name : Jiqian
    Model Number : GYTA53/GYTS53
    Certification : ISO9001 ROHS CE-EMC FCC SDOC
    Payment Terms : L/C, T/T, Western Union,Alipay
    Delivery Time : 3-5 days,it depends on order quantity
    • Product Details
    • Company Profile

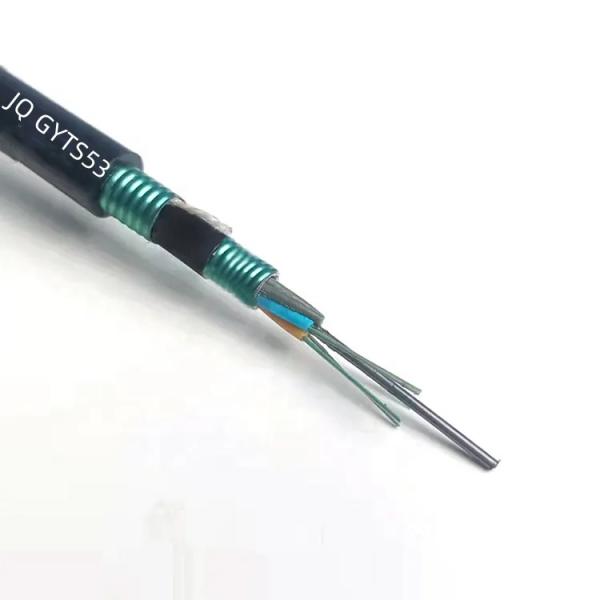

    Factory Price Good Quality Outdoor Underground Direct Buried Armoured Fiber Optic Cable GYTS53

    Factory Price Good Quality Outdoor Underground Direct Buried Armoured Fiber Optic Cable GYTS53

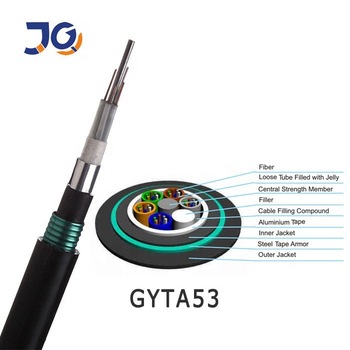

    1.The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound.

    2.A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member.
    3.Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.
    4.An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress.
    5.Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

    Features

    Loose tube gel-filled construction for superiorfiber protection.

    Double jacket single armored(GYTY53) and Double jacket double armored

    (GYTA53) for rodent pr.otection and direct burial.

    UV and moisture-resistant design


    Applications

    Directburied, DuctorUnderground conduits.

    Backbone.

    Technical data
    No. of cable
    12
    24
    48
    Fiber Model
    G.652D
    Design
    (StrengthMember+Tube&Filler)
    1+5
    Central Strength Member
    Material
    Steel Wire
    Diameter(±0.5)mm
    1.5
    Loose Tube
    Material
    PBT
    Diameter(±0.06)mm
    1.8
    1.8
    2.1
    Thickness(±0.03)mm
    0.32
    0.32
    0.35
    The Max.Core NO./Tube
    6
    6
    12
    Filler Rope
    Material
    LDPE
    Diameter(±0.06)mm
    1.8
    1.8
    2.1
    NO.
    3
    1
    1
    Moisture Barrier
    Material
    Polymer Coated Aluminum Tape
    Thickness(±0.03)mm
    0.20
    Inner
    Sheath
    Material
    MDPE
    Thickness(±0.2)mm
    0.9
    Armoring
    Material
    Polymer Coated Steel Tape
    Thickness(±0.2)mm
    0.25
    Water Bloaking Layer
    Material
    Filling Compound
    Outer Sheath
    Material
    MDPE
    Thickness(±0.2)mm
    1.8
    Cable Diameter(±0.5)mm
    13.2
    13.2
    13.8
    Cable Weight(±10)kg/km
    152
    155
    165
    Attenuation
    1310nm
    0.35dB/ km
    1550nm
    0.21dB/ km
    Min. bending radius
    Without Tension
    12.5×Cable-φ
    Under Maximum Tension
    25.0×Cable-φ
    Temperature range
    (℃)
    Installation
    -20~+60
    Transport&Storage
    -40~+70
    Operation
    -40~+70
