36 Core G652D Fiber Aluminum Stranded Armored Outdoor Single Mode Fiber Optic Cable
Product Description

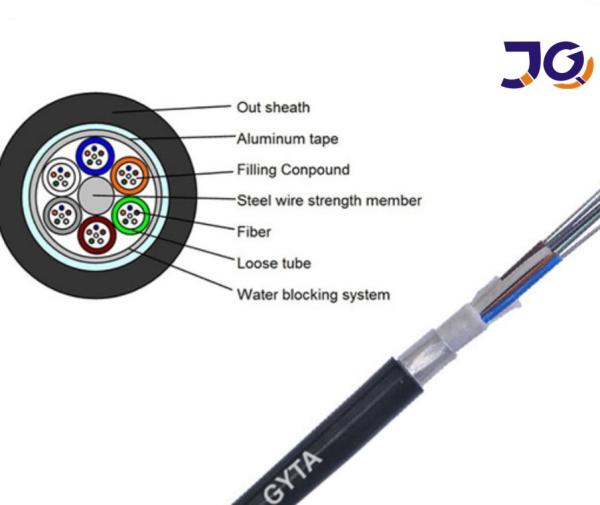

The 250μm fiber is positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Which is stranded loose tube fiber optic cable with compact structure, the cable jacket is made of polyethylene, High strength loose tube that is hydrolysis resistant; Cable filling materials ensure high reliability,Aluminum tape makes the cable crush resistant and moisture proof. So,the GYTA has a very good watertight performance.
Features
Has good mechanical properties and temperature characteristics.
Loose tube material itself has good water resistance and high strength.
The tube is filled with a special grease to protect the fiber.
The specially designed compact cable structure effectively prevents the casing from retracting.
PE jacket has excellent UV radiation resistance,ensure the waterproof performance of the cable.
Single wire center reinforcement core.The loose tube is filled with a special waterproof compound.
Full core filling.Plastic coated aluminum tape (APL) moisture barrier
Application
Used for duct or aerial applications.
Used for long communication and LANS installation
Suitable for the situation of high requirements of moisture resistance.
Optical Characteristics
| Items | Unit | Specification |
| G652D |
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 |
| Cladding Diameter | um | 124.8±0.7 |
| Cladding Non-Circularity | % | ≤0.7 |
| Core-Cladding Concentricity Error | um | ≤0.5 |
| Coating Diameter | um | 245±5 |
| Coating Non-Circularity | % | ≤6.0 |
| Cladding-Coating Concentricity Error | um | ≤12 |
| Cable Cutoff Wavelength | nm | acc≤1260 |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 |
| Fiber Count (Core) | Out sheath Diameter (mm) | Weight (KG/KM) | Min.allowable tensile strength(N) | Min.allowable crush load(N/100m) | Min. bending radius (mm) | Suitable Temperature (c) |
| Short term | Long term | Short term | Long term | short term | Long term | |
| 24 | 10.5 | 105 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40~+60 |
| 36 | 10.5 | 105 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40~+60 |
| 42 | 10.5 | 105 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40~+60 |
| 48 | 12.0 | 150 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40～+60 |
| 60 | 12.0 | 150 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40~+60 |
| 72 | 12.0 | 150 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40~+60 |
| 96 | 12.5 | 165 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40~+60 |
| 144 | 14.0 | 180 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40~+60 |
Product show
Packing and Delivery
FAQ
1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!
2.About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.
3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .
5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
