Double Jacket G652D 100m Span 96 Core ADSS Fiber Optic Cable

Ask Lasest Price
Brand Name :	JQ/OEM
Model Number :	ADSS-24B1
Certification :	ISO9001
Payment Terms :	L/C, T/T, Western Union
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

Double Jacket G652D 100m Span 96 Core ADSS Fiber Optic Cable

100m Span 12 Core Adss Cable Outdoor Single Mode Fiber Optic Cable

Product Description

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes arefilled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

Features

Crush resistance and flexibility,The following measures are taken to ensure the cable watertight

100% cable core filling,Loose tube filling compound

Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Single Fiber Reinforced Plastic as the central strength member

Optical Characteristics

Items		Unit	Specification
Items		Unit	G652D
Mode Field Diameter	1310nm	um	9.2±0.4
Mode Field Diameter	1550nm	um	10.4±0.5
Cladding Diameter		um	124.8±0.7
Cladding Non-Circularity		%	≤0.7
Core-Cladding Concentricity Error		um	≤0.5
Coating Diameter		um	245±5
Coating Non-Circularity		%	≤6.0
Cladding-Coating Concentricity Error		um	≤12
Cable Cutoff Wavelength		nm	acc≤1260
Attenuation(max.)	1310nm	dB/km	≤0.36
Attenuation(max.)	1550nm	dBkm	≤0.22

Technical Data

Span : 100m	under 110kv	12core
structural parameter	Central strength components : FRP	Diameter : 1.5mm
	Loose tube (jelly filled )	Outer diameter :1.8mm
	Inner sheath PE	Thickness : 0.9mm
	outer sheath PE	Thickness :1.8mm
Technical parameter	outer diameter of Cable	9.5mm
	cable cross-sectional area	95.03 mm2
	Fiber model	G.652D
	Weight of cable	85kg/km
	Rated tensile strength (RTS)	10 kn
	Minmum allowed tension(MAT)	4kn
	EDS	3.2kn
	Young's modulus	7.8 kn/mm2
	Coefficient of thermal expansion	1.810-6/°C
	Cruss resistance	Long term :1100 n/100mm
	Cruss resistance	short term:2200 n/100mm
	Permission bent radius	Long term (when running) 220 mm
	Permission bent radius	Short term (when laying) 360 mm

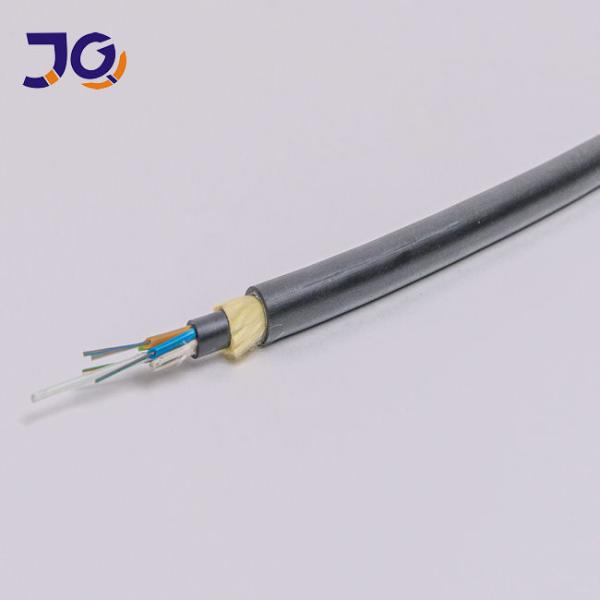

Product Picture

Application

Suitable for Aerial Laying method

Storage / Operating Temperature: -40℃~+70℃

Package Detail

Export Wooden drum,Normal shipping length of the cable will be 2km or 3km.

Other length is also available if required by buyer.

Mark:Usually we only attach the test report on the packaging, but your request is available too.

For example:

A.Company Name
B.Gross/Net Weight
C.Fiber Type
D.Cable Length

Double Jacket G652D 100m Span 96 Core ADSS Fiber Optic Cable

FAQ

1.Are you tradning company or manufacturer?

We are the manufacturer with 10 years' experience ,we are specialized in research,development and production

for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?

We will delivery before tested every fibers when finished production.

After price confirmation, you can require for free samples to check our quality.

3.Can you accept small order?

Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?

Usually about 3-7days working days,it mainly depend on order quantity.

But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?

Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
