ADSS Supply Outdoor Ftth Cable Aramid Yarn 12 Core Single Mode
Outdoor Fiber Optic Cable

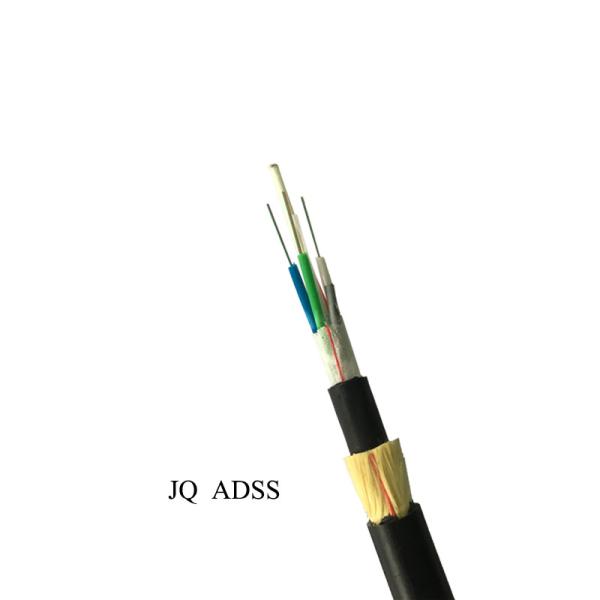

Cable structure :
ADSS cable is loose tube stranded. Fibers, 250μm, are positioned
into a loose tube made of high modulus plastics. The tubes are
filled with a water-resistant filling compound. The tubes (and
fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a
non-metallic central strength member into a compact and circular
cable core. After the cable core is filled with filling compound.
it is covered with thin PE inner sheath. After stranded layer of
aramid yarns are applied over the inner sheath as strength member,
the cable is completed with PE or AT (anti-tracking) outer sheath.
Applications:
Widely used in self support aerial / overhead.
Features:
Can be installed without shutting off the power.
Excellent mechanical performance.
Good performance of tensile strength and temperature.
Light weight and small diameter reducing the load caused by
ice/wind, as well as the load on towers
and backprops.
Long life span time over 30 years.
Cable Parametres:
| Model No. | ADSS |
| Fiber count | 2-144 hilos |
| Fiber type | SM G652D |
| Central Strangth member | FRP |
| Loose tube | PBT |
| Type of filling compound | Jelly |
| Water-blocking system | Water blocking tape |
| Strength member | Kevlar yarn |
| Inner sheath | PE |
| Outer sheath | PE/AT |
| Applicantion | Overhead;Ariel for telecommunication |
Optical Fiber Performance
| Fiber Type | G.652D,125.0+-1.0μm |
| Mode Field Diameter | 9.2+-0.2μm at 1310 nm |
| Cladding Diameter | 125+-1μm |
| Cladding Non-Circularity | <=1% |
| Coating Diameter | 245+-10μm |
| Attenuation Coefficient | <=0.38dB/km at 1310nm,<=0.22dB/km at 1550nm |
| Chromatic Dispersion | <=3.5ps/nm/km at1285-1330nm,<=18ps/nm/km at 1550nm |
| Zero Disperson Wavelength | 1300-1322nm |
| PMD Coefficient | <=0.2ps/√km
|
01
Class A Fiber
The fiber optic cable adopts the well-known brand A-class core,
which has high transmission rate, long distance and small
attenuation. The fiber is made of the same material and uniform in
thickness.
02
Reinforced Structure
Double PE jacket Corrugated steel tape longitudinally Center
strength member Water-blocking gel filled Compressive,
moisture-proof, waterproof, anti-freeze, anti-mouse bite
03
Environmental Protection Materials
The double sheath is made of polyethylene environmentally friendly
material, which feels like wax, has excellent low temperature
resistance, good chemical stability, and can withstand the erosion
of most acid and alkali. It has small water absorption and
excellent electrical insulation.
Features:
Can be installed without shutting off the power.
Excellent mechanical performance.
Good performance of tensile strength and temperature.
Light weight and small diameter reducing the load caused by
ice/wind, as well as the load on towers
and backprops.
Long life span time over 30 years.

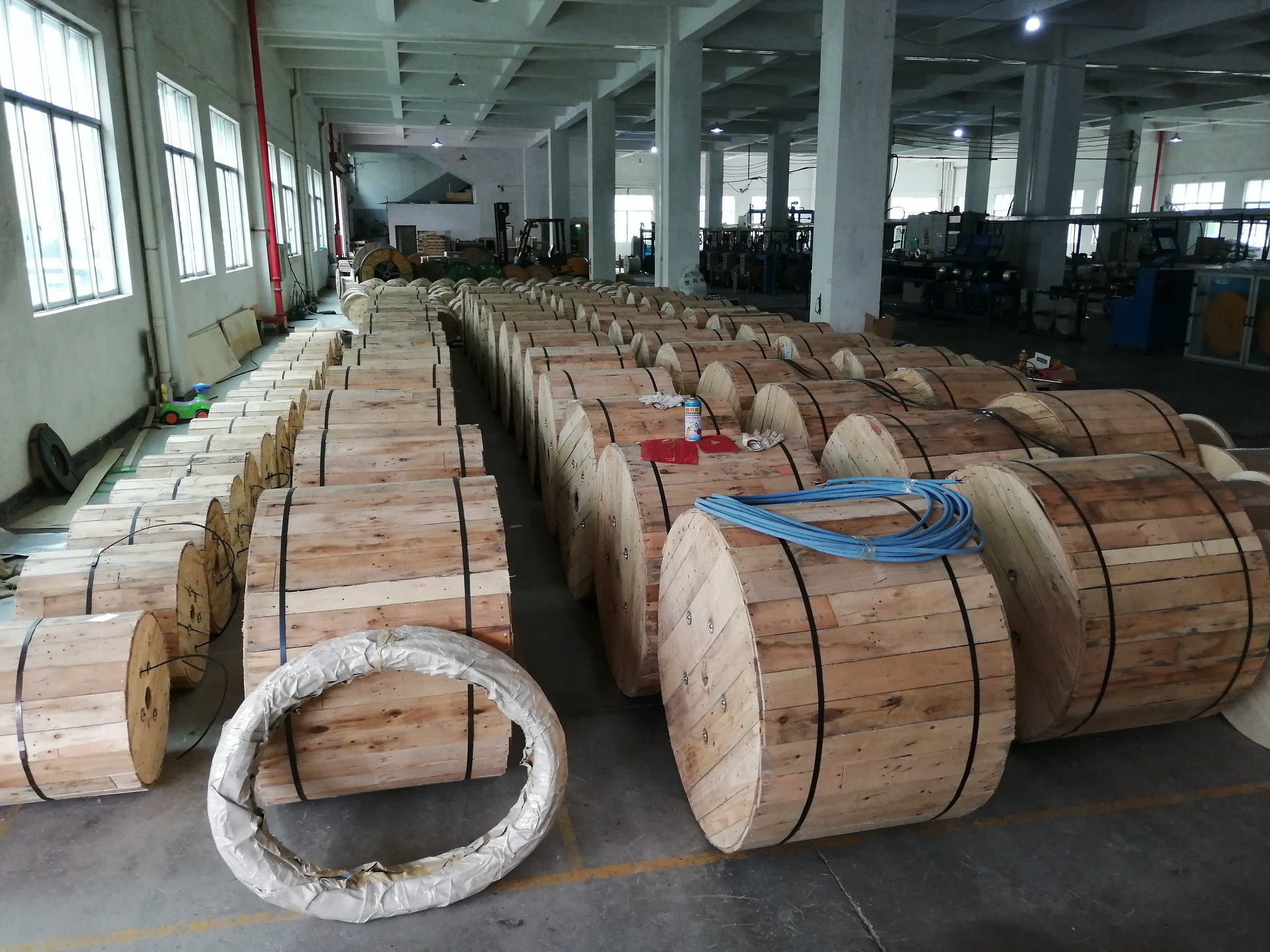

Guangzhou jiqian fiber optical cable co., LTD is located in
guangzhou city, guangdong province mingying west 2 road industrial
zone, xintang town, is a collection of scientific research,
development, production, sales for the integration of large-scale
specialization of high-tech joint-stock enterprise, specializing in
the production of various specifications of 2-288 core cable.
FAQ:
1. Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us!
2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is
available
3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express
freight.
4.What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.
5.Delivery time?
Generally 3-7 working days, also it is according to qty.
6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.
