48 Core SM G652D Single Sheath ADSS Fiber Optic Cable

Ask Lasest Price
Brand Name :	Jiqian
Model Number :	ADSS -48B1
Certification :	ISO 9001
Payment Terms :	L/C, T/T,Alipay
Supply Ability :	4500km per month
Delivery Time :	3-5 days

Add to Cart

Product Details
Company Profile

48 Core SM G652D Single Sheath ADSS Fiber Optic Cable

ADSS 48 core SM G652D single sheath all dielectric aerial fiber optic cable

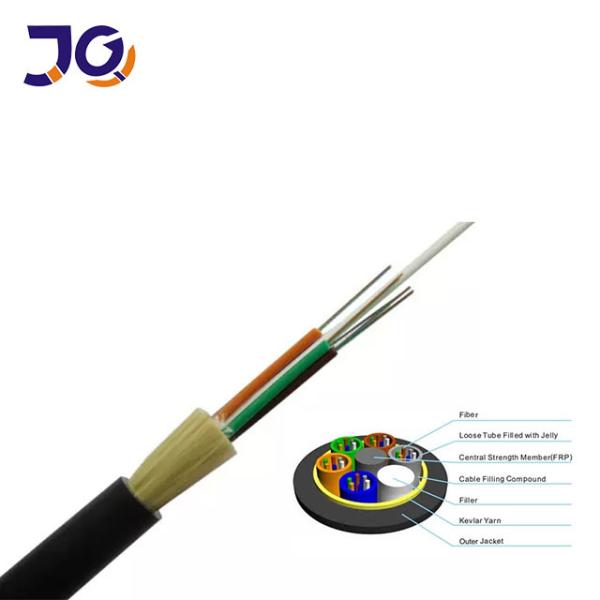

ADSS is one kind of loose tube stranded cable. 250μm's fibers are positioned in the loose tube which is made of high modulus plastics. The tubes are filled with a water-resistant filling compound. And we use the FRP(fiber reinforced plastic) as the central strength member. The loose tube with the fibers and the FRP are stranded together first, and then we use the PE sheath and the aramid yarn to protect the fibers. Because of the structure, ADSS cable have a very excellent performance during the storage, oprating and using.

48 Core SM G652D Single Sheath ADSS Fiber Optic Cable

TECHNICAL DATA

No. of cable			48
Fiber Model			G652D
Design (StrengthMember+Tube&Filler)			1+5
Central Strength Member	Material		FRP
Loose Tube	Diameter(±0.05)mm		1.5
	Material		PBT
	Diameter(±0.06)mm		1.8
	Thickness(±0.03)mm		0.32
	The Max.Core NO./Tube		6
Filler rope	Material		PE
	Diameter(±0.06)mm		1.8
	NO.		3
Water Blocking Layer			Flooding Compound
Additional Strength Member			Kevlar Yarn
Outer Sheath	Material		MDPE
	Thickness(±0.1)mm		1.8
	Color		Black
Cable Diameter(±0.2)mm			9.2
Cable Weight(±5)kg/km			67
Cable breaking strength(RTS)			5.8Kn
Working Tension (MAT)			2.2Kn
Wind velocity			30m/s
Icing			5mm
Span			80m
Crush Resistance		Short Term	2200(N/100mm)
		Long Term	1100(N/100mm)
