Simplex Duplex SC/UPC SC/APC SM Fiber Optic Adapter

Simplex Duplex SC/UPC SC/APC SM Fiber Optic Adapter

Ordering Information
Such as:SC/UPC-SC/UPC-SM-SX

Step 1: Connector type: FC, SC, LC, ST, MTRJ, MU, MPO
Step 2: Ferrule End-face: PC, UPC, APC
Step 3: Type: Single-mode, Multimode (MM, OM3, OM4)
Step 4: Mode: Simplex, Duplex
Step 5: Sleeve: Ceramic, Bronze
Step 6: Housing material: Plastic, Metal

Specification

Type	SC/FC/ST/LC/MU/MTRJ/MPO
Insertion Loss(dB)	SM≤0.2dB, MM≤0.3dB
Repeatability(dB)	≤0.1dB
Mechanism Durability(500 cycles, dB)	≤0.2dB
Temperature Range	-40°C-+85°C
Material of sleeve	Zirconia or Bronze

Reliability testing

Item	Test Name	Additional Insertion Loss	Additional Return Loss
1	Mechanical durability	<0.2dB	<5dB
2	Repeatability	<0.2dB	<5dB
3	Lock strength	<0.2dB	<5dB
4	Low strength	<0.2dB	<5dB
5	High temperature	<0.2dB	<5dB
6	Steaming	<0.2dB	<5dB
7	Temperature cycle	<0.2dB	<5dB
8	Vibration	<0.2dB	<5dB
9	Drop	<0.2dB	<5dB

Feature

Low insertional loss and back reflection loss

Type: SC/UPC,SC/APC

Mode: Singlemode

Fiber core: Simplex, Duplex

Structure: with flange, without flange

Sleeve: Ceramic sleeve

Housing: Plastic housing

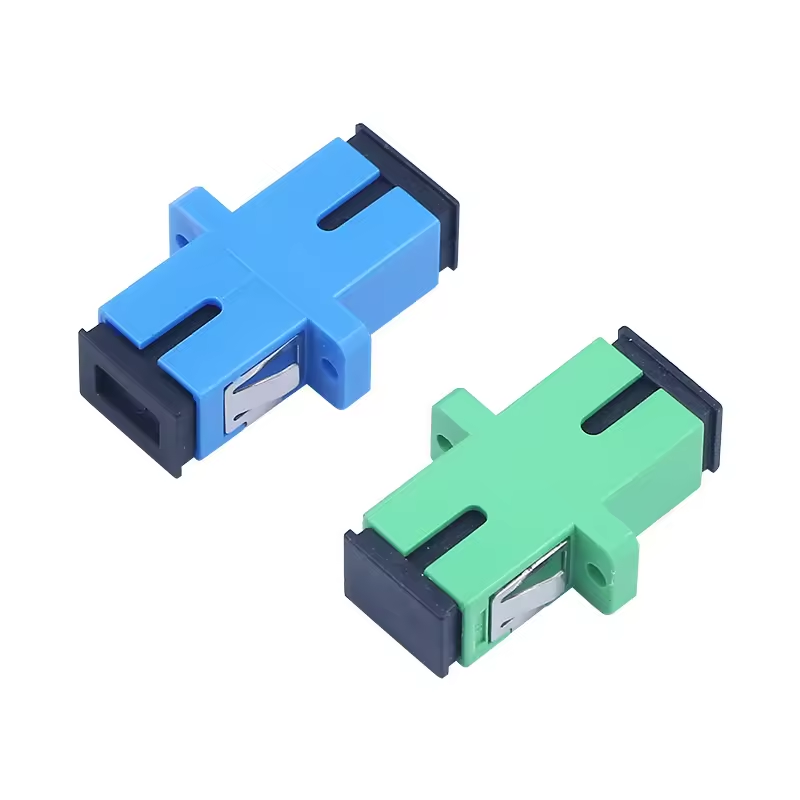

Adapter Picture
Packing&Delivery
25pcs per PE bag with stick label (we could add customer's logo in
the label.)
Why choose us :
1.Competitive price
2. Fast delivery
3.Free sample provided
4.Longtime warranty
5.Reliable quality, OEM service available
6. Professional product and technical support
7.Prompt answer for any question or inquiry
8.Value-added service: except good products, we can provide good
services on logistic and other help you may need
We Support OEM and Customize products

Welcome to your inquiry! Welcome to visit our factory!
Contact me at +86 18122384553 to get free sample.
