Single Sheath G652D Span 100m Overhead Optical Fiber Cable

Ask Lasest Price
Brand Name :	Jiqian
Model Number :	ADSS -24B1
Certification :	ISO 9001
Price :	288
Payment Terms :	L/C, T/T,Alipay
Supply Ability :	4500km per month
Delivery Time :	3-5 days

Add to Cart

Product Details
Company Profile

Single Sheath G652D Span 100m Overhead Optical Fiber Cable

ADSS Single Sheath Overhead Span 100m Fiber Optic Cable

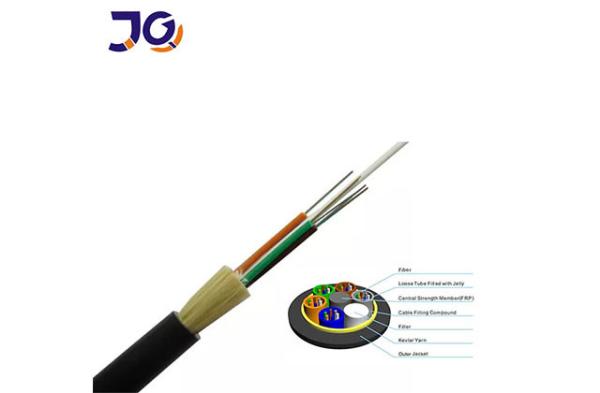

ADSS is one kind of loose tube stranded cable. 250μm's fibers are positioned in the loose tube which is made of high modulus plastics. The tubes are filled with a water-resistant filling compound. And we use the FRP(fiber reinforced plastic) as the central strength member. The loose tube with the fibers and the FRP are stranded together first, and then we use the PE sheath and the aramid yarn to protect the fibers. Because of the structure, ADSS cable have a very excellent performance during the storage, oprating and using.

Single Sheath G652D Span 100m Overhead Optical Fiber Cable

Structure and Technical Specifications ADSS-SJ(50-150M)

Ref. Outer Diameter (mm)	Ref. Weight (kg/km)		Rec. Daily Max. Working Tension (kN)	Max Allowable Working Tension (kN)	Break Strength (kN)	Strength Member CSA (mm2)	Modulus of Elasticity CSA (kN/mm2)	Heat Expansion Coefficient (x10- 6/K)	Suitable Span Meter
Ref. Outer Diameter (mm)	PE Jacket	AT Jacket	Rec. Daily Max. Working Tension (kN)	Max Allowable Working Tension (kN)	Break Strength (kN)	Strength Member CSA (mm2)	Modulus of Elasticity CSA (kN/mm2)	Heat Expansion Coefficient (x10- 6/K)	A	B	C	D
11	110	120	1.0	2.5	8	3.0	6.6	2.1	120	80	100	80
11.5	115	125	1.5	4	10	4.5	7.3	1.8	180	120	150	120
12	120	130	2.5	6	15	7.5	8.3	1.5	250	150	290	150

Structure and Technical Specifications ADSS-DJ(50-750M)

Ref. Outer Diameter (mm)	Ref. Weight (kg/km)		Rec. Daily Max. Working Tension (kN)	Max Allowable Working Tension (kN)	Break Strength (kN)	Strength Member CSA (mm2)	Modulus of Elasticity CSA (kN/mm2)	Heat Expansion Coefficient (x10- 6/K)	Suitable Span Meter
Ref. Outer Diameter (mm)	PE Jacket	AT Jacket	Rec. Daily Max. Working Tension (kN)	Max Allowable Working Tension (kN)	Break Strength (kN)	Strength Member CSA (mm2)	Modulus of Elasticity CSA (kN/mm2)	Heat Expansion Coefficient (x10- 6/K)	A	B	C	D
12.5	125	136	1.5	4	10	4.6	7.6	1.8	160	100	140	100
13.0	132	142	2.25	6	15	7.6	8.3	1.5	230	150	200	150
13.3	137	148	3.0	8	20	10.35	9.45	1.3	300	200	290	200
13.6	145	156	3.6	10	24	13.8	10.8	1.2	370	250	350	250
13.8	147	159	4.5	12	30	14.3	11.8	1.0	420	280	400	280
14.5	164	177	5.4	15	36	18.4	13.6	0.9	480	320	460	320
14.9	171	185	6.75	18	45	22.0	16.4	0.6	570	380	550	380
15.1	179	193	7.95	22	53	26.4	18.0	0.3	670	460	650	460
15.5	190	204	9.0	26	60	32.2	19.1	0.1	750	530	750	510

FAQ:

1,Q:Are you a factory or trade company?
A:We are a factory

2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 1km.

3.Q:Which brand of fiber do you use?

A:Corning,YOFC,Fiberhome,etc

4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.

5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

6.Can you supply customized products and logo?

A:Yes. We supply OEM service.

7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% in advance and 70% before shipment.
