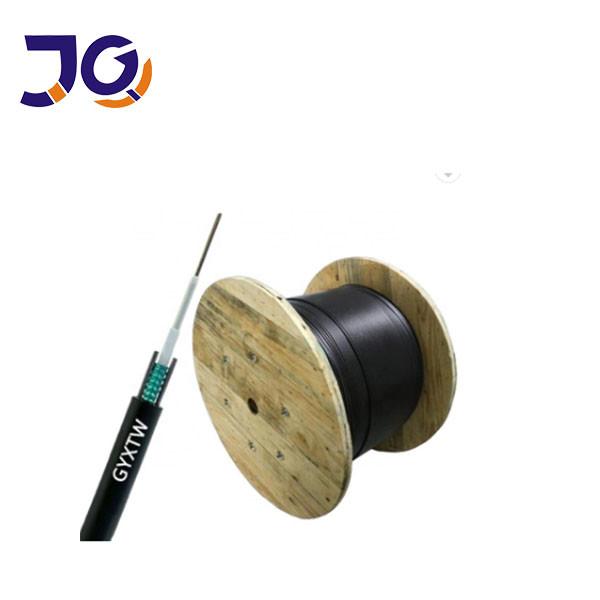

Outdoor Armoured Single Mode 4 6 8 12 Cores Fiber Optic Cable
The structure of GYXTW cable is 250µm optical fiber ribbon is
inserted into a loose tube of high modulus material. The loose tube
is filled with gel filling compound. The loose tube is covered by a
PSP longitudinal.Two parallel steel wires are placed on both
sides,and then the cable is completed with PE outer sheath.
Cable structure and parameter
Fiber
count | Tube
diameter | Steel wire diameter | Sheath thickness
(nominal*) | Overall diameter
(nominal**) | Weight
(approx.) |
| mm | mm | mm | mm | kg/km |
| 6 | 2.5 | 1.0 | 2.3 | 8.4 | 73 |
| 12 | 3.0 | 1.0 | 2.3 | 8.9 | 81 |
| Item | Specification |
| Fiber type | Single mode |
| Fiber material | Doped silica |
Attenuation coefficient
@ 1310 nm
@ 1383 nm
@ 1550 nm
@ 1625 nm |
≤ 0.36 dB/km
≤0.35 dB/km
≤0.22 dB/km
≤0.25 dB/km |
| Point discontinuity | ≤ 0.05 dB |
| Cable cut-off wavelength | ≤ 1260 nm |
| Zero-dispersion wavelength | 1300 ~ 1324 nm |
| Zero-dispersion slope | ≤0.092 ps/(nm².km) |
Chromatic dispersion
@ 1288 ~ 1339 nm
@ 1271 ~ 1360 nm
@ 1550 nm
@ 1625 nm |
≤3.5 ps/(nm. km)
≤5.3 ps/(nm. km)
≤18 ps/(nm. km)
≤22 ps/(nm. km) |
| PMD | ≤0.2 ps/km½ |
| Mode field diameter @ 1310 nm | (8.6~9.5)±0.6 um |
| Core / Clad concentricity error | ≤0.6 um |
| Cladding diameter | 125.0 ± 1 um |
| Cladding non-circularity | ≤1.0% |
| Primary coating diameter | 245 ± 10 um |
| Proof test level | 100 kpsi (=0.69 Gpa), 1% |
Temperature dependence
0℃~ +70℃ @ 1310 & 1550nm | ≤ 0.1 dB/km |
