GYTA53 GYFTY53 96Core outdoor Aluminum tape double sheath armored Fiber Optic Cable

Ask Lasest Price
Brand Name :	jiqian
Model Number :	GYFTY53/GYTA53
Certification :	ISO 9001 CE LOHS
Payment Terms :	Western Union, MoneyGram, T/T, L/C
Supply Ability :	100km per 2 day
Delivery Time :	2-4day

Add to Cart

Product Details
Company Profile

GYTA53 GYFTY53 96Core outdoor Aluminum tape double sheath armored Fiber Optic Cable

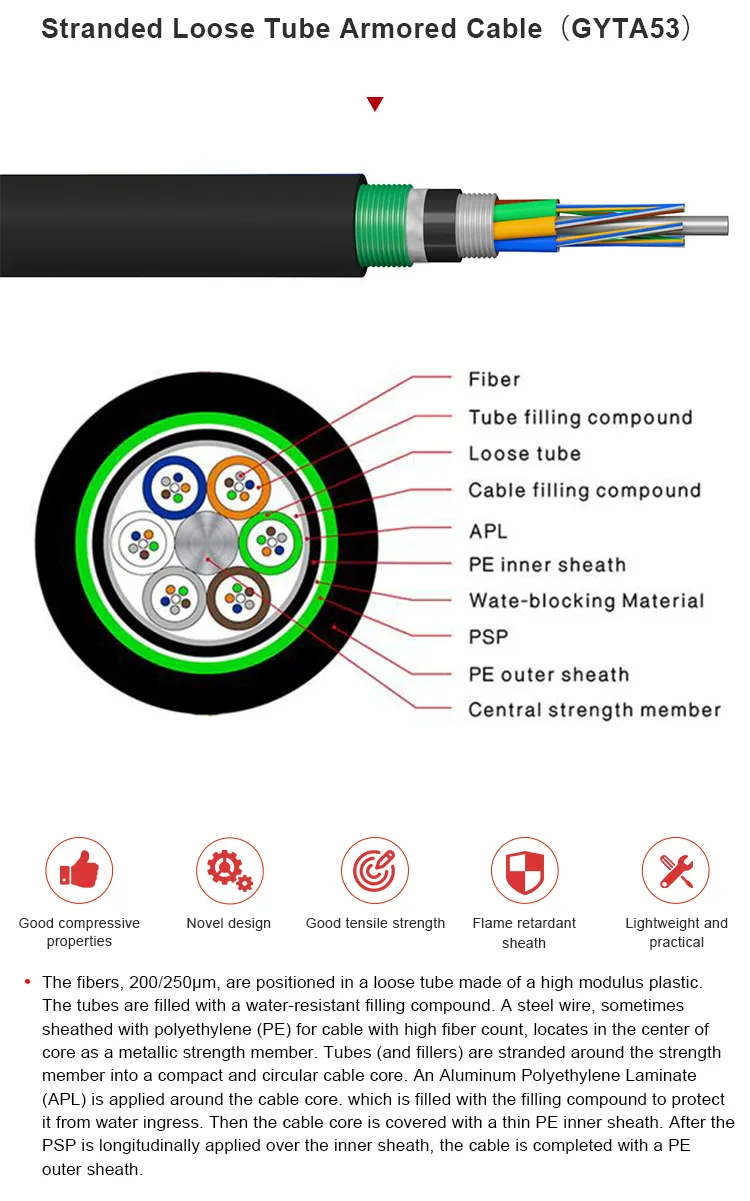

Double Jacket Stranded Armoured Steel Wire Member outdoor Fiber Optic Cable GYTY53/GYTA53The UArmored Loose Tube Double Jacket/Double Armor fiber optic cables are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including direct buried. With fiber counts up to 288 and S-Z strand designs.

Application:

1. Direct burial

2. Underground

3. Backbone Internet

Cable performance:

Item		Parameters
Loose tube	Material	PBT
Loose tube	Color	All colors display
Filler	Material	PE
Filler	Color	Black
CSM	Material	FRP
Inner jacket	Material	MDPE
Inner jacket	Color	Black
Outer armoured	Material	Plastic coated steel strip
Outer jacket	Material	MDPE
Outer jacket	Color	Black
Min. bending radius	Static	12.5 times cable diameter
Min. bending radius	Dynamic	25 times cable diameter
Repeating bending	Load:150N;number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage.
Tensile performance	Short term	1500N
Crush	Short term	3000N/100mm
Torsion	Load:150N; number of cycles:10; twist angle:±180° No obvious addition attenuation, no fiber break and no cable damage.

Dimensions of cable constructions:

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	diameter/pad diameter (mm)	Thickness of Inner jacket (mm)	Thickness of outer jacket (mm)	Cable diameter (mm)	Cable weight (kg/km)
12	1+6	6	1.8 ±0.1	2.2 /2.2	0.9±0.1	1.6±0.1	12.4 ±0.5	138
24	1+6	6	1.8 ±0.1	2.2 /2.2	0.9±0.1	1.6±0.1	12.4 ±0.5	140
48	1+6	12	2.0±0.1	2.3 /2.3	0.9±0.1	1.6±0.1	12.9 ±0.5	152
96	1+8	12	2.0±0.1	2.6/3.5	0.9±0.1	1.6±0.1	14.1 ±0.5	182
144	1+12	12	2.0±0.1	3.0 /6.3	0.9±0.1	1.6±0.1	16.9 ±0.5	256

Packing details:

Cable type	Drum
Cable type	Height (mm)	Width (mm)	Inner diameter (mm)	Length (km)	Drum type
GYFTY53-12	950	760	400	2	Wooden drum
GYFTY53-24	950	760	400	2	Wooden drum
GYFTY53-48	1000	760	400	2	Wooden drum
GYFTY53-96	1150	760	450	2	Wooden drum
GYFTY53-144	1300	760	500	2	Wooden drum

COMPANY PROFILE

Guangzhou Jiqian fiber optical cable co., LTD is a professional manufacturer of fiber optic cable,it provide a wide range of outdoor/indoor fiber optic cable,ftth drop cable,fiber patch cord with ISO9001/FCC/ROHS/CE International certifications,it's located in Guangzhou city,China We OEM or design any structure of fiber optic cable for you.

1. Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is available

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.

5.Delivery time?
Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.
